6.1.3.6 Connection Blade 8Gb FC Switch 18/8

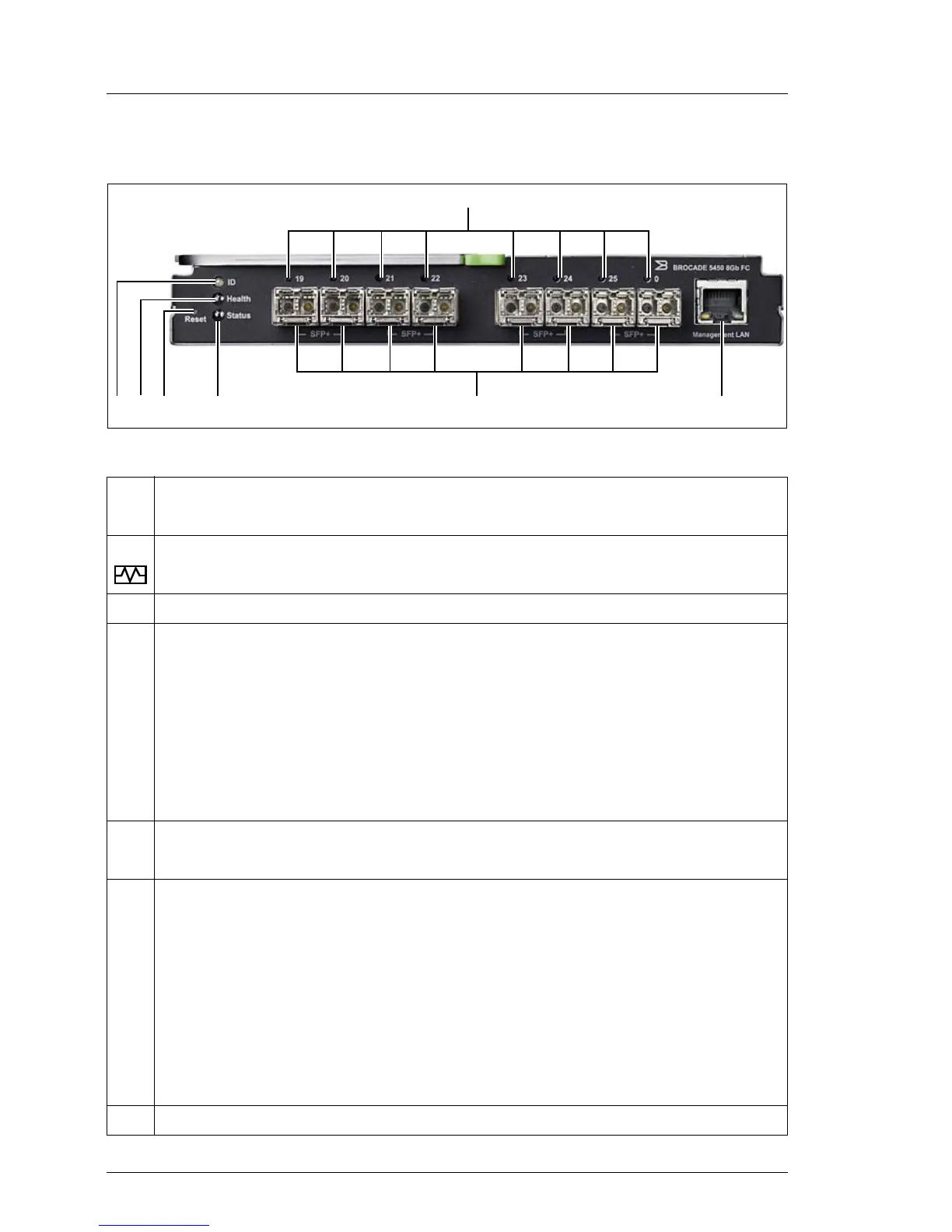

Figure 27: 8-Gb FC Switch Connection Blade 18/8
1
ID
ID indicator (blue)
Lit: ID indicator was activated via the management blade
2 Health indicator (green/orange)
Controlled by the management blade
3 Reset button
4 Status indicator (green/orange)
Dark: Connection blade is not running or is defective
Lights up green: Connection blade is running
Lights up orange: Boot phase; one or more ports are offline; restarting connection
Flashes
orange/green:
Warning: An error has occurred.
The LED can also flash during a test.
A External FC ports (8x)
Ports for FC SFP Multi-Mode (MMF) or FC SFP+ Multi-Mode (MMF) SFP modules
B Status indicators for external FC ports (green/orange)
Dark: No signal reception
Flickers green: FC port online, data transport
Flashes green: – Slow: FC port online, but segmented
– Fast: Internal loop
Lights up orange: Signal reception, but not online
Flashes orange: Slow (~ 2 sec. interval): FC port deactivated.
Fast (~ 0.5 sec. interval): FC port defective
C Management LAN port
123 CA
B
4
