90 Operating Manual BX900S2
Starting up and operation
© cognitas. Gesellschft für Technik-Dokumentation mbH 2012 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-13570-001.fm
6.1.3.9 Connection Blade FEX B22F 10Gb (Cisco)

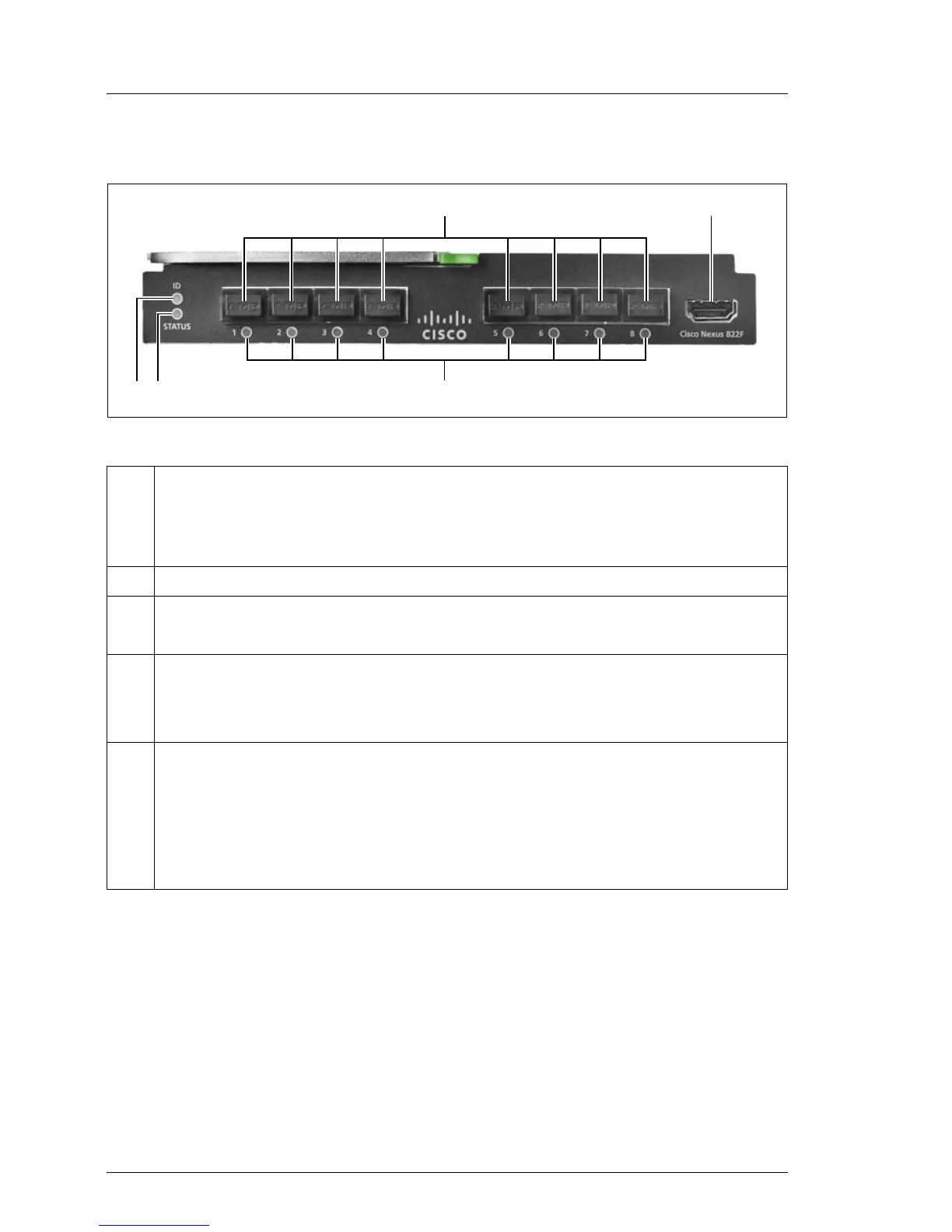

Figure 30: Connection Blade FEX B22F 10Gb (Cisco)
A External 10GbE ports (8x) to connect to the Nexus parent switch
Ports for Cisco branded copper Twinax cables, Fabric Extender Transceivers (FET),
or other standard 10 Gigabit Ethernet optics such as 10Gbase-SR, 10Gbase-LR, and
10Gbase-ER
B Service port (only for diagnostic purposes)
1
ID
ID indicator (blue)
Lit: ID indicator was activated via the management blade
2 Status indicator (green)
Dark: Connection blade is not running or is defective
Lights up green: Connection blade is running
3 Status indicators for external ports (green/orange)
Dark: No signal reception
Lights up green: Link is established
Lights up orange: Port is administratively disabled.
Flashes orange: Port is defective.
12
AB
3
