BX900S2 Operating Manual 93
Starting up and operation
6.1.3.12 Connection Blade SAS Switch 6 Gb 18/6

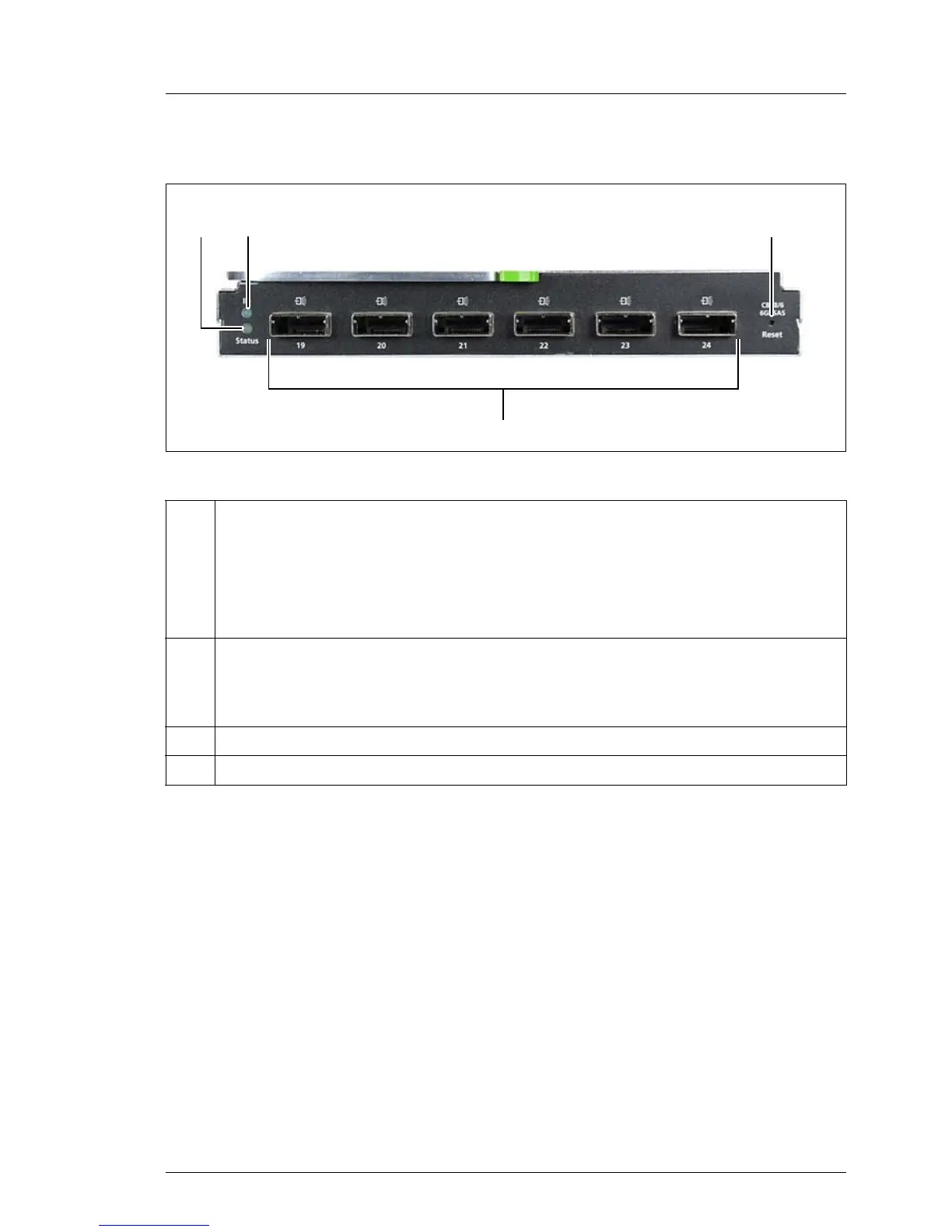

Figure 33: Connection Blade SAS Switch 6 Gb 18/6
1 Status indicator (green/orange)
Lights up green: Power supply is supplied to the connection blade
Lights up
orange:
Switch error
Dark: Power supply is not supplied to the connection blade
2 ID indicator (blue)
Lit: ID indicator was activated via the management blade
Dark: Normal operation
3 Reset button
A 6-Gbit SAS connectors (6x)
12 3
A
