BX900S2 Operating Manual 85
Starting up and operation
6.1.3.5 Connection Blade Ethernet Pass Thru 10Gb 18/18

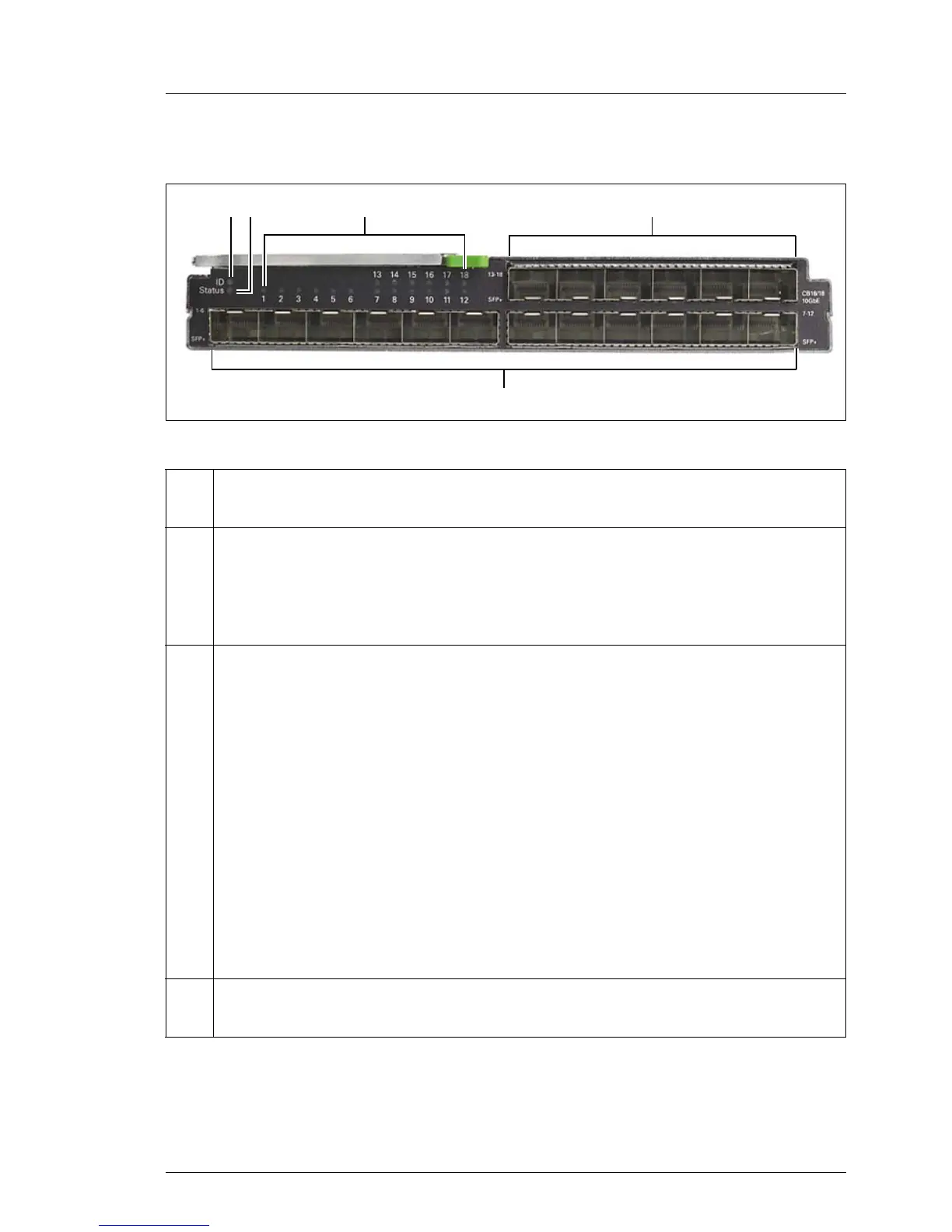

Figure 26: Connection Blade Ethernet Pass Thru 10Gb 18/18
1 ID indicator (blue)
Lit: ID indicator was activated via the management blade
2 Status indicator (green/orange)
Lit green: Power is supplied to the connection blade
Flashes orange: Connection blade error
Dark: Power is not supplied to the connection blade
3 Status indicators for Ethernet ports (green/orange)
Dark: Occurs in the following cases:
– Server blade not present, powered down, or link is inactive
– Uplink port module not present
– Uplink port cable not connected
– One or both of the internal and/or external links is down
Lit green: Both the internal and external links are up
Flashes orange: Occurs in the following cases:
– Link protocol mismatch (one indicator flashes orange)
– Internal port speed configuration error (all indicators of all
ports in a port group flash together, see the "PRIMERGY
BX900 S2 System Unit Upgrade and Maintenance Manual")
Flashes green: Link is up and data transfer
A External ports (18x)
Ports for Ethernet through SFP/SFP+ modules
