BX900S2 Operating Manual 81
Starting up and operation
6.1.3.3 Connection Blade GbE Switch/IBP 36/8+2 (SB11)

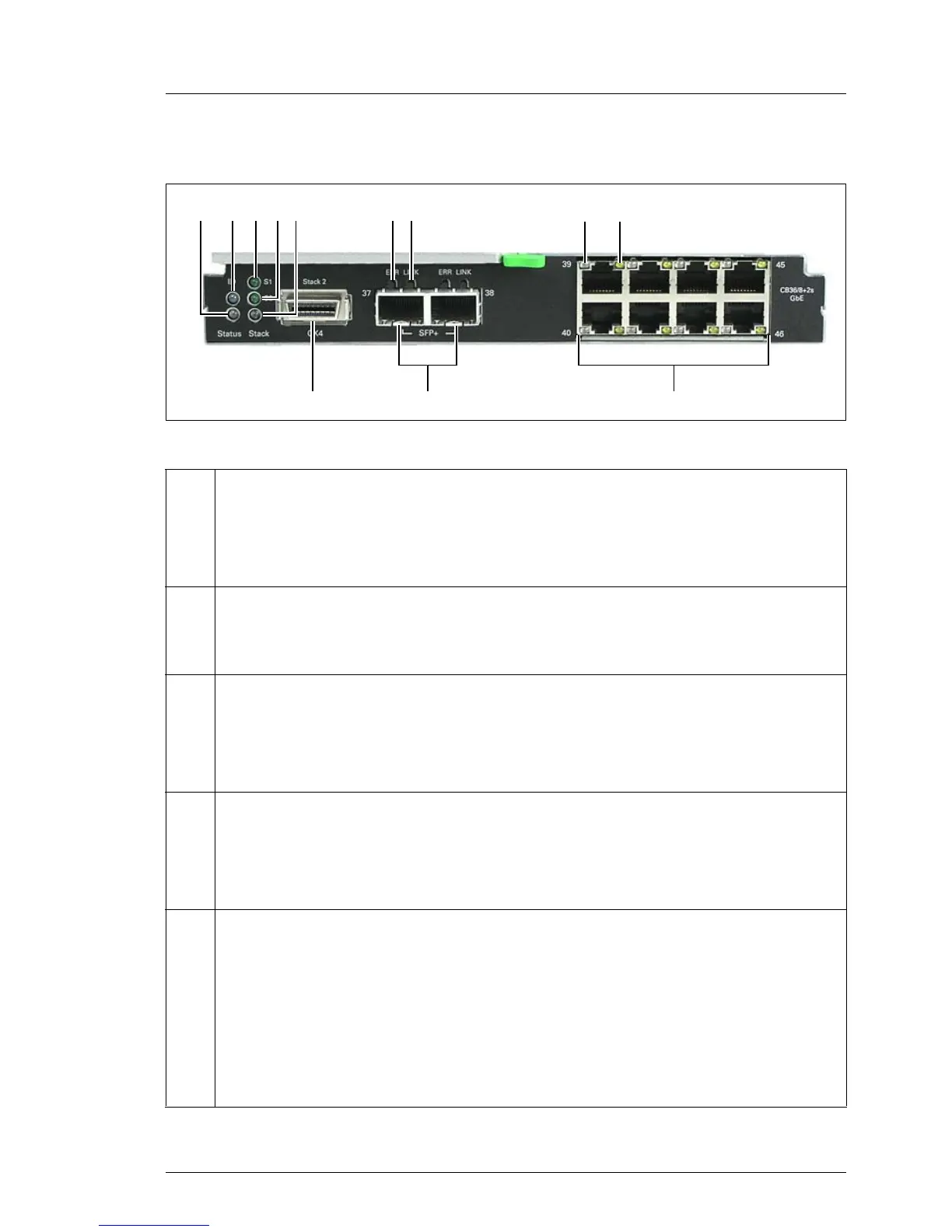

Figure 24: Connection Blade GbE Switch/IBP 36/8+2
1 Status indicator (green/orange)
Lights up green: Power supply is supplied to the connection blade
Flashes orange: Connection blade error
Dark: Power supply is not supplied to the connection blade
2 ID indicator (blue)
Lit: ID indicator was activated via the management blade
Dark: Normal operation
3 Stacking port 1 (internal) (green)
Lit: Stacking port 1 is available
Flashes green: Stacking port 1 is active
Dark: Stacking port 1 is not available
4 Stacking port 2 (external) (green)
Lit: Stacking port 2 is available
Flashes green: Stacking port 2 is active
Dark: Stacking port 2 is not available
5 Stacking (green/orange)
Lights up
yellow:
Connection blade is stack master
Flashes yellow: Connection blade cannot perform role of master
Lights up green: Connection blade is stack slave
Flashes green: Master selection process is active
Dark: Connection blade does not belong to a stack
12345 67 89
AB C
