6.1.3.11 Connection Blade Infiniband Switch 56 Gb 18/18 FDR

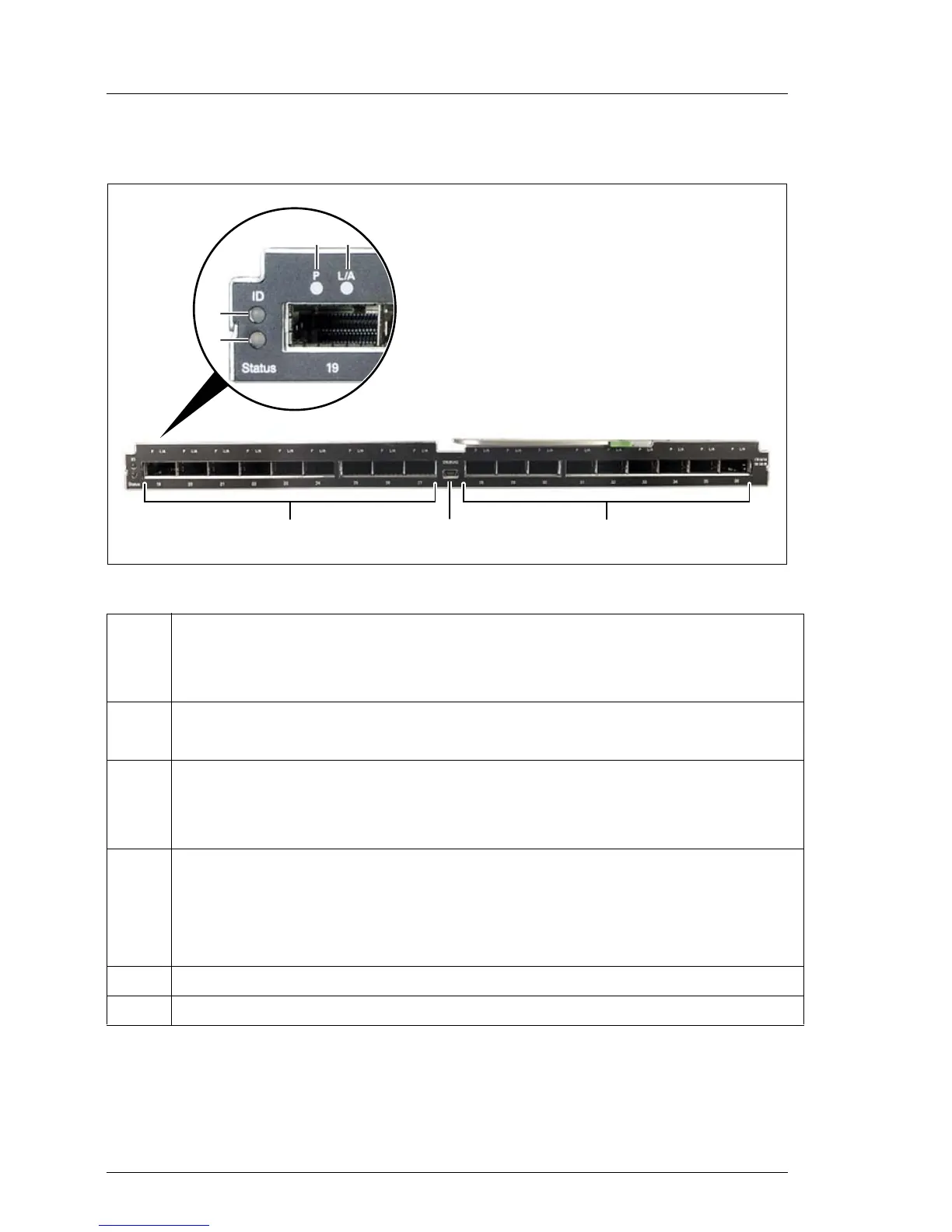

Figure 32: Connection Blade Infiniband Switch 56 Gb 18/18 FDR
1 Status indicator (green/yellow)
Lights up green: Power supply is supplied to the connection blade
Flashes yellow: Switch error
2 ID indicator (blue)
ID Lit: ID indicator was activated via the management blade
3 Physical link status indicator of the external IB ports (green)
P Dark: No signal reception (IB port offline)
Lights up green: IB port online
4 Logical link status indicator of the external IB ports (yellow)
L/A Dark: No signal reception
Lights up yellow: IB port online
Flashes yellow: Data transport
A External IB ports (18x) Ports for QSFP plugs
B External Debug port
