Fujitsu PRIMERGY RX300 S5 - Installling the Fan Box Holder; Replacing the Operating Panel

RX300 S5 Service Supplement 19
Replacement routines Replacing the operating panel
4.1.3 Installling the fan box holder

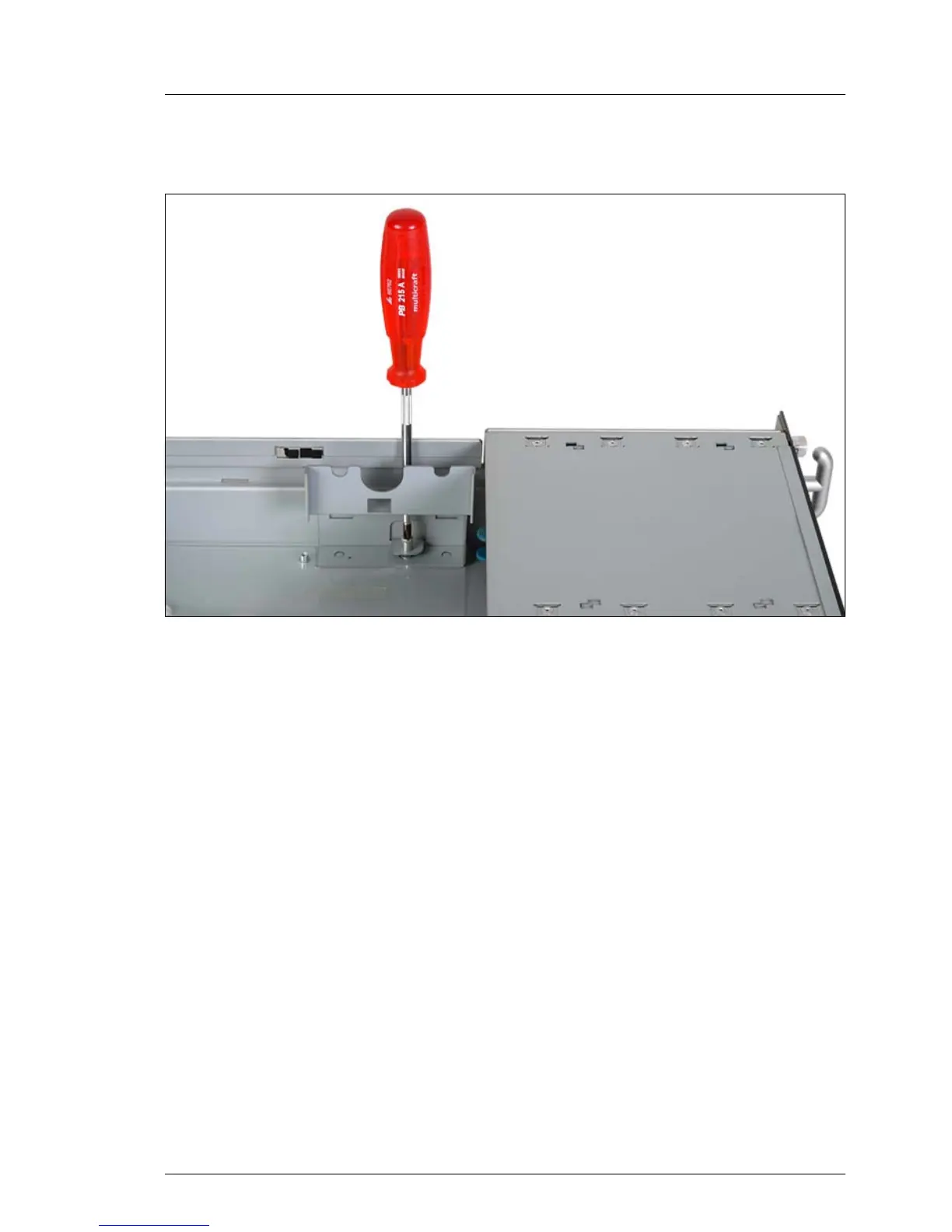

Figure 3: Installing fan box holder
Ê Insert the fan box holder and fasten it with the captive scew.
Ê Lay the cables back into the cable channel of the fan box holder.
4.2 Replacing the operating panel
Ê Open the server as described in the section “Opening the server” on
page 17.
Ê Remove the fan box (see Options Guide PRIMERGY RX300 S5 in chapter
„preparation“.
Ê Remove the fan box holder on the right side behind the front panel frame.
Description see section “Removing fan box holder” on page 17.
