Replacement routines Replacing PSU riser card
4.5 Replacing PSU riser card
Ê Open the server as described in the section “Opening the server” on
page 17.
Ê Disconnect the power connectors.
Ê Remove the power supply cage as discribe the Options Guide PRIMERGY
RX300 S5 in chapter „Preparation“).

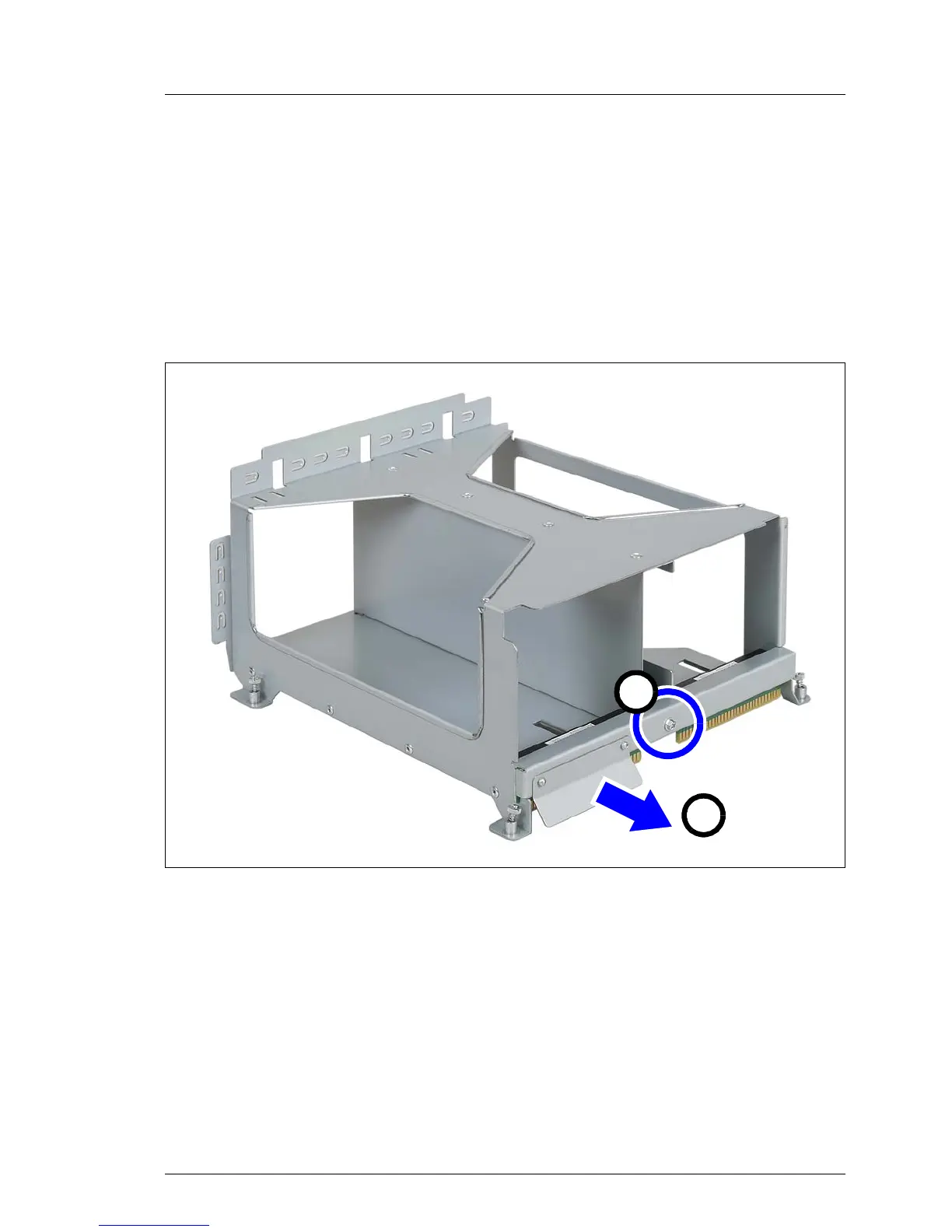

Figure 14: Removing the PSU riser card bracke
Ê Remove one screw from the PSU riser card bracket (1).
Ê Remove the PSU riser card bracket (2).
2
1
