RX300 S5 Service Supplement 63
Appendix Board layouts
5.1.7 System board
Part number: S26361-D2619

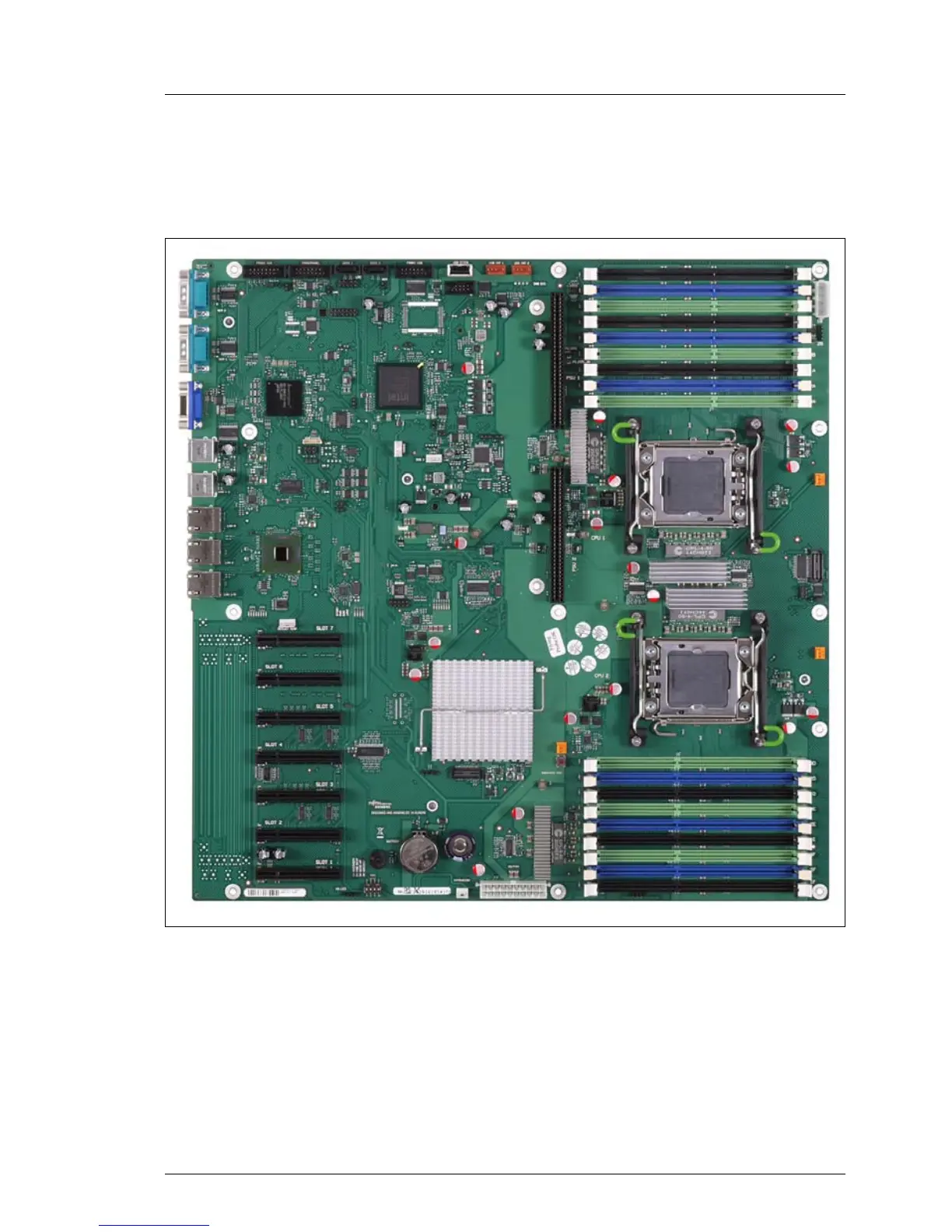

Figure 52: System board
I You will find the connector description and the extension in the „System
board D2619 Technical Manual“.
