22 Service Supplement RX300 S5
Replacing the operating panel Replacement routines

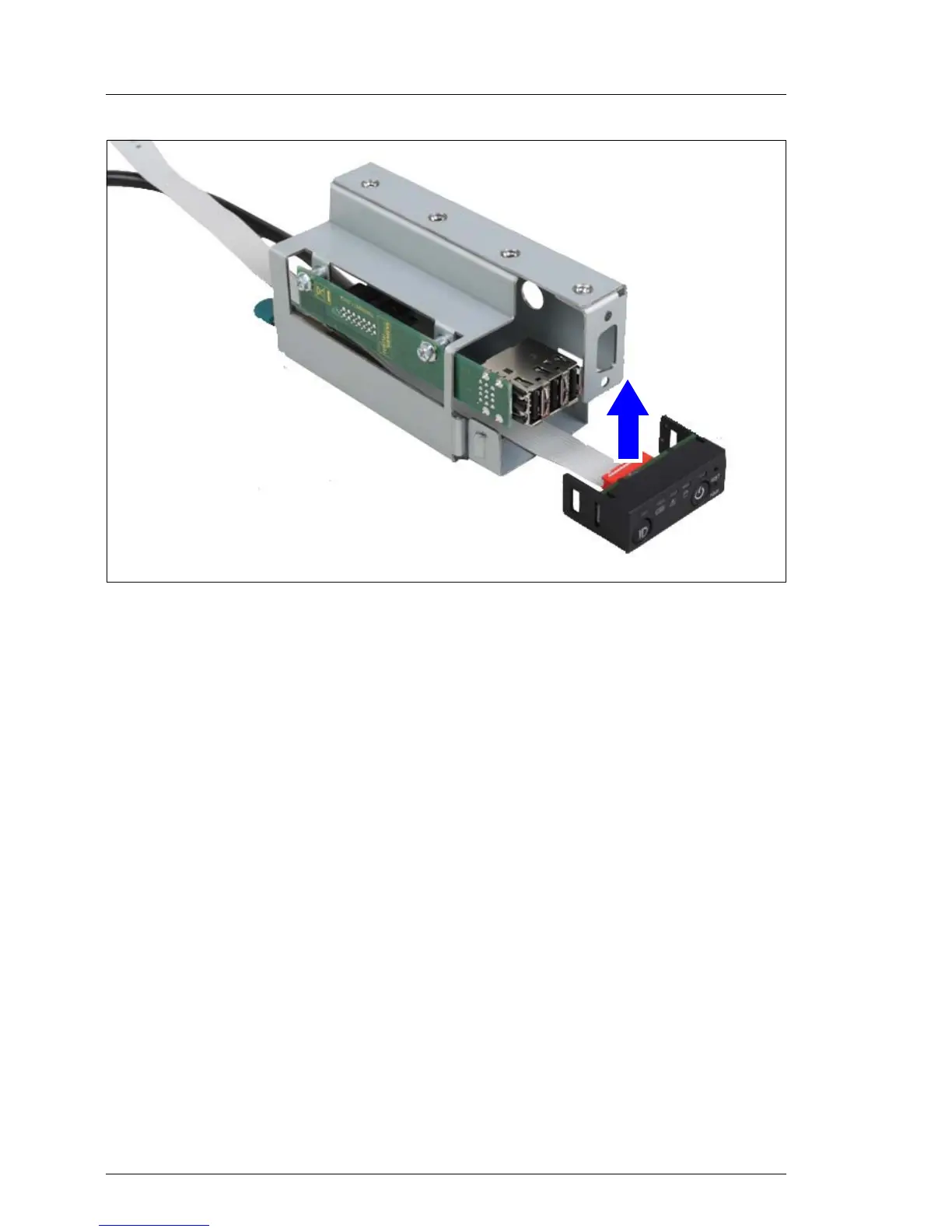

Figure 6: Removing cable from the operating panel module
Ê Disconnect the cable from the operating panel module.
Ê Connect the cable to the new operating panel module. Pay attention to the
coding of the connector.
Ê Insert the new operating panel into the front panel frame.
