RX300 S5 Service Supplement 45
Replacement routines Replacing the system board

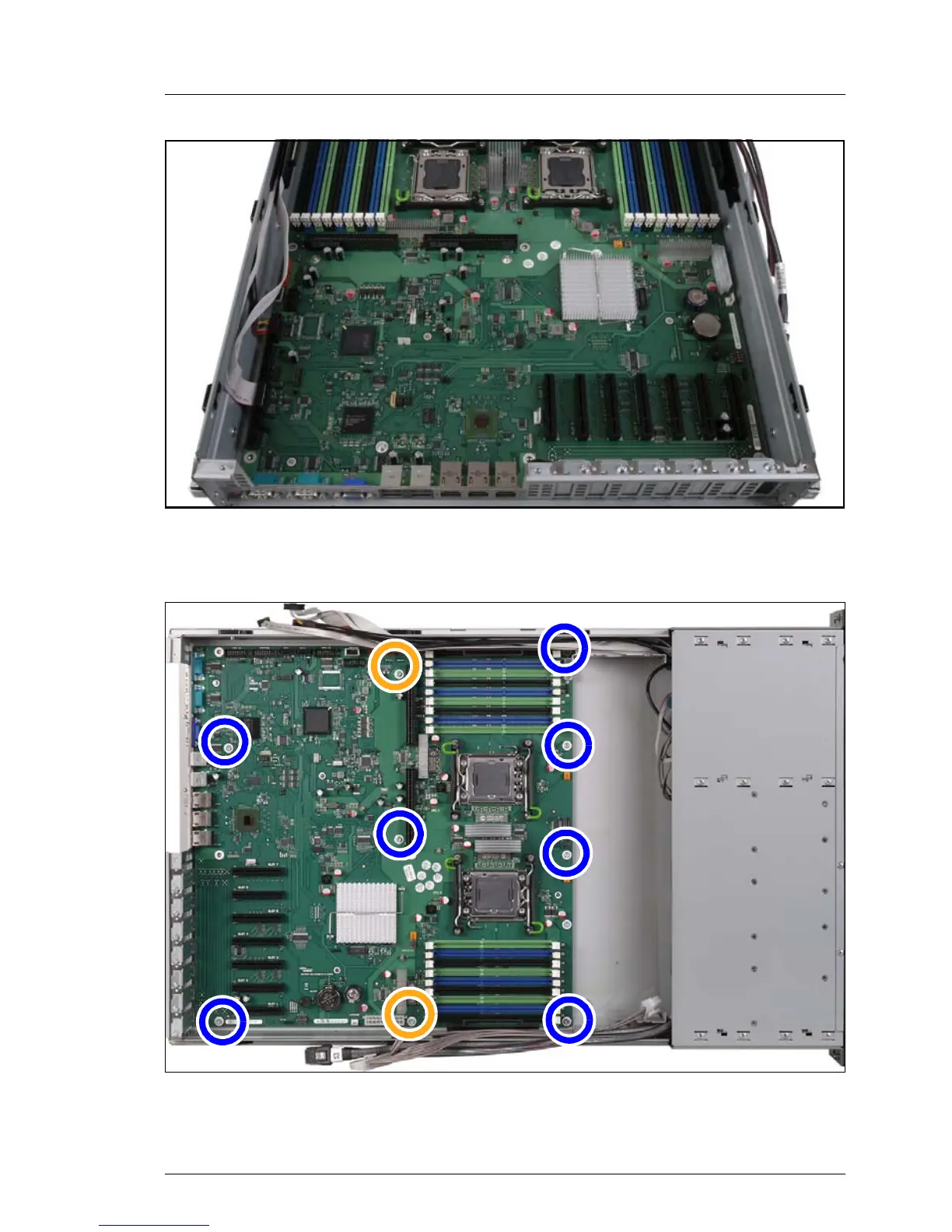

Figure 33: Removing the cables from the system Board
Ê Remove all cables from the system board.
Figure 34: Removing the screws
Ê Remove all screws.
