RX300 S5 Service Supplement 51
Replacement routines Replacing the TPM board

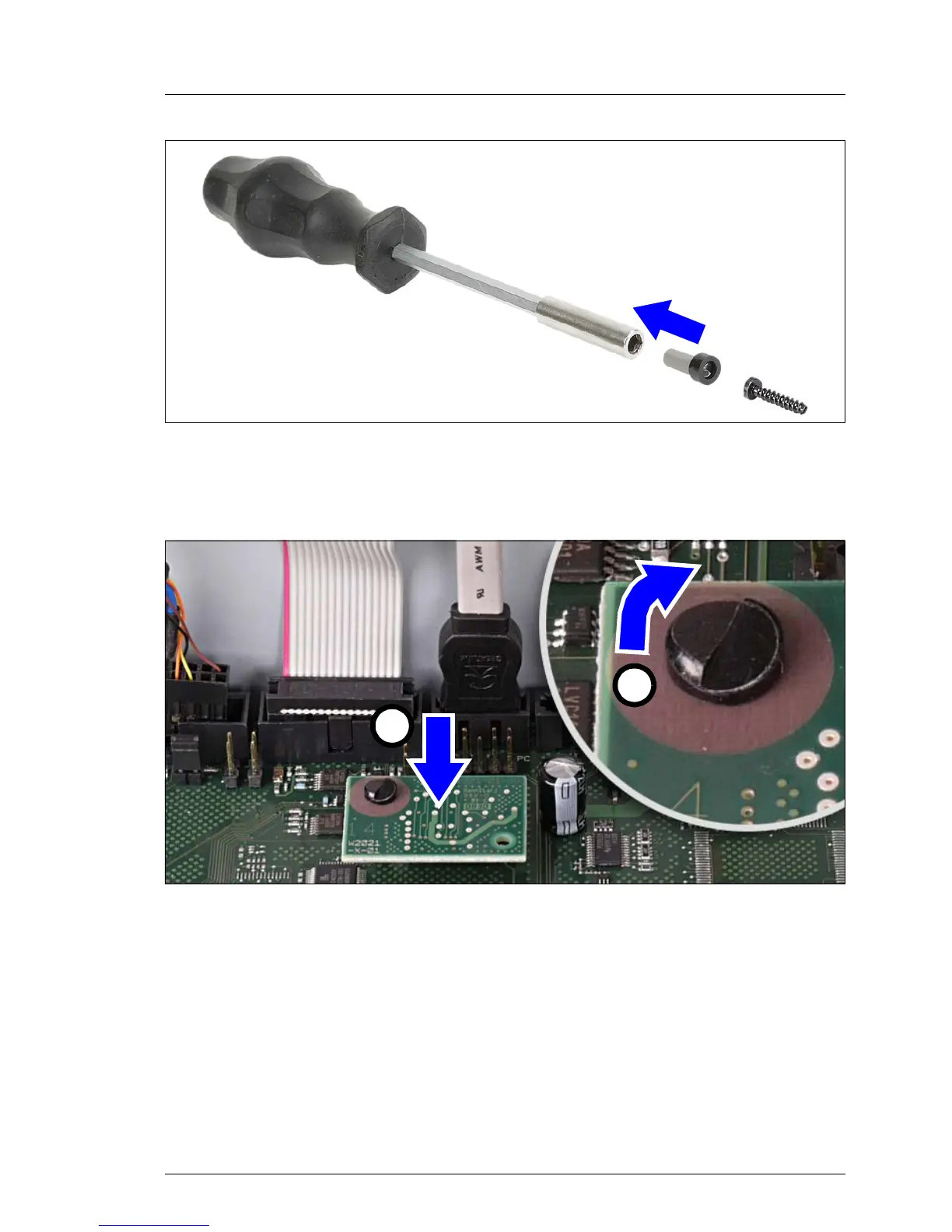

Figure 38: TPM bit insert
Ê Attach the TPM bit insert provided with the spare kit S26361-F3552-E1 / L1
to a bit screwdriver.
Figure 39: Mounting the TPM board
Ê Connect the new TPM board to the system board (1).
Ê Secure the TPM board with the TPM screw using the TPM bit insert (2).
V CAUTION!
Do not fasten the screw too firmly.
Ê Install the system boaord and and insert the other compontents again as
described in section “Replacing the system board” on page 44
2
1
