User’s Guide FUJITSU PSWITCH
December/2018 163

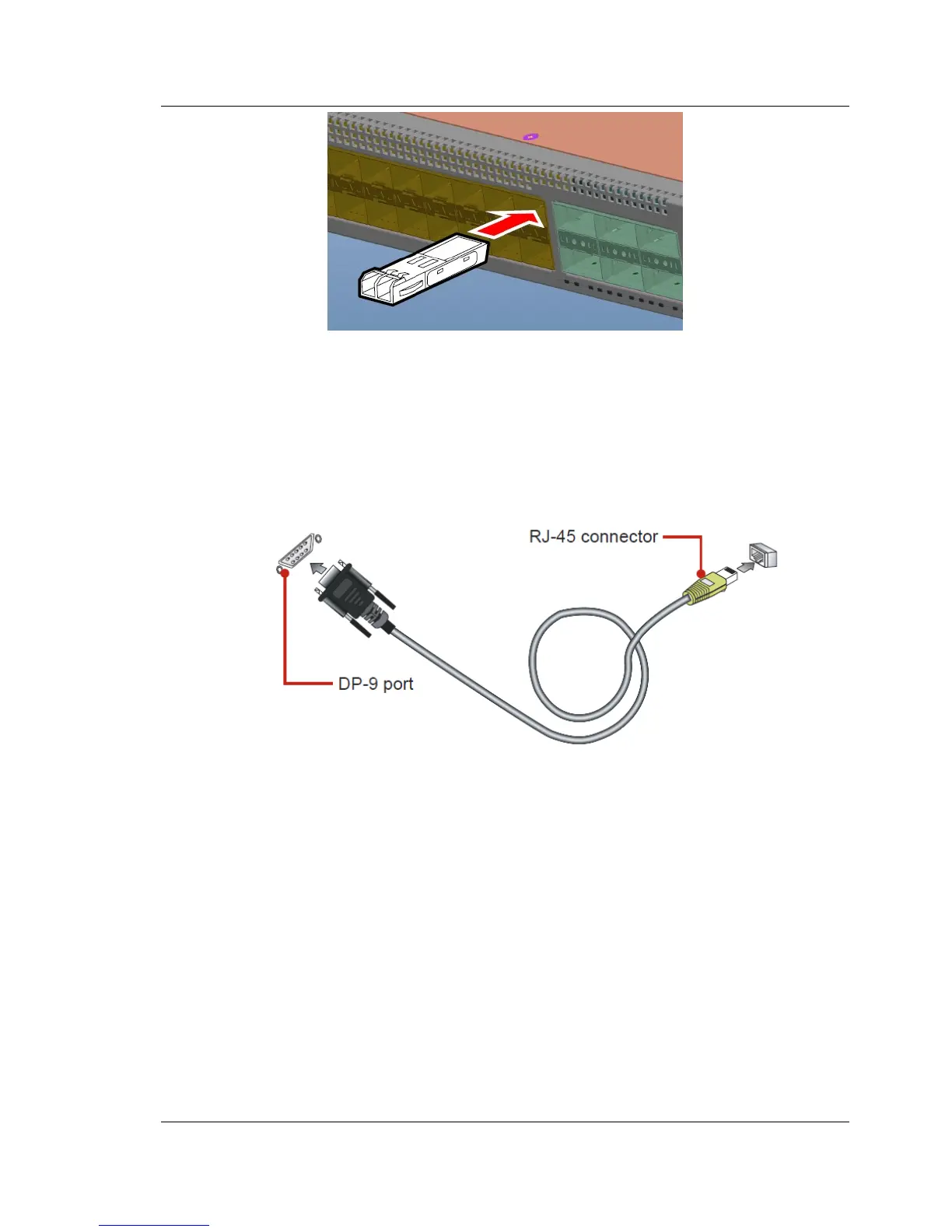

Figure 4-9: Inserting a SFP module into a slot
14. Connect the spare device to the terminal PC (FST-S) with a serial cable.
Insert the RJ-45 connector to the console port on the device.
This connection is used for configuration restoration and firmware upgrade.
Figure 4-10: Console Port Connection
15. Connect the management port of the spare device to the terminal PC with a
LAN cable.
