3.1.2.17.2. Pin Group
In EHM, users can configure Pin Group by manual. A pin group includes uplink port
and down link port. Once pin group is created, pinning process will start
automatically. The Pin Group has following feature:
 Traffic cannot pass through between interfaces of EHM and normal switch mode.
 Downlink ports are pinned only to uplink ports of the same pin group
 Each interfaces can only be part of a single pin group
 Packet switching between downlink ports is possible even when pinning is
enabled
 Data loops are avoided with disabled switching between uplink ports.
 Uplink port will filter traffic from downlink port returning on its uplink ports.
 Mac-address learning on uplink ports is disabled.

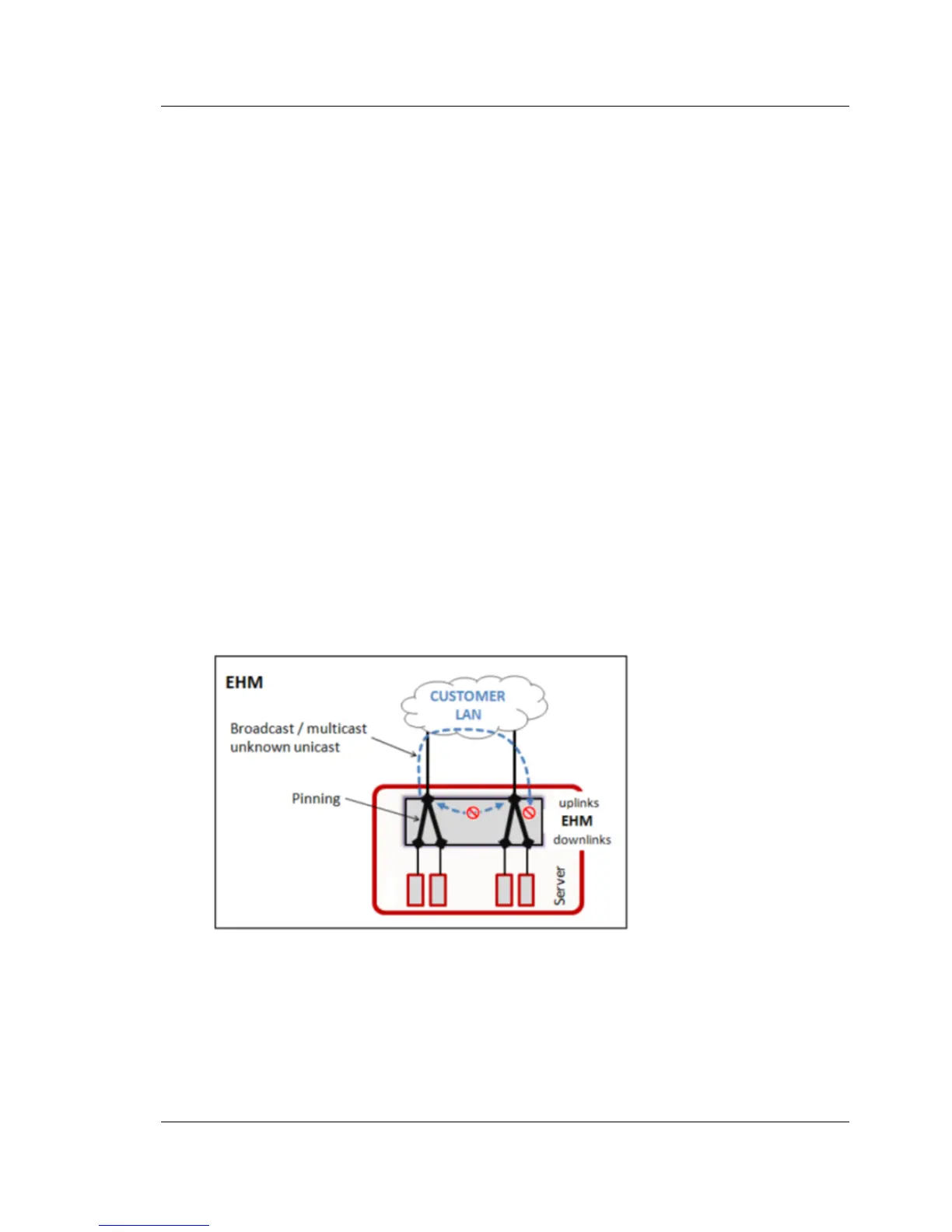

Figure 3-11: End Host Mode
3.1.2.17.3. Pinning
Pinning is a new feature introduced in EHM. It will automatically pins server ports
(downlink ports) to dedicated uplink ports within the same pin group. That means
