User’s Guide FUJITSU PSWITCH
December/2018 21

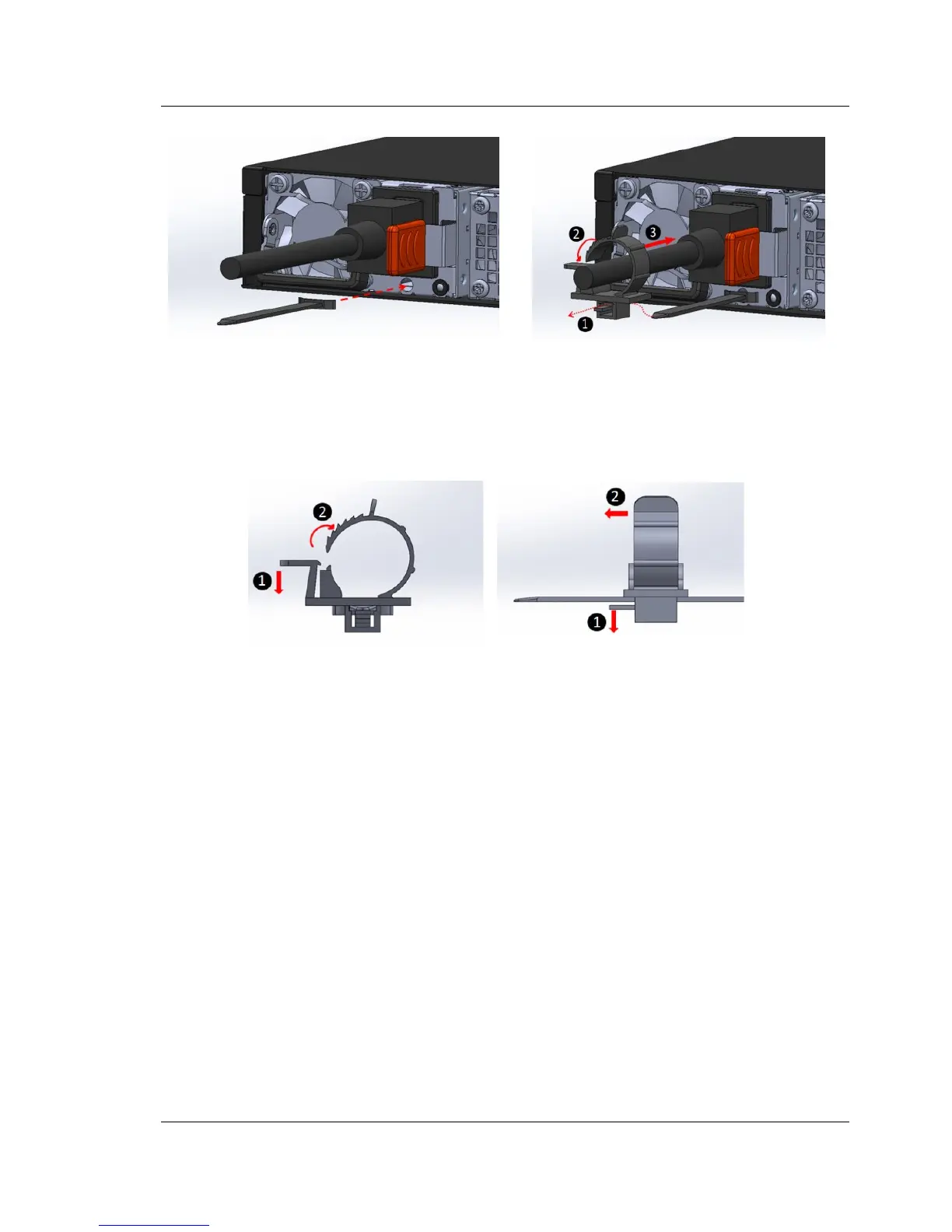

Figure 2-11: Installation of the power cable locker
Please refer to the figure below when removing the power cable locker.
Figure 2-12: How to unlock locker of Power Cable
2.1.5. Startup confirmation
First, confirm that the device started up correctly in the state of the LED of the main
unit. Make sure the SYSTEM LED, POWER LED, and FAN LED on the front of the
main unit are lit in green.
Next, connect the console to check the status of the firmware. Follow the
instructions for connecting to the switch console in the next chapter and log in to
the system with user 'admin'. You can check the version number of the current
Runtime (firmware) with the show version command. Please refer to the article
"2.4.1. Checking version and system information".
Check the firmware version number and update it if it is different from the
expected version number. Firmware update is done using FTP/TFTP server. Follow
the steps below to update the firmware.
