FUJITSU PS
W
ITCH
December/2018
19

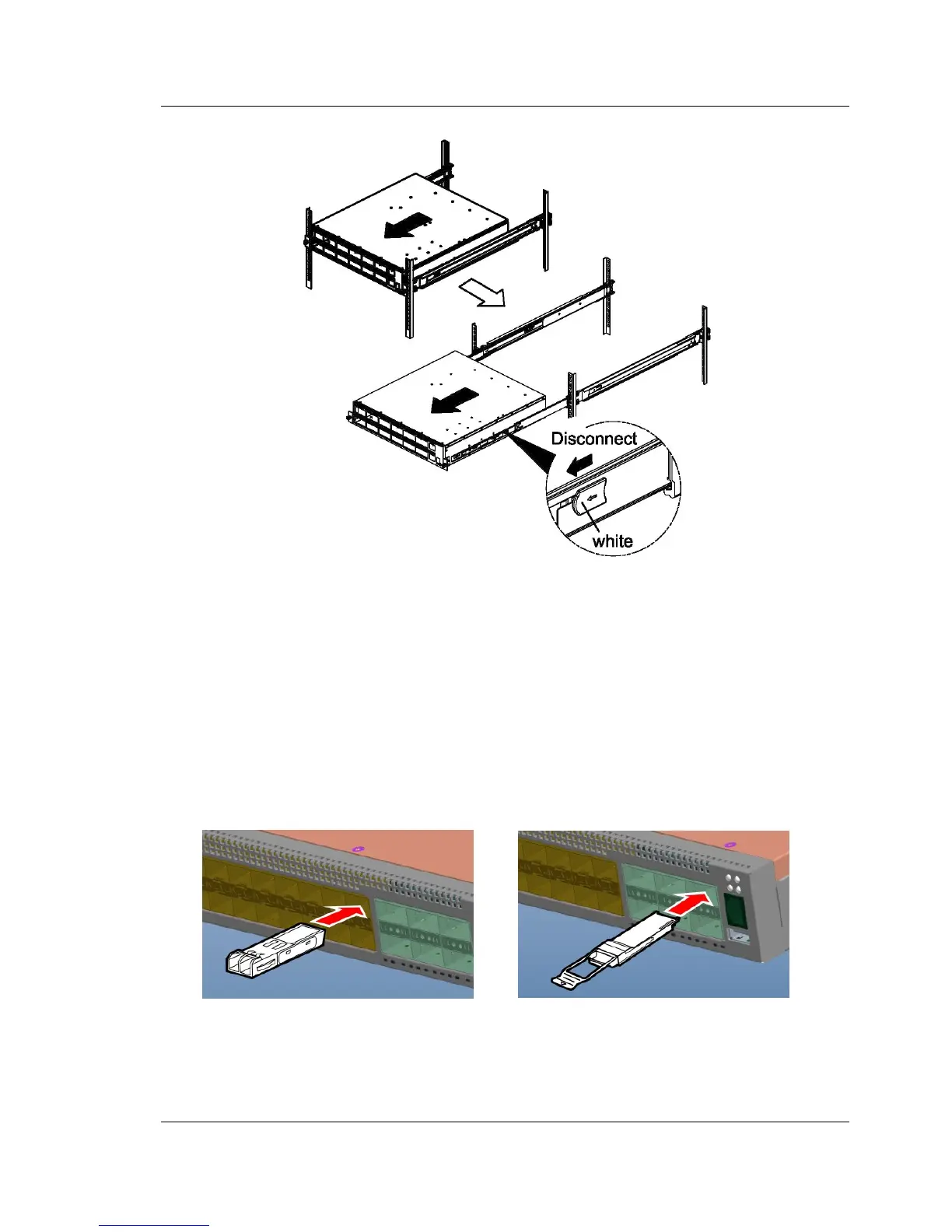

Figure 2-8: Unmount device from rack
2.1.2.
Attachment of Power
Supply Unit
Please insert th
e both tw
o power supp
ly units(PSUs).
2.1.3.
Inserting of SFP mod
ules
Install the mo
dules required f
or SFP+ slot a
nd QSFP sl
ot.
Figure 2-9
:
Inserting a
SFP+/QSFP module into a sl
ot
Inserting a SFP+ module
Inserting a QSFP module
18
20
Table of Contents
Default Chapter
3
Collecting and Recycling Used Products
3
High Risk Activity
3
Table of Contents
4
1 Product Overview
6
Front View
6
Rear View
7
LED Identification
8
Front Leds
8
Rear Leds
11
System Specification
12
2 Getting Started with Configuration
14
Rack Mounting
14
Installation of L-Shaped Brackets and Rack Rails
14
Attachment of Power Supply Unit
19
Inserting of SFP Modules
19
Connection to a Power Source
20
Startup Confirmation
21
Connecting to the Console of the Switch
22
Accessing Management Port
23
Initial Configuration of the Switch
24
Checking Version and System Information
24
Setting the System Clock of the Switch
24
Enabling/Disabling Posts
25
1G SFP Module
26
Firmware Update
26
Backup and Restore Configuration
27
System Logging
27
How to Collect Diagnostic Information
29
POST Control
29
3 Software Feature
31
Functional Overview
31
Switch Management
31
Command Line Interface (CLI)
31
Supported Versions
32
Mib
32
SNMP Alarms and Trap Logs
32
RMON (Remote Monitoring)
32
NETCONF (Network Configuration Protocol)
33
NETCONF Operations
33
NETCONF Tag Elements and Values
34
Supported Tag Elements and Values
37
OVSDB (Open Vswitch Database)
40
Schema Format
41
Global Table
42
Manager Table
42
Physical_Switch Table
43
Physical_Port Table
44
Tunnel Table
44
Logical_Switch Table
44
Ucast_Macs_Local Table
45
Ucast_Macs_Remote Table
45
Mcast_Macs_Local Table
45
Mcast_Macs_Remote Table
45
Physical_Locator_Set Table
46
Physical_Locator Table
46
Supported Configurable Tables
46
Configuration Management
49
Firmware Upgrade
49
System and CLI Logging
50
Auto Discovery
50
Other Functions
50
Layer 2 Switching
50
Flow Control
51
Port Locator
52
MAC Address Tables
52
Forwarding, Aging, Learning
52
Learning
53
Independent VLAN Learning
53
Static and Dynamic MAC Address Tables
53
Static MAC Filtering
53
Port Security
54
LAG (Link Aggregation) or Port Channel
56
Static Lags
56
Dynamic Lags
57
LAG Interaction with Other Features
57
LAG Hashing Algorithm
58
Dynamic LAG Limits
58
Preboot Execution Environment Support
59
VPC (Virtual Port Channel) or Multi Chassis LAG
59
VPC Topology
59
VPC Enhance Mode
61
Fast-Failover
61
VPC Limitations
62
Virtual LAN (IEEE 802.1Q)
62
Port Based VLAN
63
MAC Based VLAN
63
Protocol Based VLAN
63
IP Subnet Based VLAN
63
Protected Ports
64
Double VLAN (DVLAN) Tunneling
64
Private Vlans
65
GARP (Generic Attribute Registration Protocol)
65
GVRP (GARP VLAN Registration Protocol)
66
GMRP (GARP Multicast Registration Protocol)
66
MRP (Multicast Registration Protocol)
66
MVRP (Multiple VLAN Registration Protocol)
66
STP (Spanning Tree Protocol)
67
RSTP (Rapid Spanning Tree Protocol)
68
MSTP (Multiple Spanning Tree Protocol)
68
MSTP in the Network
68
STP in a Small Bridged Network
68
Single STP Topology
69
Logical MSTP Environment
70
Classic STP, Multiple STP, and Rapid STP
71
Edge Port
72
BPDU (Bridge Protocol Data Unit) Guard
72
Loop Guard
72
Root Guard
73
BPDU Filtering
73
BPDU Flooding
73
PVRSTP and PVSTP
74
STP Fast-Uplink
75
Loop Protection
75
Link Dependency (Link down Relay and Backup Port)
76
FDB Update
77
Upstream Threshold
77
Port Mirroring
77
RSPAN (Remote Switched Port Analyzer)
78
LLDP (Link Layer Discovery Protocol)
78
UDLD (Unidirectional Link Detection)
79
UDLD Modes
79
UDLD and LAG Interfaces
80
Cut-Through Mode
80
Provider Backbone Bridging (IEEE 802.1Ah)
81
Frame Encapsulation
81
I-Domain
82
B-Domain
83
Traffic Engineering
83
Shortest Path Bridging MAC (IEEE 802.1Aq)
84
IS-IS (Intermediate System to Intermediate System)
84
SPB Extension
84
SPBM for Path Redundancy
85
EHM (End Host Mode)
86
Enable EHM
86
Pin Group
87
Pinning
87
End Host Mode
87
Pinning Process
88
Re-Pinning Process
89
Re-Pinning Timer
89
Link down Relay
89
Internal Network
89
Pin States
90
Multicast
90
IGMP Snooping
90
MLD Snooping
91
Snooping Querier
91
Mroutes (Multicast Static Routes)
91
IGMP (Internet Group Management Protocol) V2/V3
91
MLD (Multicast Listener Discovery) V1/V2
92
DVMRP (Distance Vector Multicast Routing Protocol)
92
PIM-DM (Protocol Independent Multicast — Dense Mode)
94
PIM-SM (Protocol Independent Multicast — Sparse Mode)
95
PIM Hello Interval Tuning
96
PIM Join/Prune Interval Tuning
97
Multicast Traffic Recovery Time
97
Source Specific Multicast (PIM-SSM)
97
DHCP (Dynamic Host Configuration Protocol)
98
DHCP Client
98
DHCP Snooping
98
DHCP Relay
100
DHCP L2 Relay
100
DHCP Server
101
Security & AAA
101
User Management
101
Accounting
101
Authentication
102
Password Management
102
802.1X Port Based Authenticator
103
802.1X MAC Based Authenticator
103
802.1X Supplicant
104
Radius
104
RADIUS-Based Dynamic VLAN Assignment
105
Tacacs+
105
LDAP (Lightweight Directory Access Protocol)
105
DOS (Denial of Service)
106
Storm Control
107
Source Guard
107
IP Source Guard
107
Ipv6 Source Guard
108
Dynamic ARP Inspection
108
Interface Error Disable and Auto Recovery
109
System Utility
109
SNTP (Simple Network Time Protocol)
109
Sflow
109
Sflow Architecture
110
Sflow Sampling
110
Packet Flow Sampling
111
Sampling in Hardware
111
Counter Sampling
111
Qos (Quality of Service)
112
Statistics
112
ECN (Explicit Congestion Notification)
113
Data Center and Virtualization
113
Data Center Bridging
114
PFC (Priority Flow Control)
114
CN (Congestion Notification)
114
QCN (Quantized Congestion Notification)
115
ETS (Enhanced Transmission Selection)
115
DCBX (Data Center Bridging Extensions)
116
FIP Snooping
116
EVB (Edge Virtual Bridging)
117
DCVPN Gateway/Layer2 Overlay
117
Switch Overlay Mode
118
VTEP to VN Association
118
Layer 3 Servise
119
IP Addresses
119
Ipv6 Routing and Management
119
Destination Unreachable
119
Redirects
120
IRDP (ICMP Router Discovery Protocol)
120
Ipv6 Compare with Ipv4
120
Ipv6 Routing Support
121
ARP (Address Resolution Protocol)
122
Unicast Routing Table
123
Routing Interfaces and Addressing
124
Loopback Interfaces
124
VLAN and Port-Based Routing
124
IP MTU (Maximum Transmission Unit)
125
Network Directed Broadcast
125
Host Interfaces
126
Unnumbered Interface Support for Ipv4
126
Proxy ARP
126
Default Routes on Management Interfaces
126
Software Forwarding
128
Static Routing
128
Route Redistribution
129
Supported Route Redistribution in Ipv4
129
Supported Route Redistribution in Ipv6
130
RIP (Routing Information Protocol)
130
Authentication in RIP
130
Exchange of Routing Information
131
RIP Route Summarization
131
Split Horizon Mechanism
131
Ripng (RIP for Ipv6)
132
Filtering Ipv6 RIP Routing Updates
132
OSPF (Open Shortest Path First)
132
OSPF Version 2 (Ipv4)
132
Automatic Exiting of Stub Router Mode
133
OSPF ECMP (Equal Cost Multipath)
133
A Static Route with Two Next Hops
134
Optimization to Support ECMP Hops in Large-Scale Networks
135
OSPF Version 3 (Ipv6)
135
BGP (Border Gateway Protocol)
136
VRRP (Virtual Router Redundancy Protocol)
136
VRRP Operation in the Network
137
VRRP Router Priority
137
VRRP Preemption
137
VRRP Accept Mode
138
VRRP Route and Interface Tracking
138
ECMP (Equal Cost Multi-Path)
139
ECMP Hash Selection
139
UDP Relay/Ip Helper
140
Default Ports — UDP Port Numbers Implied by Wildcard
141
VRF Lite
142
Operation Samples
143
VLAN Setting
143
Untagging VLAN
143
Tagging VLAN
144
Link Aggregation
144
Static LAG
144
Lacp
145
Vpc
145
Packet Filtering Function
146
Stp
146
LLDP Function
147
SNMP Agent Function
147
Port Mirroring
147
Ehm
148
Ldap
148
Switch Parameters
149
Software Feature List
151
Software Feature Combination Matrix
153
Functions Supported by this Switch
153
Management Information Base (MIB)
155
4 Maintenance
157
Preparation
157
Console Cable
157
How to Replace the Switch (FRU: Field-Replaceable Unit※)
158
How to Unlock Locker of Power Cable
159
Unmount Device from Rack
159
Attachment of Rack Rail
160
Attachment of L-Shaped Bracket
160
Label
161
Insert the Device Onto the Rack
162
Fix the Bracket to the Frame
162
Inserting a SFP Module into a Slot
163
Console Port Connection
163
Connect to the Management Port
164
Power Supply Unit
164
Install the Power Cable Locker
165
How to Replace FAN Unit
166
How to Replace Power Unit(CRU: Customer Replaceable Unit※)
167
Battery Power
169
How to Replace Battery (FRU: Field-Replaceable Unit※)
170
Location of Battery
172
Transitions of Device Temperature
176
5 Product Specification
178
6 Hardware Specification
179
7 Externally Licensed Components
183
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Fujitsu PSWITCH 2048P and is the answer not in the manual?
Ask a question
Fujitsu PSWITCH 2048P Specifications
General
Brand
Fujitsu
Model
PSWITCH 2048P
Category
Switch
Language
English
Related product manuals
Fujitsu PSWITCH 2048T
218 pages
Fujitsu series3-1621
128 pages
Fujitsu KVM s4-0812
24 pages
Fujitsu KVM s4-1622
24 pages
Fujitsu KVM s3-1621
2 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
