FUJITSU PSWITCH User’s Guide
18 December/2018

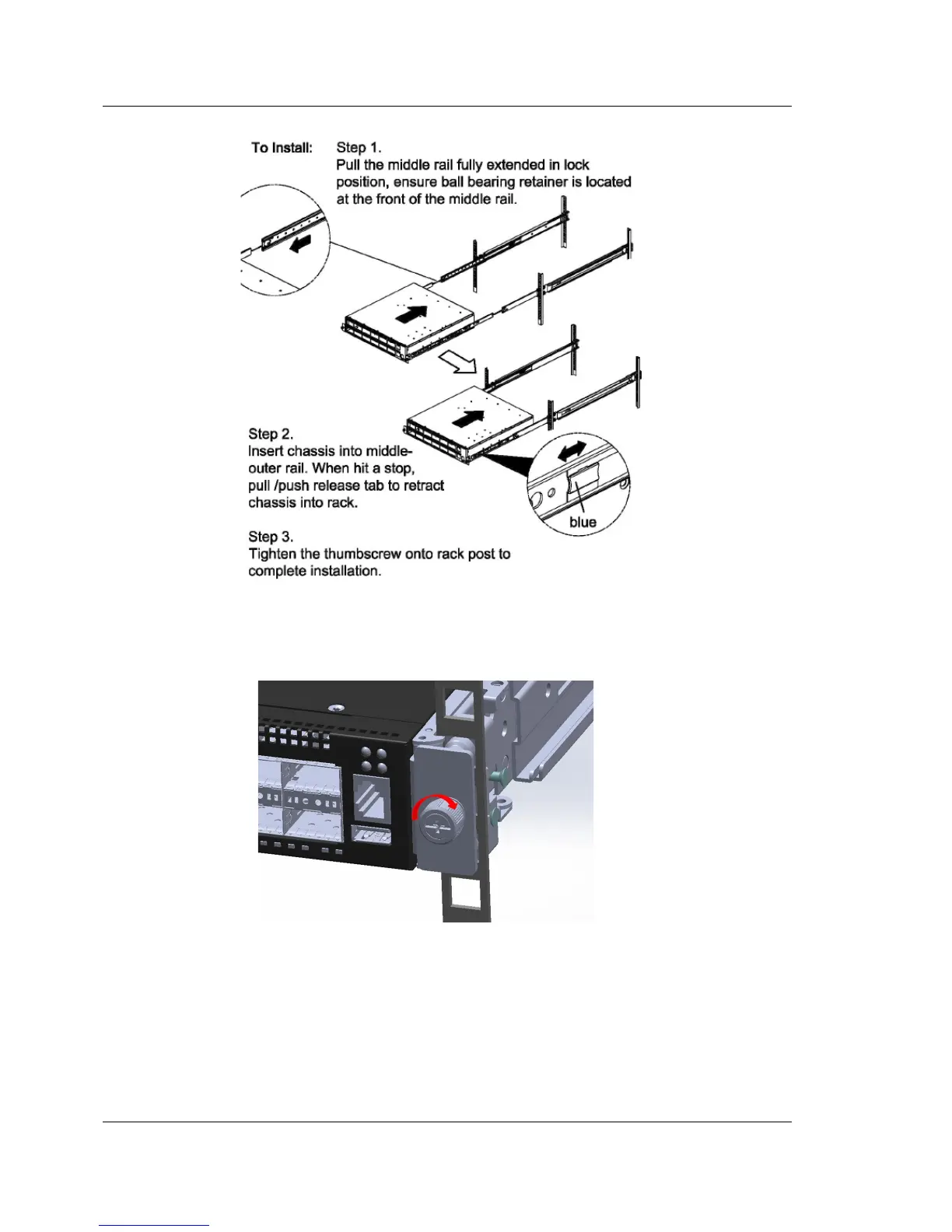

Figure 2-6: Insert the device onto the rack
Fix the bracket assembly to the frame.
Figure 2-7: Fix the bracket to the frame
When removing the equipment from the rail, please refer to the figure below.
