7.3 Replacing the Pick Roller
ScanSnap S500M Operator's Guide 103
Replacing Consumables
7

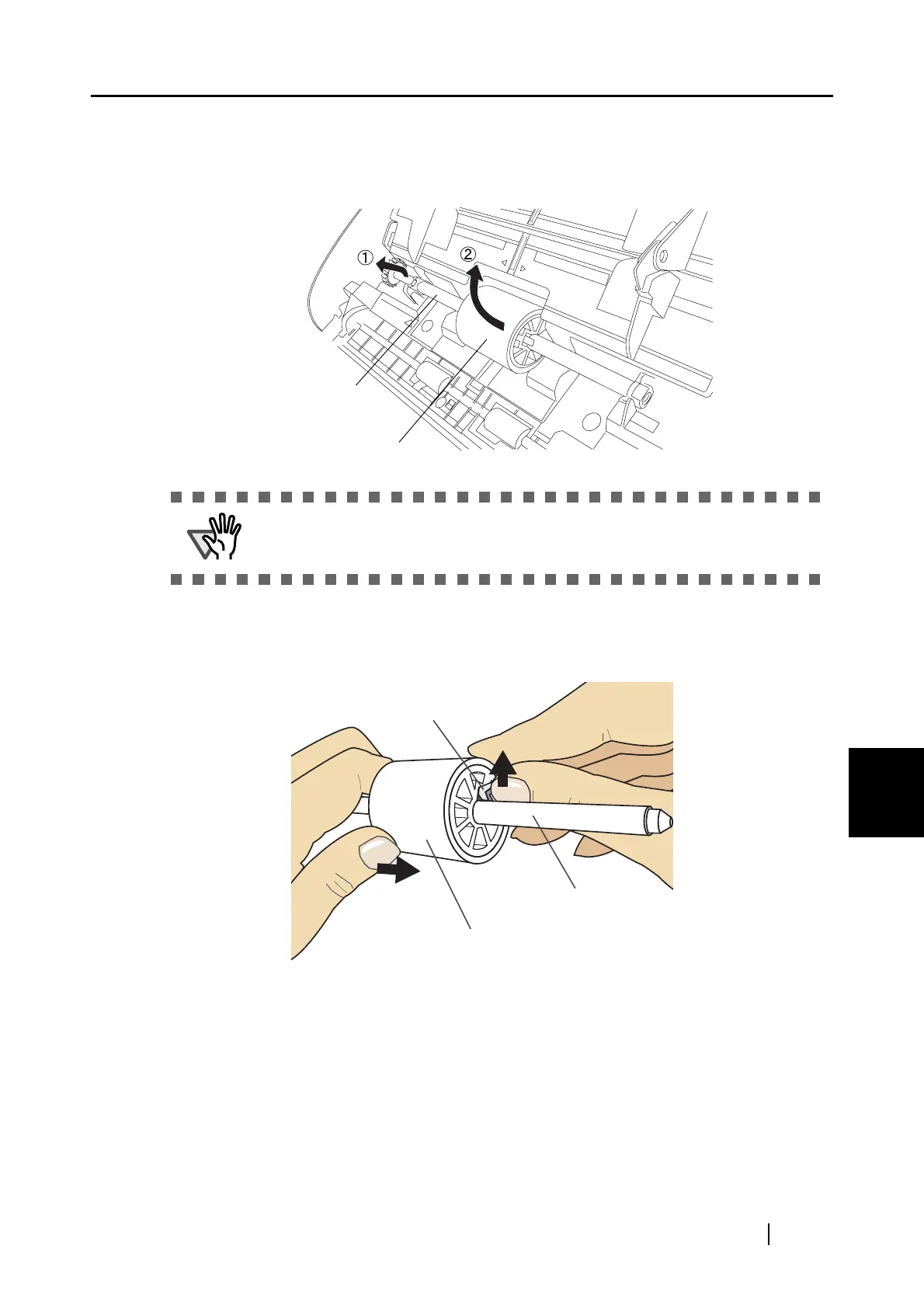

6. Remove the Pick roller with its shaft.
Slightly pull up the left part of the Pick roller shaft (about 5mm), move it towards the left
side, and then raise it to remove from the scanner.
7. Remove the Pick roller from its shaft.
Pull out the shaft from the Pick roller while lifting up its tab.
ATTENTION
If the area around the Pick roller is contaminated by paper debris, it may cause
scanning errors. Remove the dirt using a dry cloth moistened with Cleaner F1.
* Do not use water, neutral detergent or aerosol spray.
Pick roller shaft
Pick roller
Tab
Pick roller
Pick roller shaft
To Next Page
