18.MAIN MENU

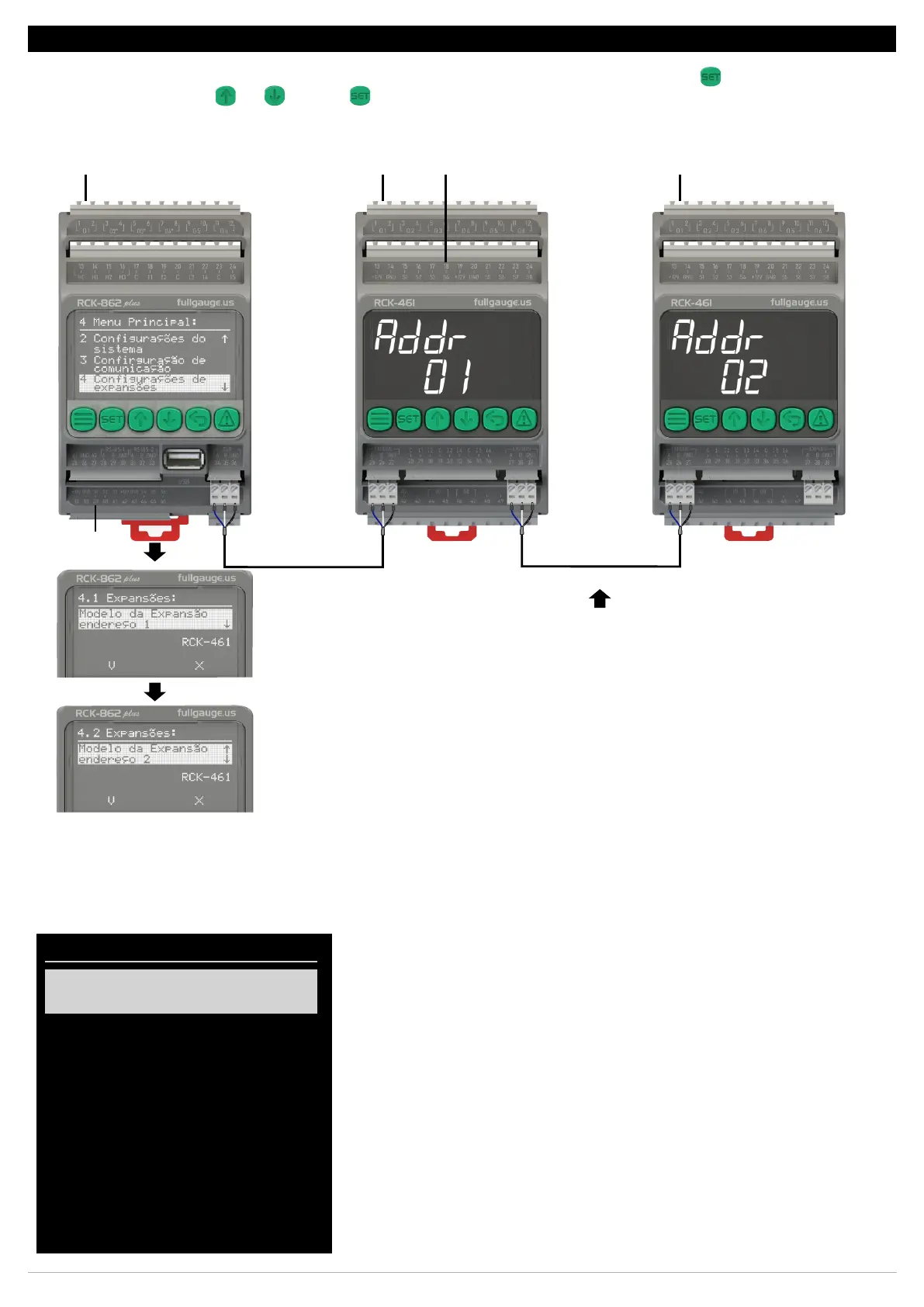

On the RCK-862 plus the module model used at each address must be selected. To do this, access the menu 4.x, where x represents the address
from 1 to 10, and select the corresponding model.
Base S1
Base O1
Exp1 O1
Exp2 O1
Exp1 S4
The connection between the
expansions must be made
with cable (shield / screen)
with a minimum diameter of
24AWG (or 0.5mm)
When configuring the expansions, the RCK-862 plus automatically expands the possible input and output options for selection.
Example:
Base O1
Base O2
...
Base O6
Exp 1 O1
...
Exp 1 O8
Exp 2 O1
...
Exp 2 O8
Compressor 1
Main Output
1.2.1.34 Suction 1:
In each expansion module, an address must be configured between 1 and 10, without repetition. To do this, press the key for 2 seconds, select the SET
desired address using the keys and and press again to confirm.>>> >>> SET
