19.PARAMETER TABLE

1.1.1

Initial delay

Number of suction pressure switches

Number of discharge pressure switches

Suction group 1

Group 1: Refrigerant

Suction group 2

Group 2: Refrigerant

Suction group 3

Group 3: Refrigerant

Group 2 : Economy setpoint output time

Group 1 : Economy setpoint input time

Group 3 : Economy setpoint output time

Group 1 : Economy setpoint output time

Group 3 : Economy setpoint output time

Group 2 : Economy setpoint input time

1.1.2

1.1.3

1.1.4

1.1.7

1.1.5

1.1.8

1.1.6

1.1.9

1.1.13

1.1.10

1.1.14

1.1.11

1.1.15

1.1.12

0 3

00:00 [off]

24:00 [off]

seg

min.

999

1.1 Groups:

Settings menu related to groups. A group is a set of suction or discharge lines that have links (same refrigerator circuit).

Example: A Rack-type refrigeration system with two suction lines, one for frozen and one for colds, sharing the same discharge line forms a group

composed of three pressure switches.

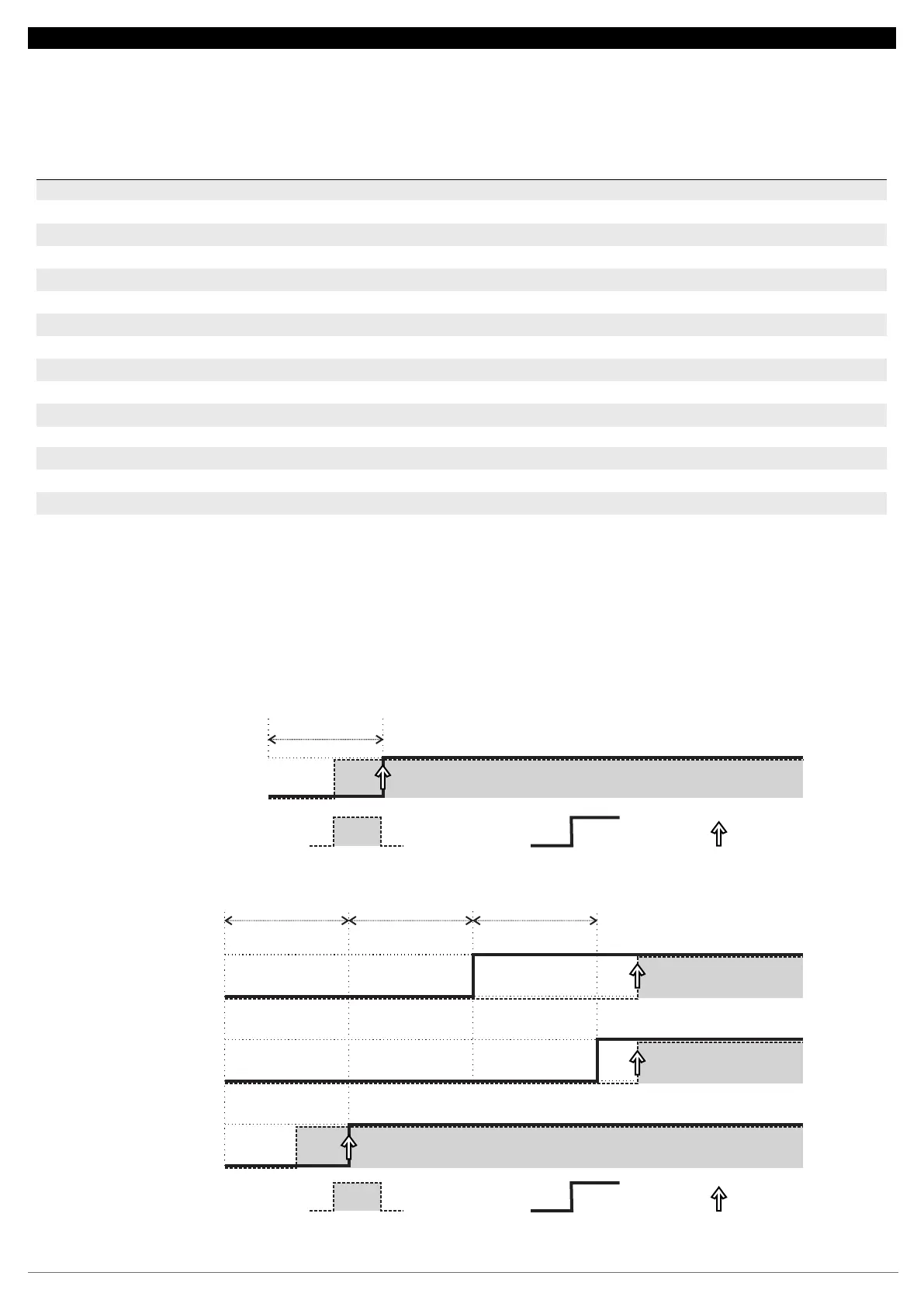

1.1.1 Initial Delay:

It is the time that the controller waits before enabling the pressure switches when the control is activated.

The discharge pressure switches are enabled after the configured time has elapsed.

The suction pressure switches are enabled according to the following logic:

After the initial delay time has elapsed, the pressure switch, with the lowest index, that is capable of being activated (pressure above the setpoint + step)

will be enabled;

After the initial delay time has elapsed for the second time, the configured time will enabled the next suitable pressure switch;

After the initial delay time has elapsed for the third time, the configured time will enable the last pressure switch.

If there are no suitable pressure switches after: the configured time has elapsed, it will be enabled in the sequence, suction 1, suction 2 and suction 3.
