FUNAI LF320EM5F - Exploded Views

12-1 FL14.10-A_CEX

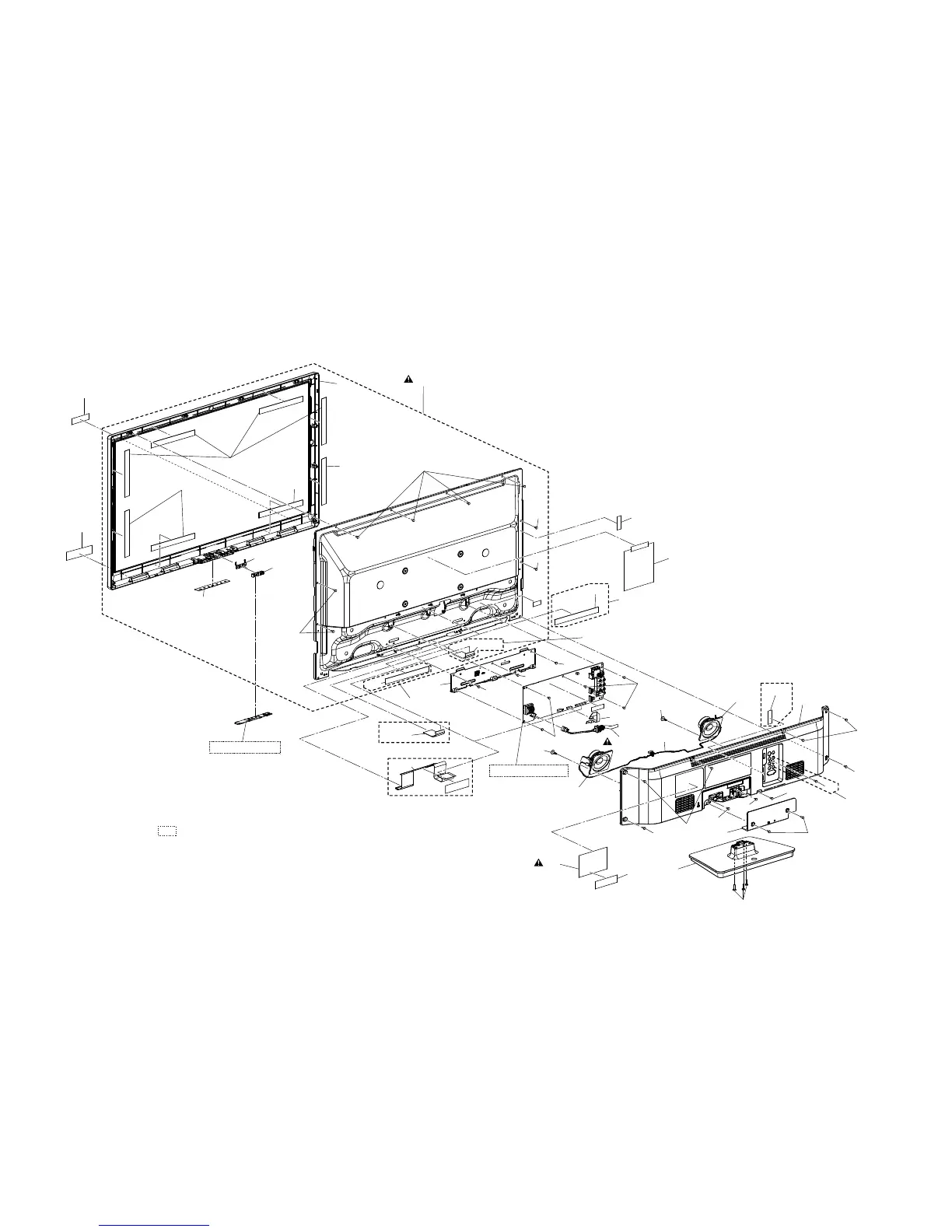

EXPLODED VIEWS
A15
See Electrical Parts List
for parts with this mark.
Digital Main CBA Unit
LCD1
[TYPE A, B, D, F, G]
[TYPE A, B, C]
[TYPE C]
[TYPE E]
[TYPE D, E, F, G]
A16
A17
AC601
SP3802
SP3801
L23
X6
L4
L24
A3
B2-2
L4
L23
B5
L4
B2-1
B2-1
B2-1
B2-1
L23
L4
CL3801
CL3101
CL3102
L4
S7
S7
L58
L23
Function CBA Unit
L24
L4
B2-1
“
*
” differs depending on the models.
B12
A9
A6
A1
SSK1
SA1
A23
L4
L26
L4
L4
L58
L23
B2-1
CL3102
CL3102
*
L4
[TYPE G]
[TYPE A, B, C, D, E, F]
