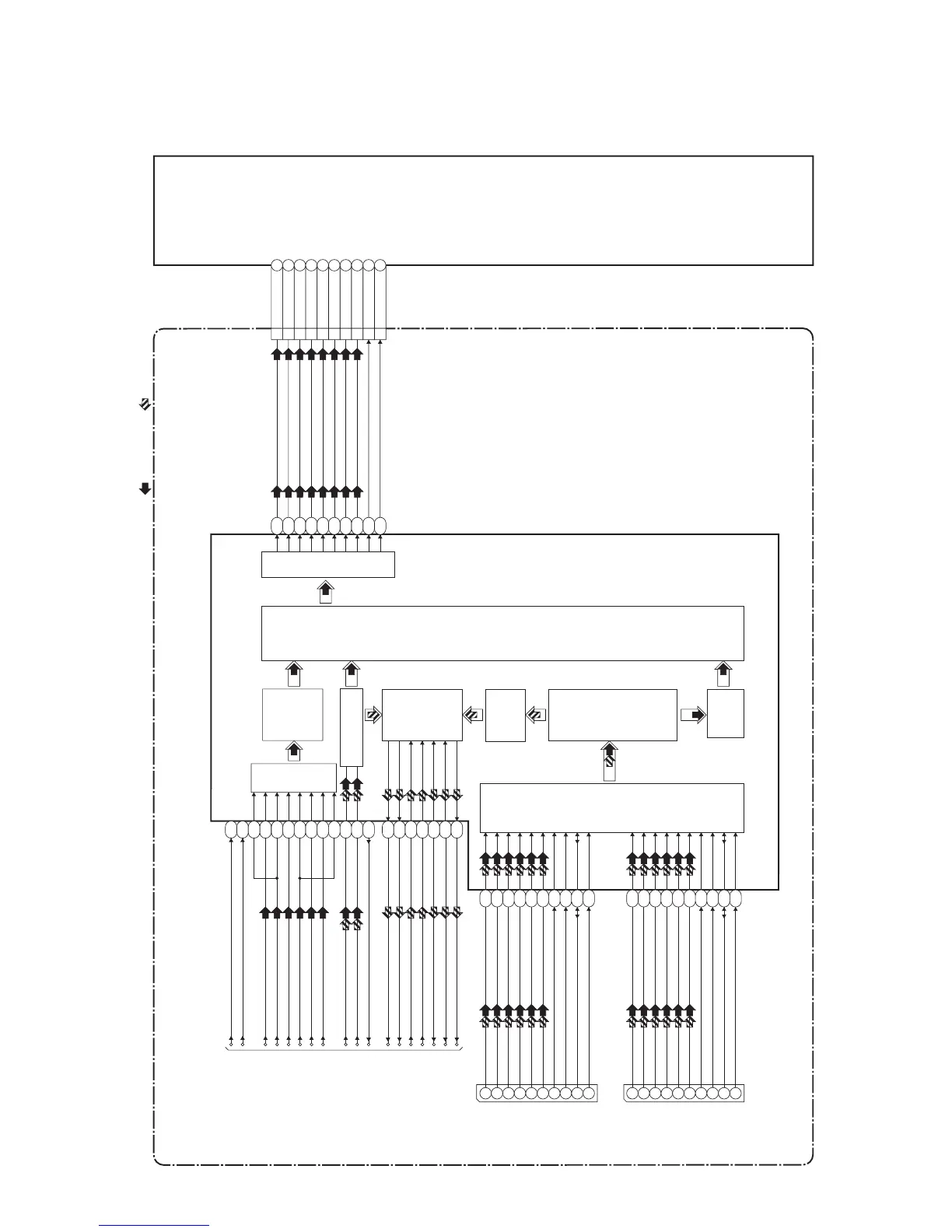

FUNAI LF320EM5F - Digital Signal Process Block Diagram

9-3
FL14.10BLD
DIGITAL MAIN CBA UNIT
IC3101 (DIGITAL SIGNAL PROCESS)
CN3102
DIGITAL SIGNAL PROCESS
HDMI-IN1 HDMI-IN2
JK3007
DATA0(+) DATA0(-) DATA1(+) DATA1(-) DATA2(+) DATA2(-) HDMI-DATA HDMI-CLOCK
7 9 4 6 1 3
10 12 16 15
7 9 4 6 1 3
10 12 16 15
JK3003
CLOCK(+) CLOCK(-)
AUDIO DECODER
HDMI I/F
HDMI SW
TO VIDEO/AUDIO BLOCK DIAGRAM
VIDEO DECODER
VIDEO SIGNAL
AUDIO SIGNAL
A/D CONVERTER
DEMODULATOR /MPEG DECODER
AUDIO I/F
DIF-OUT1 DIF-OUT2 IF-AGC
IF-AGC
LVDS TX
AMP(L)-OUT AMP(R)-OUT
SPDIF
AUDIO(L)-IN AUDIO(R)-IN HP(L) HP(R)
DATA0(+) DATA0(-) DATA1(+) DATA1(-) DATA2(+) DATA2(-) HDMI-DATA HDMI-CLOCK CLOCK(+) CLOCK(-)
46 47 35
34 44 45
62
156 155
2 1 4 3
154 153 139 140 148 147 150 149 152 151 146 145 135 134
50 49 48
90 89
88
84 83 82 81 86 85
91
17 16 14 13 11 10
8 7 5 4
RX0(-) RX0(+) RX1(-) RX1(+) RX2(-) RX2(+) RXCLK(-) RXCLK(+) RX3(-) RX3(+)
LCD PANEL ASSEMBLY
SW
VGA-R-IN VGA-G-IN VGA-B-IN
COM-VIDEO-Y/VIDEO-IN COM-VIDEO-Pb-IN COM-VIDEO-Pr-IN VGA-HSYNC VGA-VSYNC
VGA-HSYNC VGA-VSYNC
14
20 19 17 16 15 24 22 26 23
3. Digital Signal Process Block Diagram
