FUNAI LF320EM5F - Digital Main CBA Bottom View [TYPE E]

10-44
R3643
TP3904
TP3905
TP3907
TP3908
JK3703
TU3901
CN3009
TP3071
TP3070
TP3903
TP3038
TP3037
TP3709
TP3707
TP3706
TP3039
TP3602
TP3078
TP3603
TP3036
C3857
C3858
C3705
C3710
C3907
C3348
C3602
TP3906
TP3012
6
10
5
15
1
11
JK3701
JK3003
JK3005
JK3007
TP3050
TP3049 TP3048
TP3079
TP3082 TP3081
TP3080
TP3085
TP3084 TP3083
TP3703TP3704
TP3705
TP3708
TP3069
TP3068
TP3097
TP3047
TP3046
TP3003
TP3045
TP3123
TP3010
90
0.25
TP3101
TP3102
TP3103
TP3107
TP3108
TP3109
TP3110
TP3111
TP3113
TP3114
TP3115
TP3116
TP3117
TP3118 TP3119
TP3120
TP3121 TP3122
TP3124
TP3125
TP3126
TP3127
CN3104
TP3104
TP3105
TP3106
TP3137
TP3131
TP3135 TP3136
TP3138
TP3132
TP3133
TP3134
TP3011
TP3014
TP3605
TP3606
TP3601
TP3608
TP3112
C3605
C3611
C3632
C3829
TP3016
TP3013
TP3015
GP002
CN3801
TP3801
TP3803
TP3804
TP3802
TP3607
TP3201
C3620
C3210
C602
T601
BC601
D654
D655
C656
C3001
C3831
TP3611
TP3017
TP3612
COLD
HOT
L1001
D653
GP001
C654
C655
C657
C652
C653
C1001
C1002
BA4AFDG0201 1
C616
C650
IC602
D650
D651
D660
R601
R605
CN601
C603
C604
GT601
F602
C671
C672
SA601
SA602
T 2.5A L/250V
R602
C606
C614
D601
D602
D603
D604
D608
L601
C605
CN1001
C1018
R1015
C1006
C1007
TP1007
TP1006

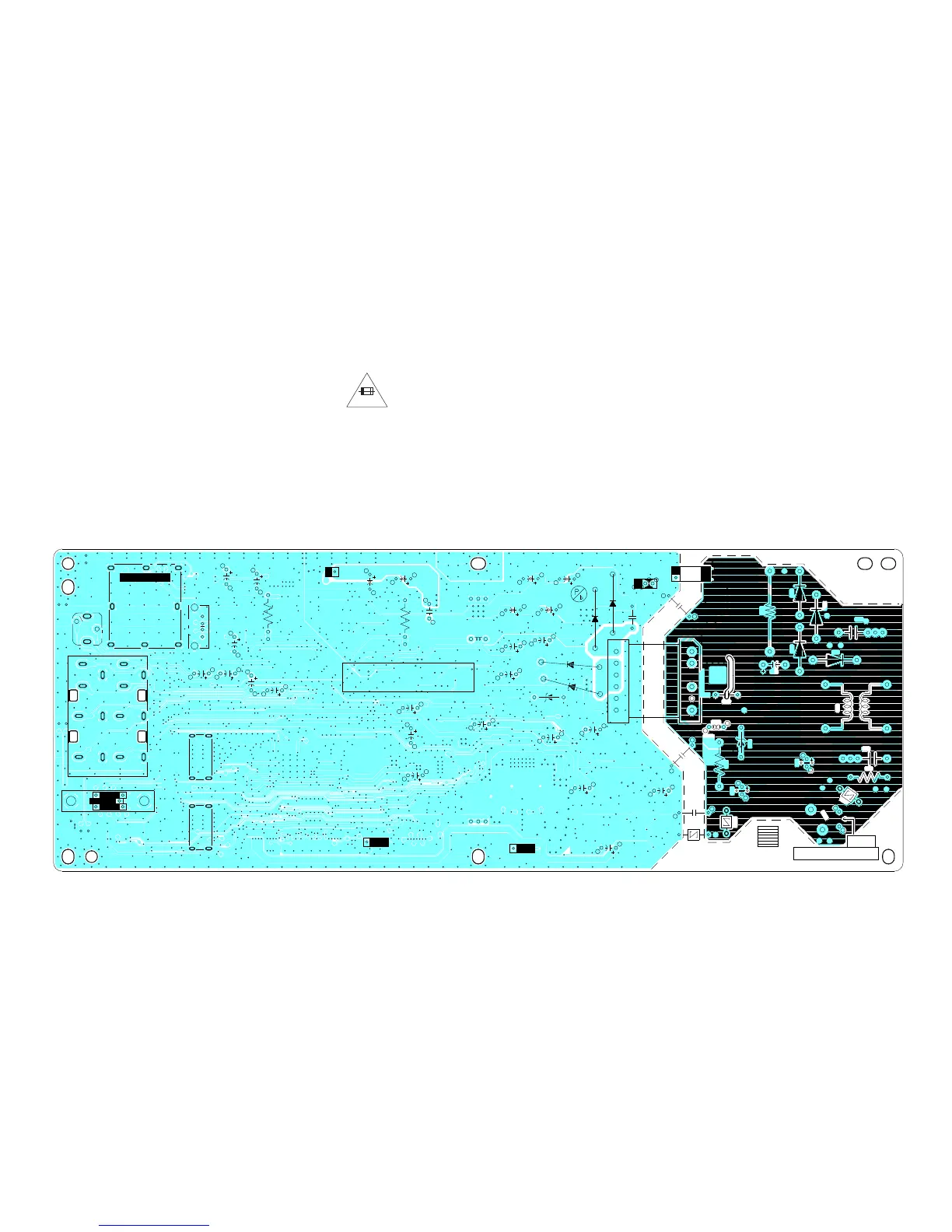

Digital Main CBA Bottom View [TYPE E]
BA4AFDG02011
Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F602) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
For continued protection against risk of fire,
replace only with same type 2.5A, 250V fuse.
CAUTION ! :
ATTENTION : Utiliser un fusible de rechange de même type de 2.5A, 250V.
2.5A 250V
