APPENDIX
A-6
CHART
DETAILS
(C-MAP
chart)

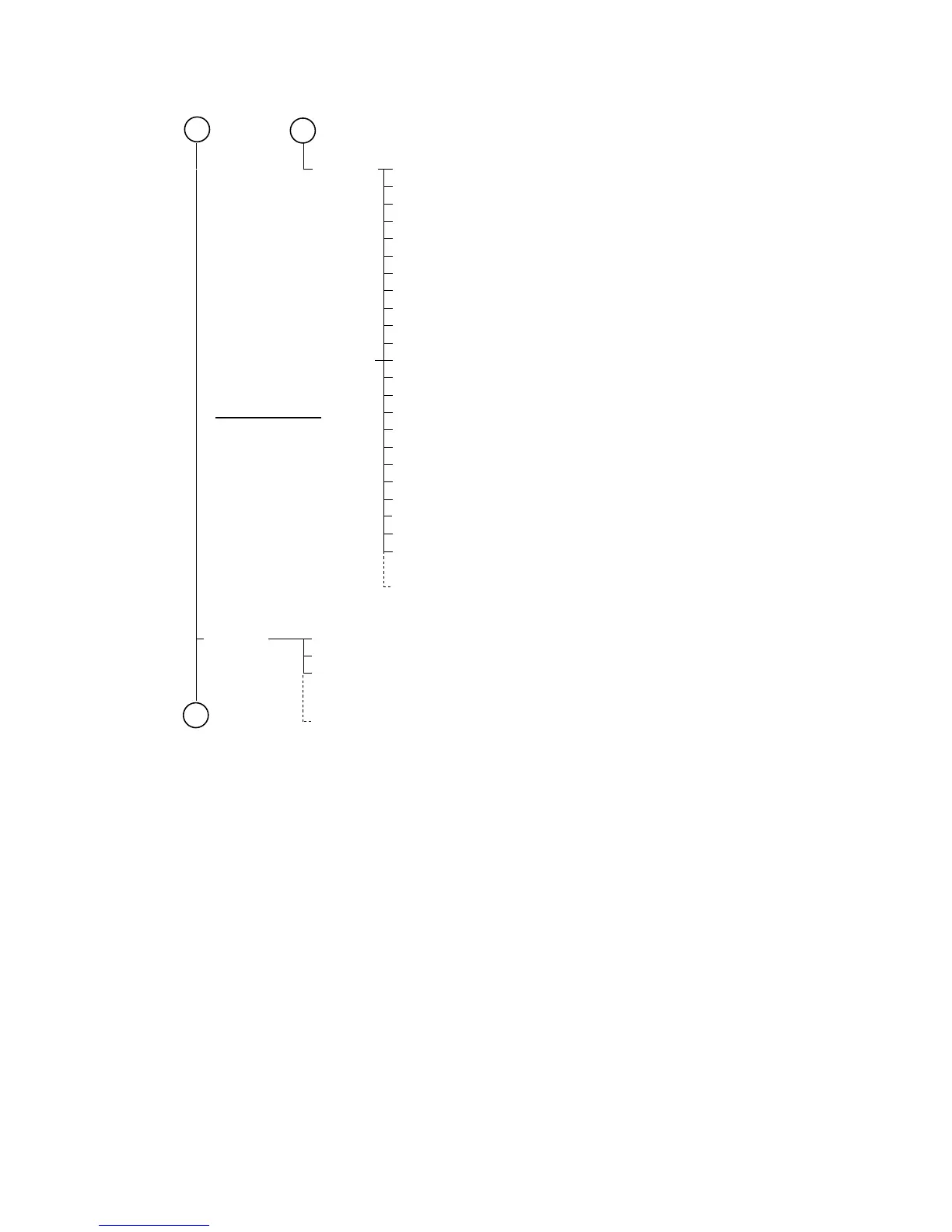

WAYPOINT SWITCHING
(PERPENDICULAR, ARRVL ALM CRCL, MANUAL)
COURSE VECTOR (VECTOR, LINE, OFF)
SET GOTO METHOD (1 POINT, 35 POINTS, 35PTS/PORT SVC)
PLOTTER
SETUP
WAYPOINT (PLOTTER/OVERLAY, PLOTTER, OFF)
WAYPOINT NAME (PLOTTER/OVERLAY, PLOTTER, OFF)
LAT/LON GRID (PLOTTER/OVERLAY, PLOTTER, OFF)
CHART BORDER LINE (PLOTTER/OVERLAY, PLOTTER, OFF)
BACKGROUND (WHITE, BLACK)
PORTS & SERVICE (PLOTTER/OVERLAY, PLOTTER, OFF)
ATTENTION AREA
( PLOTTER/OVERLAY, PLOTTER, PLOTTER CONTOUR, OFF )
NAV LANE (PLOTTER/OVERLAY, PLOTTER, OFF)
LIGHT
( PLOTTER/OVERLAY, PLOTTER, PLOT/NO SECTOR, OFF )
BUOY & BEACON (PLOTTER/OVERLAY, PLOTTER, OFF)
SIGNAL (PLOTTER/OVERLAY, PLOTTER, OFF)
CARTOGRAPHIC OBJECT (PLOTTER/OVERLAY, PLOTTER, OFF)
PLACE NAME (PLOTTER/OVERLAY, PLOTTER, OFF)
COMPASS (PLOTTER/OVERLAY, PLOTTER, OFF)
TIDE AND CURRENT (PLOTTER/OVERLAY, PLOTTER, OFF)
NATURAL FEATURE (PLOTTER/OVERLAY, PLOTTER, OFF)
RIVER & LAKE (PLOTTER/OVERLAY, PLOTTER, OFF)
CULTURAL FEATURE (PLOTTER/OVERLAY, PLOTTER, OFF)
LANDMARK (PLOTTER/OVERLAY, PLOTTER, OFF)
CHART GENERATION (PLOTTER/OVERLAY, PLOTTER, OFF)
NEW OBJECT (PLOTTER/OVERLAY, PLOTTER, OFF)
COMPLEX OBJECT ICON (SINGLE, MULTIPLE)
INFORMATION LEVEL (BASIC, DETAILED)
DEPTH INFO soft key (See left margin.)
Page 1
Page 2
1
2
D. BOX soft key (Same items as for D. BOX soft key on the RADAR
DISPLAY SETUP menu. See page A-1.)
3
DEPTH INFO soft key
BATHYMETRIC LINE
(PLOTTER/OVERLAY,
PLOTTER, OFF)
SPOT SOUNDING
(PLOTTER/OVERLAY,
PLOTTER, OFF)
BOTTOM TYPE
(PLOTTER/OVERLAY,
PLOTTER, OFF
DEPTH AREA LIMIT (33 ft)
BATHYMETRIC RANGE (0-33 ft)
