2.25.5 Vectors
You can show or hide the vector for own ship and reference targets, on the [NAV
TOOL] menu.
2.25.6 Barge marker
The length and breadth of the total barge size can be displayed as a simple rectangle
on the radar display. Up to five rows of barges and nine barges per row can be shown.
This feature is available with an installation preset. Set up barge information as fol-
lows:
1. Open the menu then select [3 NAV TOOL].

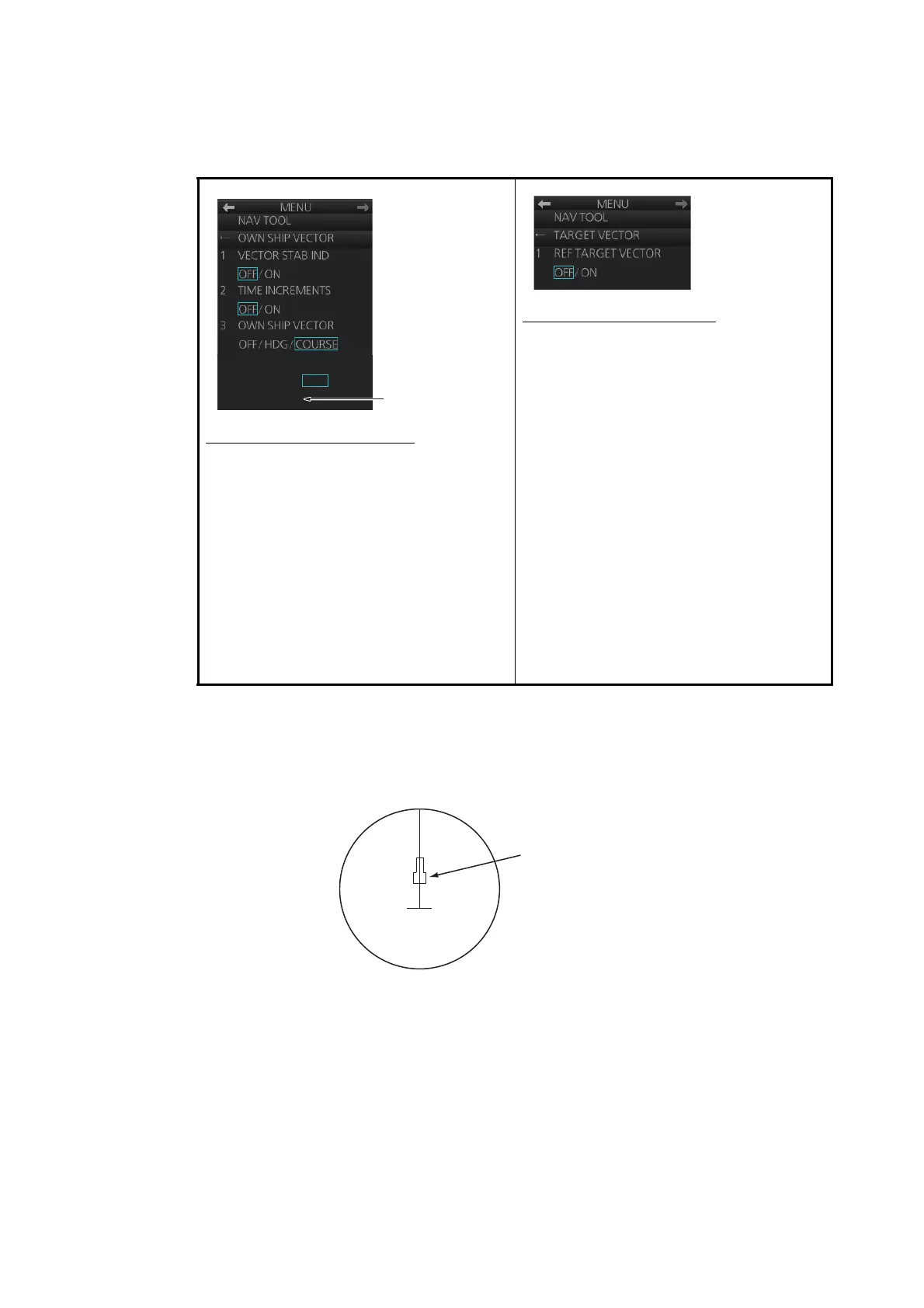

[OWN SHIP VECTOR] menu
[VECTOR STAB IND]: Turn ON to show
double arrow for ground tracking; single
arrow for water tracking.
[TIME INCREMENTS]: A short horizontal
line can be marked on the own ship vector
in one-minute intervals to show approxi-
mate later positions.
[OWN SHIP VECTOR]: Turn vector OFF,
or show ship's heading or course with a
vector.
[VECTOR COLOR]: Set the vector color
for own ship.
[TARGET VECTOR] menu
[REF TARGET VECTOR]: Turn the vector
for the reference target on or off.
4
VECTOR COLOR
GRN / BLU / CYA /
MAG / WHT
WHT is replaced
with RED with A
and B types.
Barge mark
