56

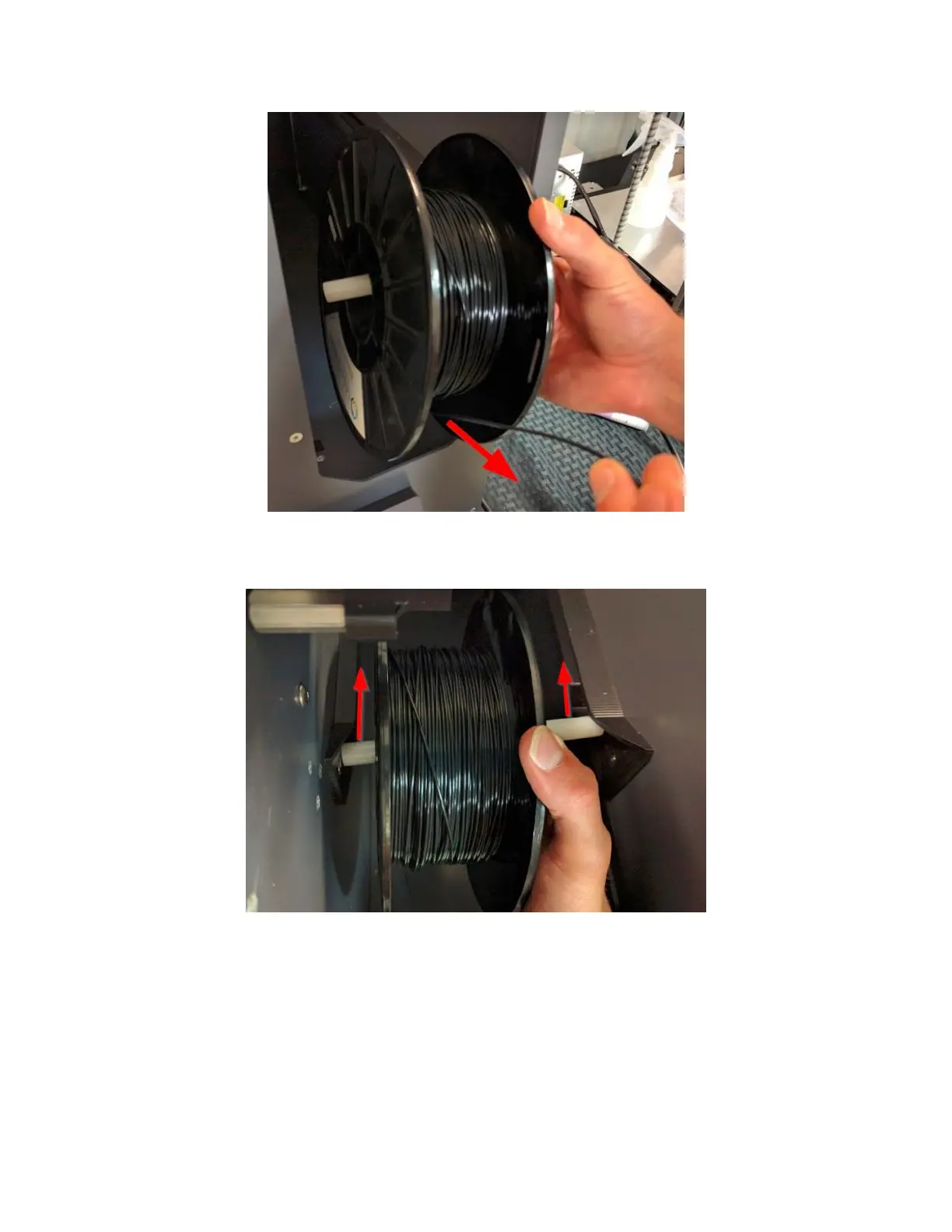

Place a hand on either side of the spool, using your fingers to hold the dowel in place. Slide the dowel into the
tracks located on either side of the filament bay.
Continue sliding back until you feel the dowel drop into the detents in the track.
Now take the end of your filament and free it from the spool.
IMPORTANT: Try to avoid letting go of the free end. It can wrap under itself on the spool and cause the print to
fail.
If the filament has been used before, trim off any length that’s been melted or fed through the extruder. You can
tell by the small teeth marks on the filament if it’s been fed through the extruder before.
