Fusion3 Design F400 - Removing & Installing the Extruder

87
11.10 Removing & Installing the Extruder
We recommend unloading filament before removing the extruder.
Printer must be powered off.
11.10.1 Removal

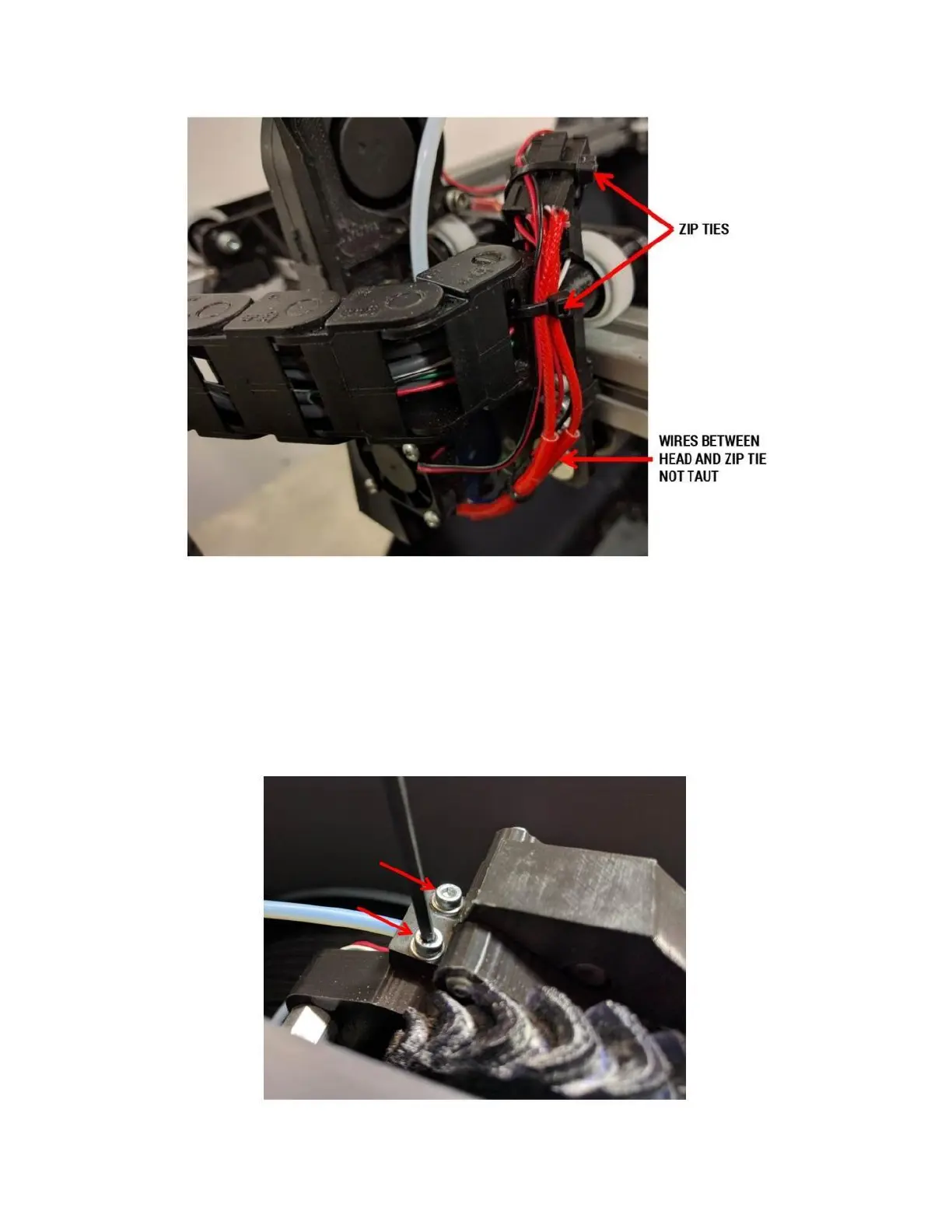

Use the 2.5mm wrench from your toolkit to remove the 2 M3 screws that hold the feed tube clamp in place. Lift
the feed tube clamp straight up.
