If One Cable is Loose, or You are Adjusting the X Axis Square:
You will need a 4mm hex wrench and a 10mm wrench.

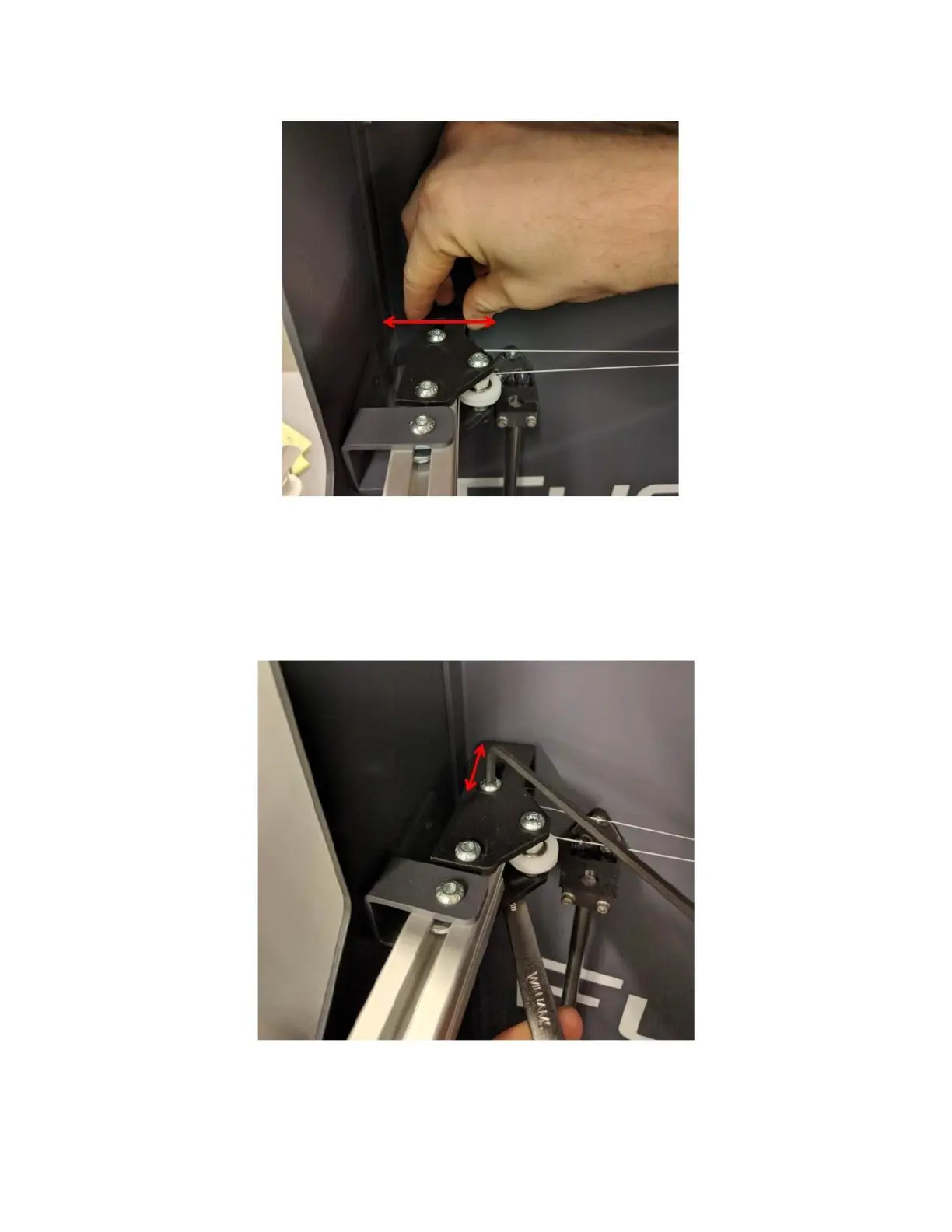

At the rear of the print volume there is a bracket that holds 2 idler pulleys on each Y rail. One of these pulleys is
mounted in a slot. By loosening the screw you can slide the pulley to adjust the tension.
Once you adjust the pulley, tighten the screw and re-check the square.
