Fusion3 Design F400 - Page 85

85

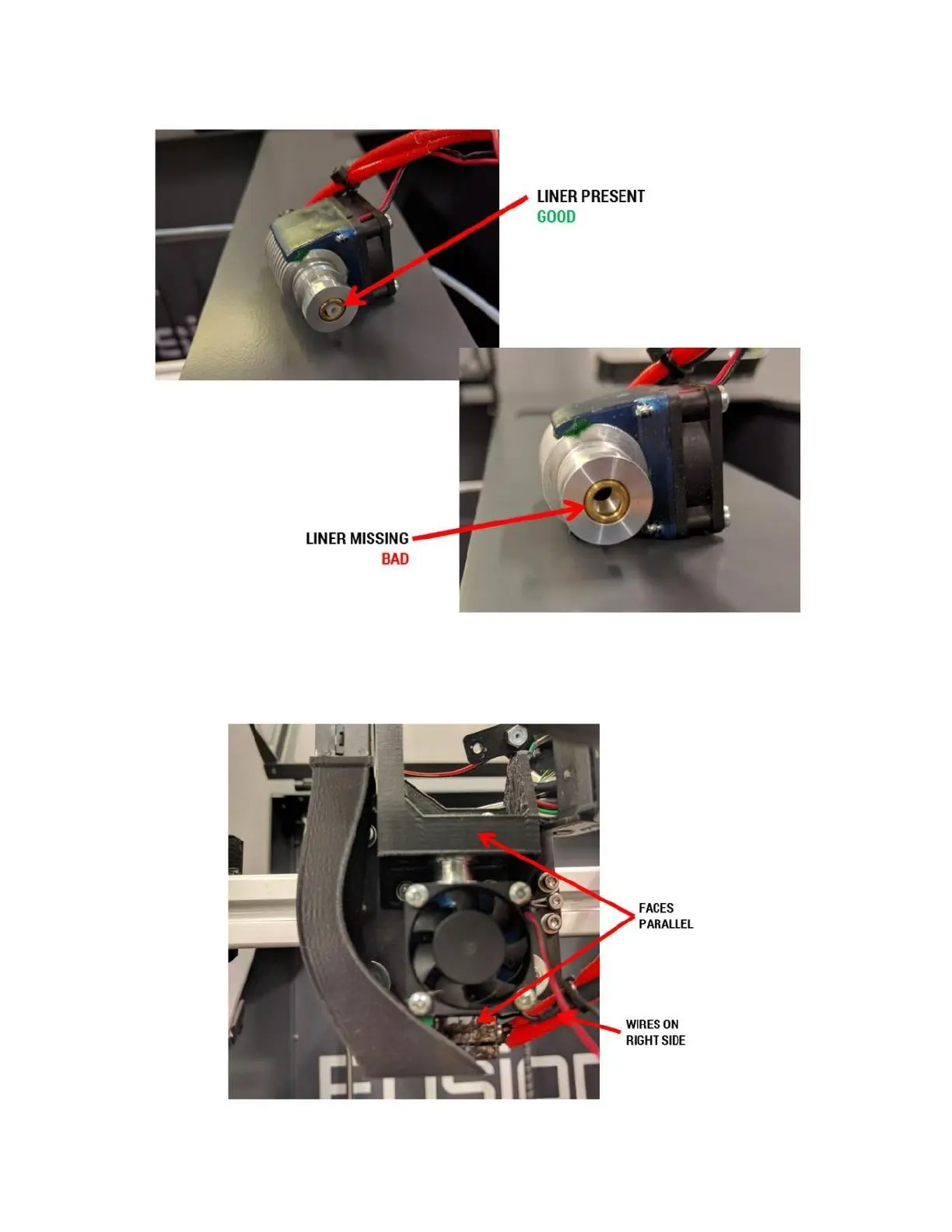

Press the print head into the pocket on the underside of the part. It should be a light press fit so you can press it in
and then it will stay put by itself. Orient the print head so the flat face of the heater block faces forward and the
wires exit on the right side.
