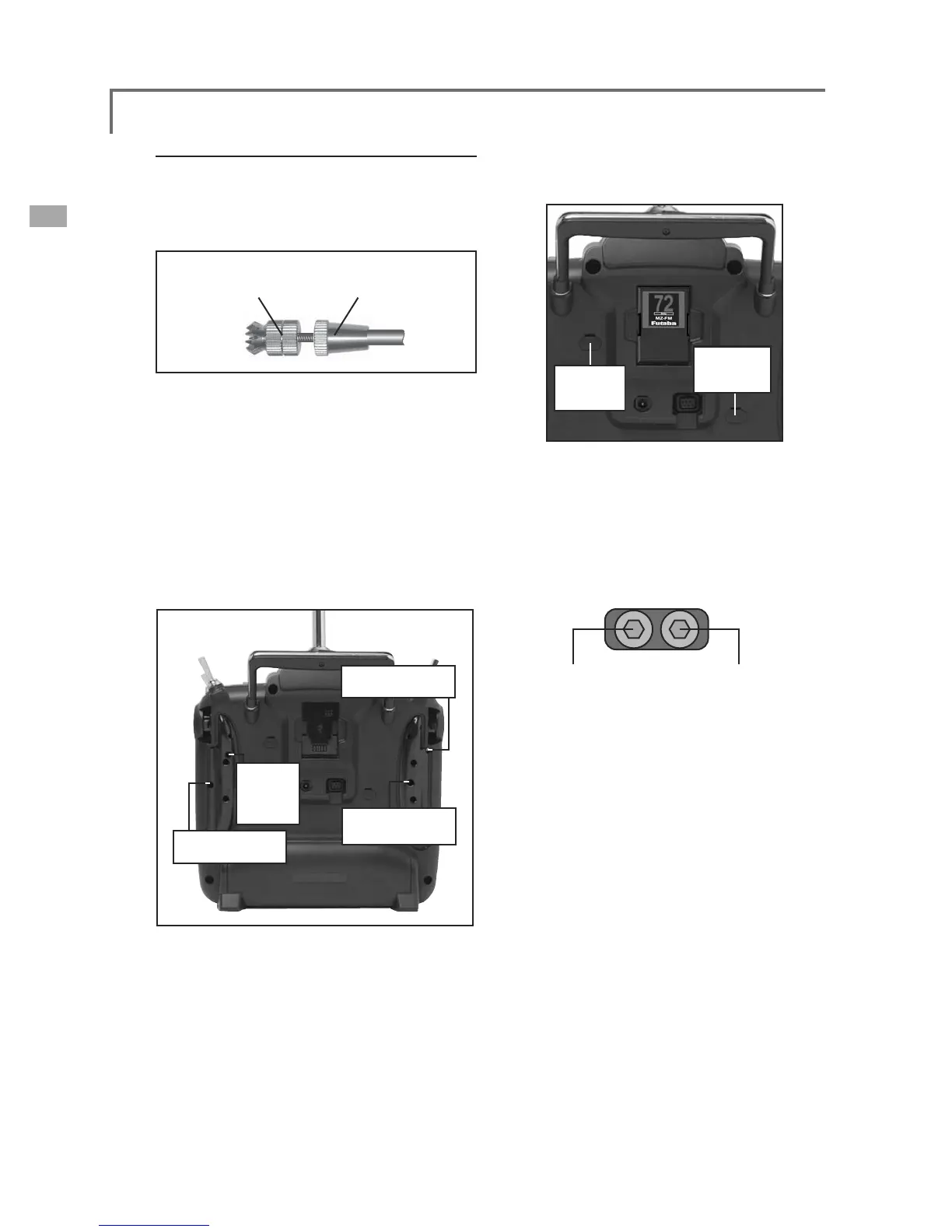

<Before Use>
Stick Adjustment
Adjustment of the stick lever length
<RXFDQDGMXVWWKHOHQJWKRIVWLFNOHYHUVDV\RX
OLNH,WLVUHFRPPHQGHGWRDGMXVWWKHOHQJWKRIWKH
sticks in line with your hand size.
Lever Head
A
Lever Head
B
1. Hold the lever head "B" and turn the lever
head "A" counter-clockwise. The lock will be
released.
2. Turn the lever-head "A" clockwise as you hold
the lever-head "B" after placing it as you like.
Adjustment of stick lever tension
The tension of the self-return type stick lever can
EHDGMXVWHG
1. Remove the rubber grip on the back of the
transmitter.
Ɣ6WLFN
7HQVLRQ
(J1)
0RGH
Ɣ6WLFN7HQVLRQ-)
0RGH
Ɣ6WLFN7HQVLRQ-4)
0RGH
Ɣ6WLFN7HQVLRQ-3)
0RGH
2. Use the accessory 1.5mm hexagonal wrench
to adjust the spring strength as you prefer by
turning the adjusting screw of the stick you
want to adjust.
*Turning the screw clockwise increases the tension.
CAUTION: If you loosen the screw too much,
the stick may not operate because it is
caught internally.
3) At the end of adjustment, re-install the
rubber grip.
Adjustment of Throttle Stick (Ratchet System)
You can also choose either airplane ratchet
system or helicopter-touch.
Ɣ5HWDLQLQJ
)RUFH-
0RGH
Ɣ5HWDLQLQJ
)RUFH-
0RGH
1. Open the dust protection cap on the back
of the transmitter that is covering the hole for
throttle stick adjustment.
2. Use the attached 1.5mm hexagonal wrench
to turn the adjustment screw and set it as you
prefer. Turning the screw clockwise increases
the tension.
Hole for throttle
stick adjustment
For airplane (Mode1)
For helicopter (Mode2)
For helicopter (Mode1)
For airplane (Mode2)
*This transmitter has two ratchet plates, one for airplane
and the other one for helicopter. If you tighten both screws,
\RXZRQWEHDEOHWRDFKLHYHWKHDGMXVWPHQWWKDW\RXQHHG
EHFDXVHRIWKHRYHUODSRIWKRVHWZRDGMXVWPHQWV
*If you want to change the setting from airplane to helicopter
(or from helicopter to airplane), turn counterclockwise until
the throttle stick moves freely. Then turn the screw for the
helicopter (or airplane) until you get the tension you like.
