22
Wheel Spring
Cover
Screw
Wheel
1

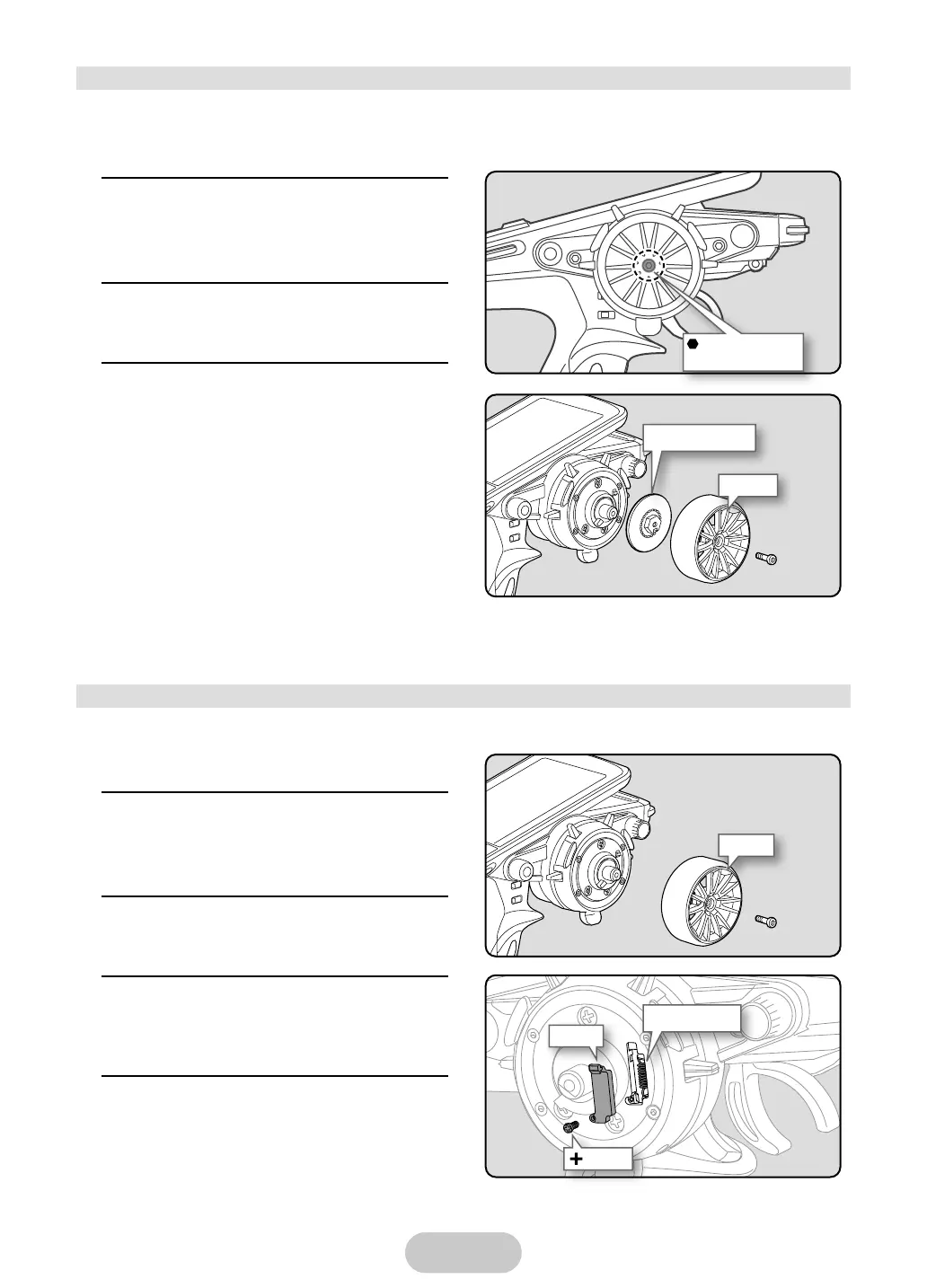

Hold the wheel and remove the screw.
(Using a hex wrench.)
1
Hold the wheel and remove the screw.
(Using a hex wrench.)
- Obtain hex wrench./ Remove the battery.
- Obtain hex wrench / phillips screwdriver / tweezers / Remove the battery.
2
Pull off the wheel and wheel adapter.
2
Pull off the wheel and wheel adapter.
3
Install the standard or large diameter
steering wheel and the 32 degree wheel
adapter using the screw.
(Using a hex wrench.)
3
Remove the wheel spring cover mount-
ing screw.
(Using a screwdriver.)
4
Replace the wheel springs with twee-
zers.
(Using a tweezers.)
Exchange procedure to wheel adaptor 32 deg and large diameter wheel
Exchange procedure to wheel tension spring (spring is optional)
Steering wheel
mounting screw
Wheel
Wheel adapter
With Wheel adapter
- Adjust the scale of the steering channel
accordingly by using the "Calibration
Function (System menu)".
