9
Communication port
Charging jack for
Lipo
Lipo charge LED
Used when using
the optional Lipo
battery.
Edit button 1 ES1
Edit button 2 ES2
Edit button 3 ES3
Multiport
*Future extensions Not used as of Sep. 2021.
BPS: Body Push switch
SW4
3-position switch SSW1
Push switch SW3
Push switch SW7
Push switch SW6
Grip switch SW2
Digital Trim
DT5
Digital Trim
DT6
(Steering D/R)
(Brake ATL
)
Push switch SW1
Digital Trim
DT3 (CH3)
Digital Trim
DT4 (CH4)
Digital Trim
DT2
（Throttle ）
Digital Trim
DT1
（Steering ）
Paddle switch
PD1
Paddle switch
PD2
Brake lever re-
placement screw

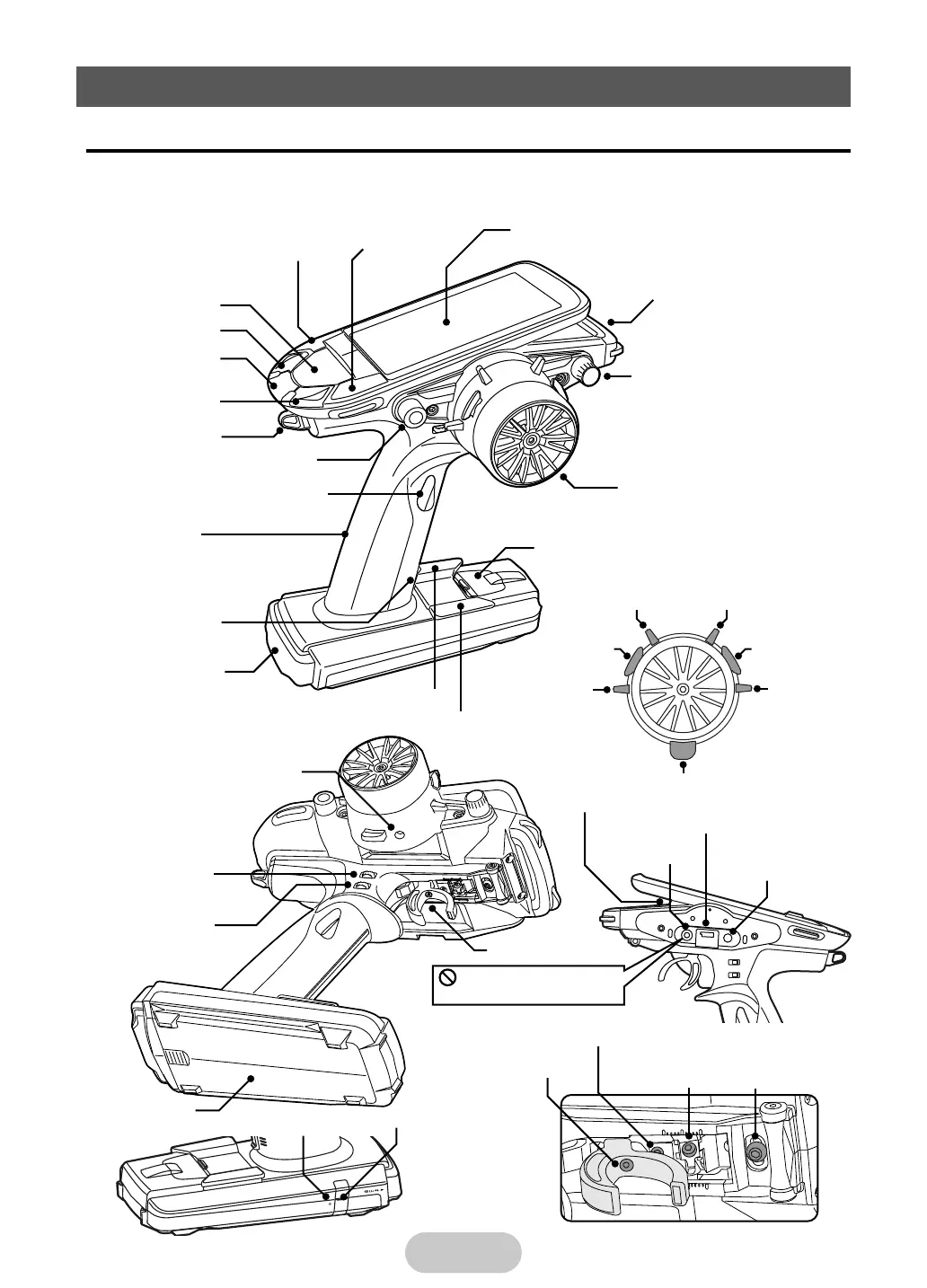

Nomenclature
Transmitter T10PX
*The switches, dial, and trimmers in the gure are shown in the initial setting position.
*Please be careful not to push the switch too strongly.
Grip Handle
A vibration motor is built into the grip han-
dle and racing timer time-up, low battery
alarm, telemetry alarm, etc. Can be gener-
ated by vibration.
Digital Dial (DL1) /
Push switch 5 (SW5)
Power switch
Display switch
Steering wheel
Touch screen LCD
Home button
Hook
Throttle trigger
Wheel tension
adjusting screw
Trigger tension
adjusting screw
Battery cover
Trigger slide
mounting screw
Earphone Jack
Non-telemetry LED
Antenna
Charging jack
Mechanical ATL
adjusting screw
Do not charge the Lipo
battery from here
.
