When Removing The Paddle Switch
If the paddle switch interferes with operation, you can
remove the paddle switch in the following ways.

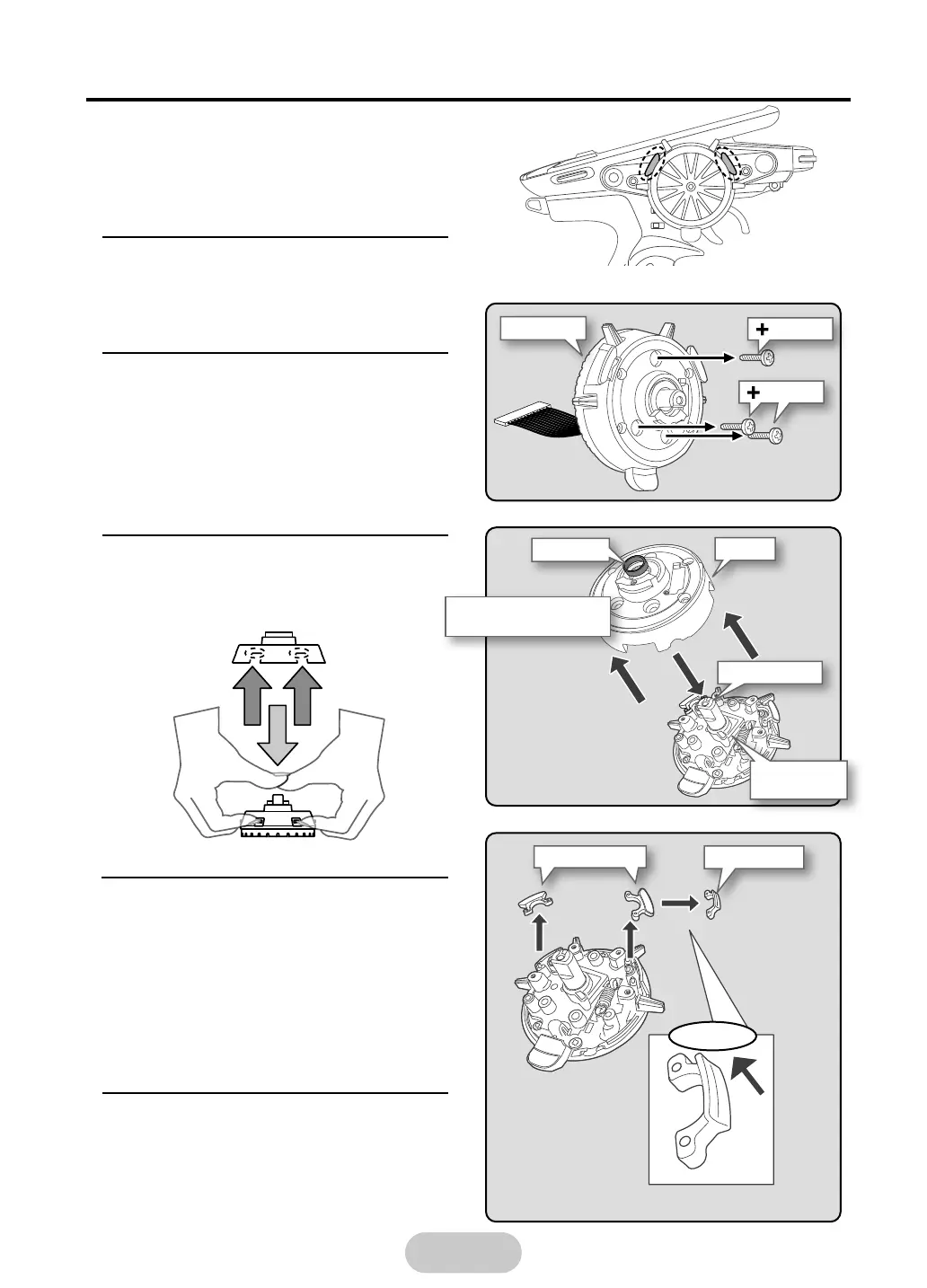

1
Remove the wheel unit from the trans-
mitter according to "Installing the acces-
sory APA steering wheel offset adapter".
Blind paddle
Paddle switch
Blind paddle
2
Use a Phillips screwdriver to remove the
three M2.6 x 8 screws.
3
Remove the cover while pressing the
tip of the handle shaft. Be careful not to
lose the shaft ring on the cover.
4
Replace the paddle switch by inserting
the attached Blind paddle from above.
5
Carefully assemble in the reverse order.
- Be careful not to forget to attach each part.
Cover
Handle shaft tip
M2.6×8
M2.6×8
Do not disas-
semble
Front side
Wheel unit
Push
Pull up
Pull up
Shaft ring
Be careful not to lose the
shaft ring on the cover.
