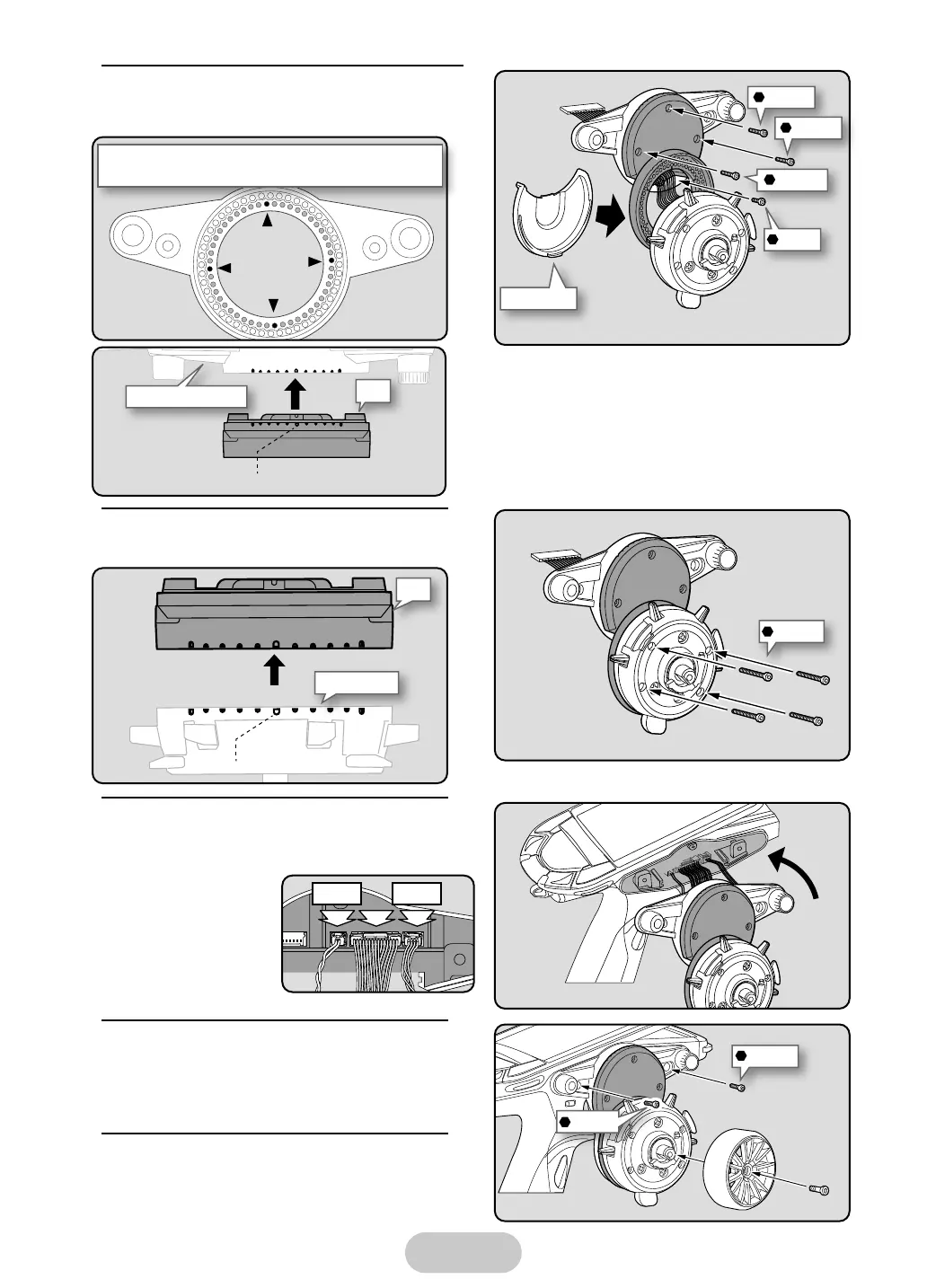

Attach the wheel unit to the APA with
four M2×19 screws.
1 1
Attach the assembled steering unit
to the body with two M3x12 screws.
(Using a hex wrench.)
8
Fit the rear cover and attach the APA to
the steering housing with three M2x10
screws and one M2x6 screw.
M2×6
Rear cover
*The rear cover depends on the size of the APA.
Wheel unit
M3×12
M2×10
M2×19
APA uses the inside holes. The mounting angle in
the direction of rotation can be adjusted.
Normal
screw
position
Adjust the angle with the position mark.
APA
Steering housing
1 0
Install the assembled steering unit to
the transmitter body.
- From left to right, the
order is 2 pin connec-
tor, 15 pin connector,
4 pin connector.
- Use the accessory screws and the
transmitter screws.
-There are extra screws in the accesso-
ries.
APA
Adjust the angle with the position mark.
1 2
Insert the wheel and hold the wheel
and attach the screw.
(Using a hex wrench.)
M2×10
M2×10
M3×12
2 pin 4 pin
- Install slowly so that
the wiring is not
pinched.
- Do not overtighten these four screws.
