Future Diagnostics CareTouch - Display Screen; Test Strip

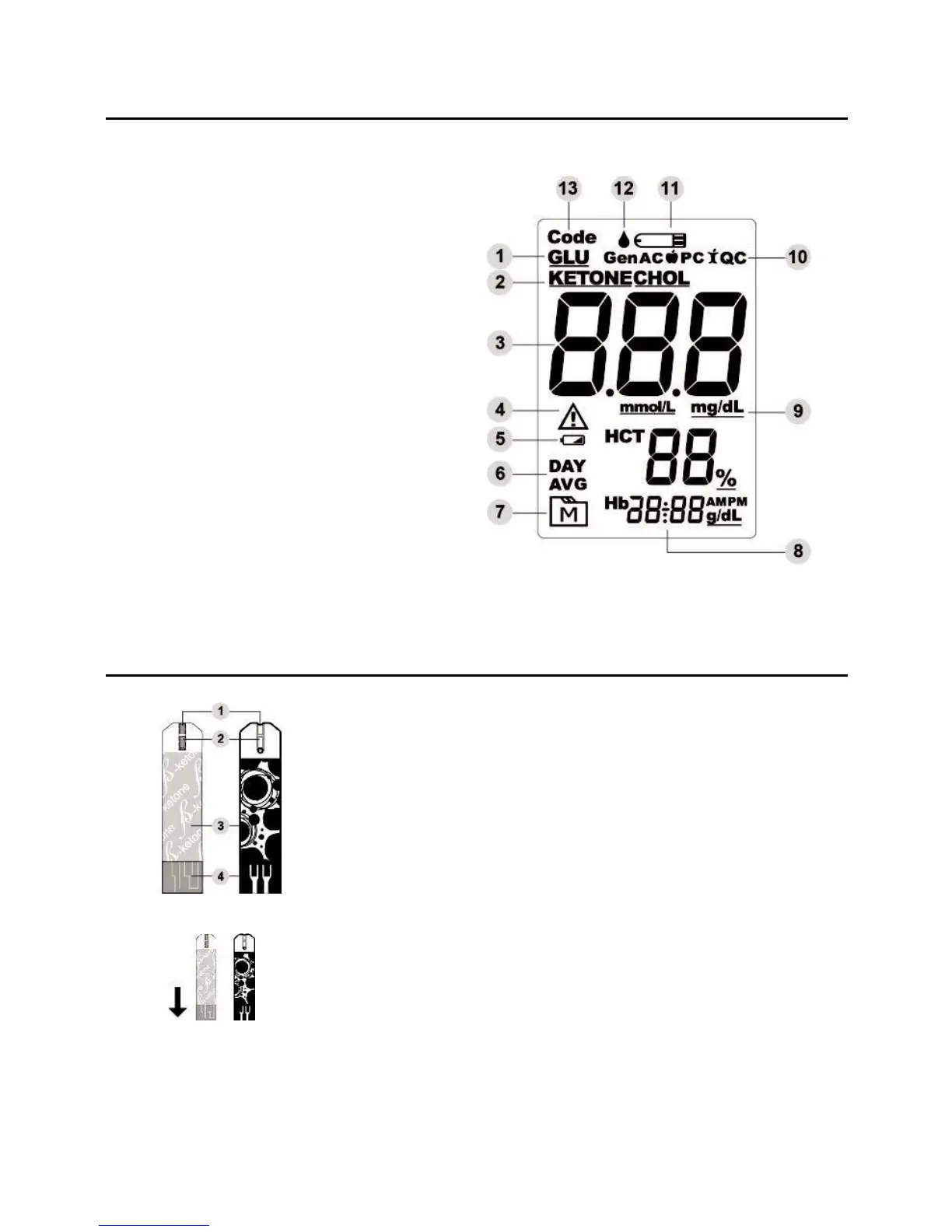

Display Screen
1. Glucose Symbol
2. Ketone Symbol/
Ketone Warning
3. Test Result
4. Warning Symbol
5. Low Battery Symbol
6. Day Average
7. Memory Symbol
8. Date/Time
9. Measurement Unit
10. Measurement Modes
AC – before meal PC
– after meal Gen –
any time of day
QC – control solution test
11. Test Strip Symbol
12. Blood Drop Symbol
13. Code
Test Strip
1. Absorbent hole
2. Confirmation window
3. Test strip handle
4. Contact bars
Attention:
The front side of the test strip should face up when
inserting the test strip. Test results might be wrong if
the contact bar is not fully inserted into the test slot.
4
