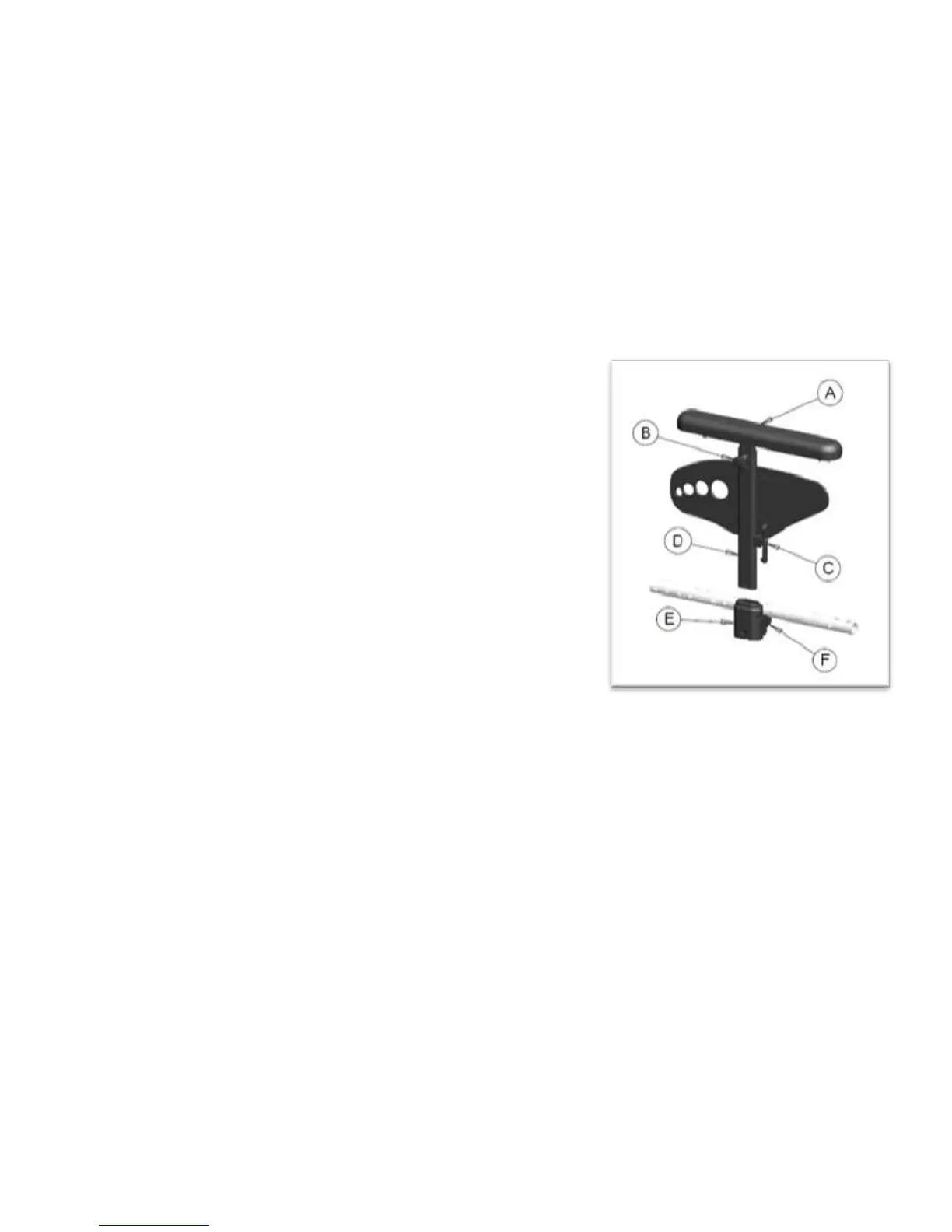

HEIGHT ADJ. T-STYLE KNOB RELEASE ARM
1. Installation
a. Slide the main armpost into the receiver mounted to the seat frame tube.
b. The armrest will automatically lock into place, engaging the release lever.
2. Height Adjustment
a. Turn the release knob counter-clock wise to disengage the ball pin.
b. Slide armrest pad up or down to desired height. Listen for the “clicks” to
verify position.
c. Turn the release knob clock wise to lock the armpost.
d. Push arm pad to check that it is locked firmly into place.
3. Removing Armrest
a. Press the release lever to disengage and remove the armrest.
4. Frame Adjustment Position
a. Remove armrest from chair.
b. Remove the two screws holding the receiver in place.
c. Move the receiver to the required position.
d. Replace the two screws holding the receiver.
e. Re-install the armrest into the receiver.
