WC CAPELLA ENGLISH CDN 540 REV10.DOCX 35 CAPELLA
TRIGGER CABLE ADJUSTMENT

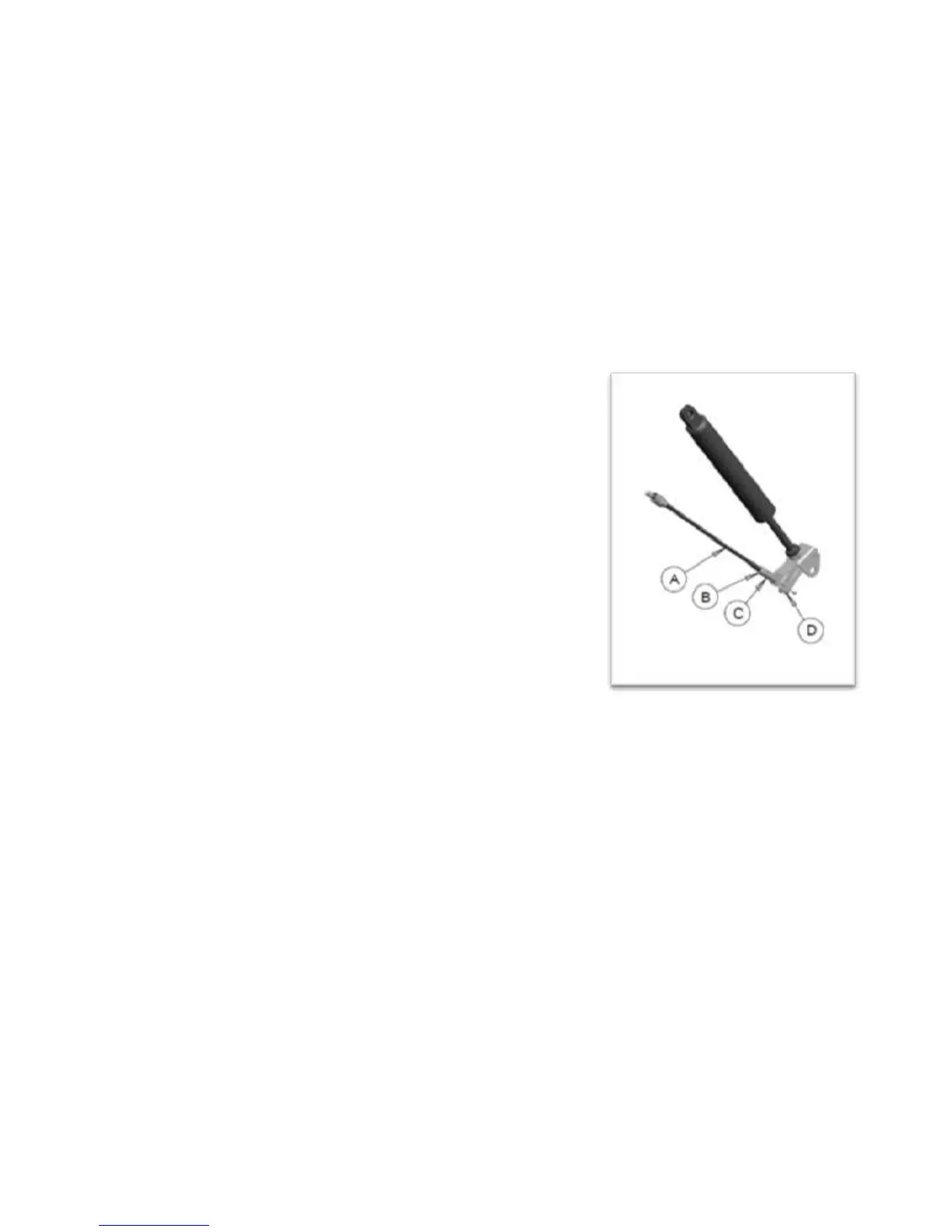

a. Loosen jam nut (B) on end of split cable (A).
b. Rotate hex barrel spacer (C) to lengthen or shorten cable end ball.
c. The slack from the cable end should be removed when the tilt release
lever (D) is fully out. This will be when the trigger handle is released.
d. The gas cylinder should be allowed to lock when the rod end pin on the
gas cylinder is extended when the handle is released.
