CHAIR WIDTH ADJUSTMENT
Note - For chair width adjustment all components such as the Lower Frame, Seat Frame,
Front H-Link and Rear H-Link must be adjusted.

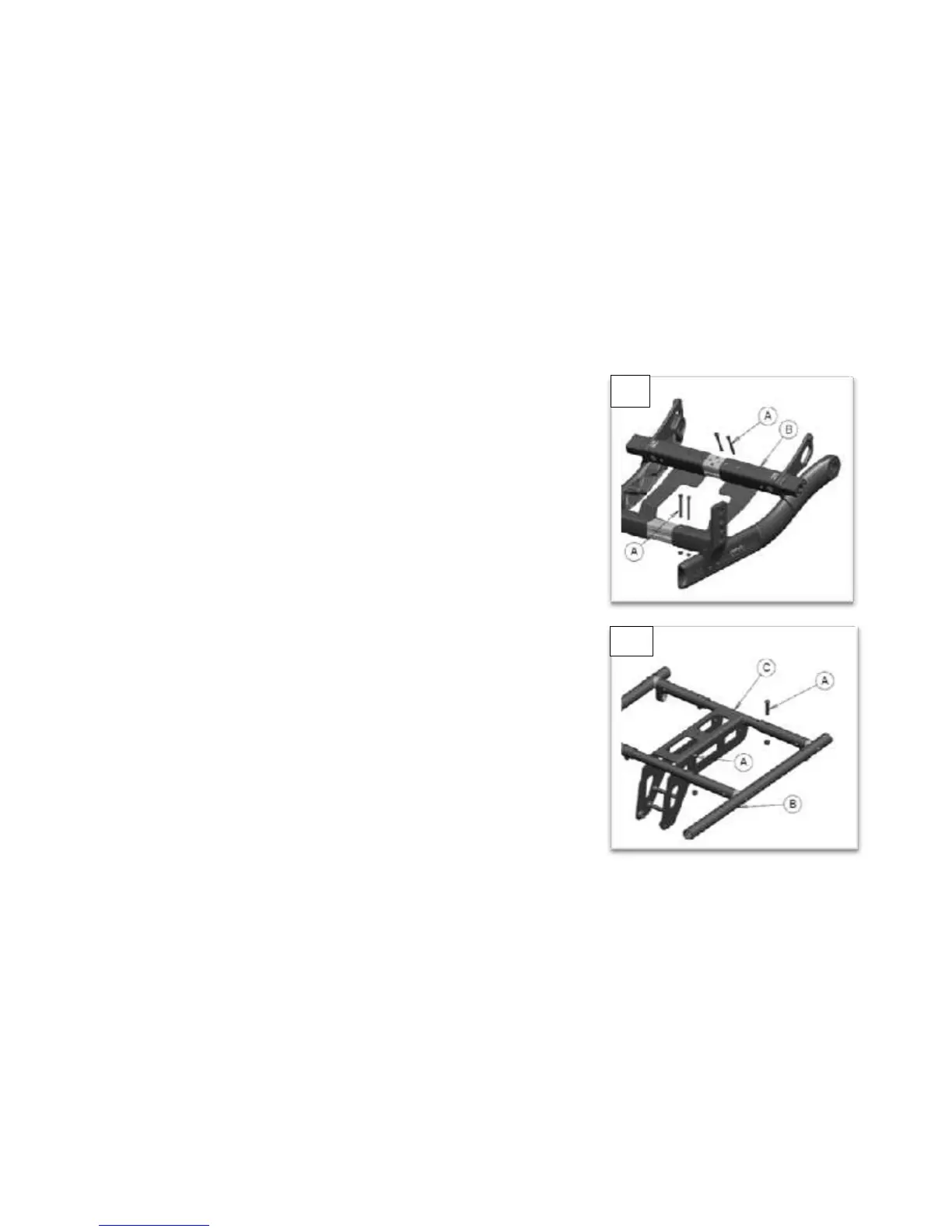

1. Lower Frame Width Adjustment
a. To adjust, loosen and remove all nuts from screws (A) on one side of the
lower frame (B) cross tubes.
b. Slide the lower side frame to the desired width using the pre-set holes in
both the side frame cross tube and center tube. (See Lower Crossbar Set-
Up Chart)
c. Replace and tighten screws.
d. Repeat procedure for other side of lower frame. Check overall width to
confirm.
2. Seat Frame Width Adjustment
a. To adjust, loosen and remove all screws (A) on one side of the seat frame
(B) cross tubes.
a. Slide the seat frame to the desired width using the pre-set holes in both
the seat frame cross tube (B) and center tube (C). (See Seat Frame
Set-Up Chart)
b. Replace and tighten screws.
c. Repeat procedure for other side of seat frame. Check overall width to
confirm.
