REAR ANTI-TIPS

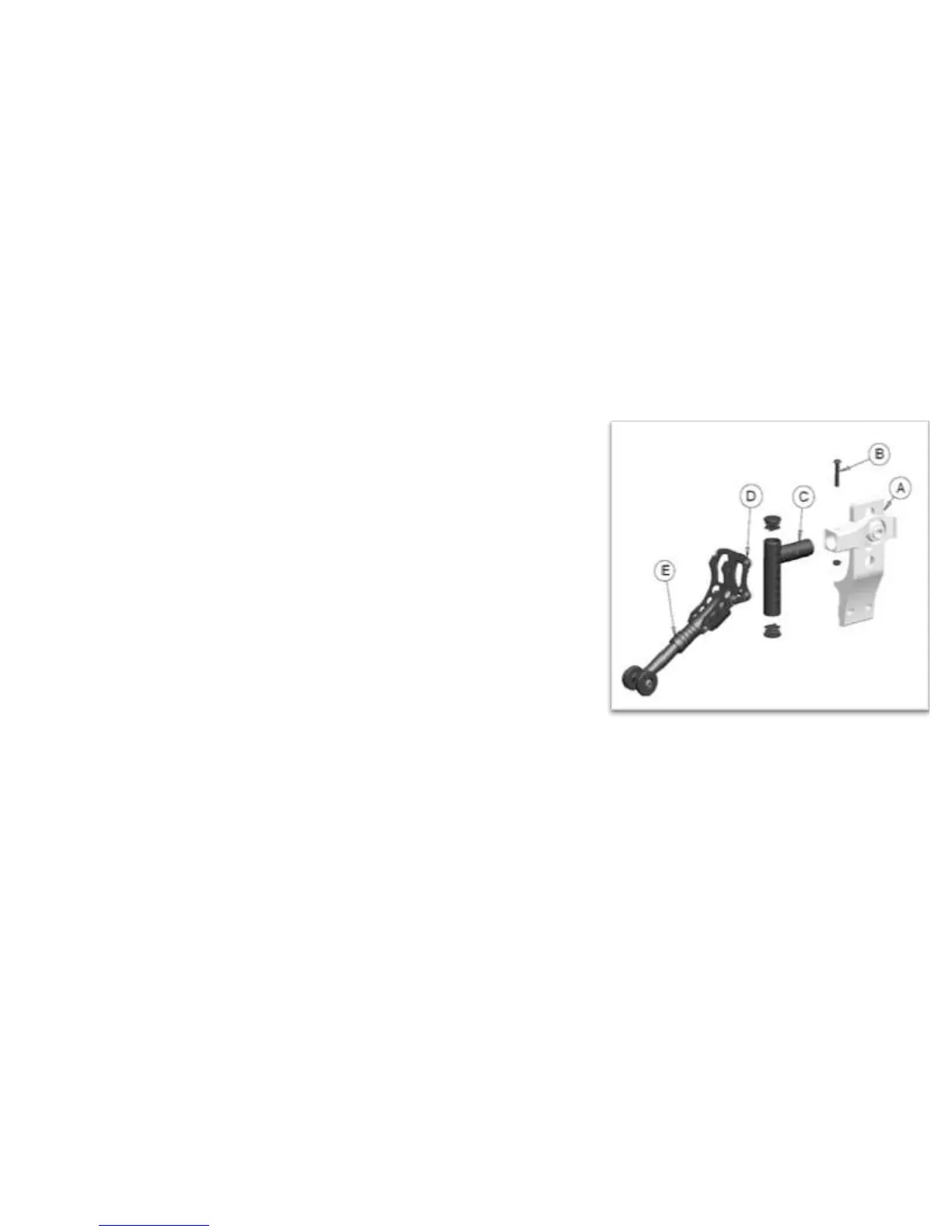

1. Installing Rear Anti-tips onto Frame
a. Loosen and remove lock-nut from bolt (B).
b. Insert anti-tip mounting tube (C) into mounting bracket (A).
c. Replace and tighten lock-nut.
2. Height Adjustment
The anti-tip tube wheels may have to be raised or lowered to achieve proper ground
clearance of (1-1/2" to 2").
a. Loosen and remove lock-nuts from bolts (D).
b. Insert anti-tip onto anti-tip mounting tube (C) in desired location using pre-
set holes.
c. Replace and tighten lock-nuts.
3. Flipping Up Anti-tip
a. Pull the sleeve (E) on the anti-tip out towards the wheel to release the pin
engagement
b. Rotate the anti-tip up until the pin engages in the upper slot.
c. The same procedure is used to flip the anti-tip down.
