SEAT DEPTH ADJUSTMENT
Note - The seat depth grows from the front of the chair for the Capella 45. The footrest
hanger is moved forward to grow the depth as required. For the Capella the front footrest
hangers remain fixed and the depth is grown from the rear by changing the side seat rail
(A) 15”-16”, 17”-18”and 19”-20” lengths.

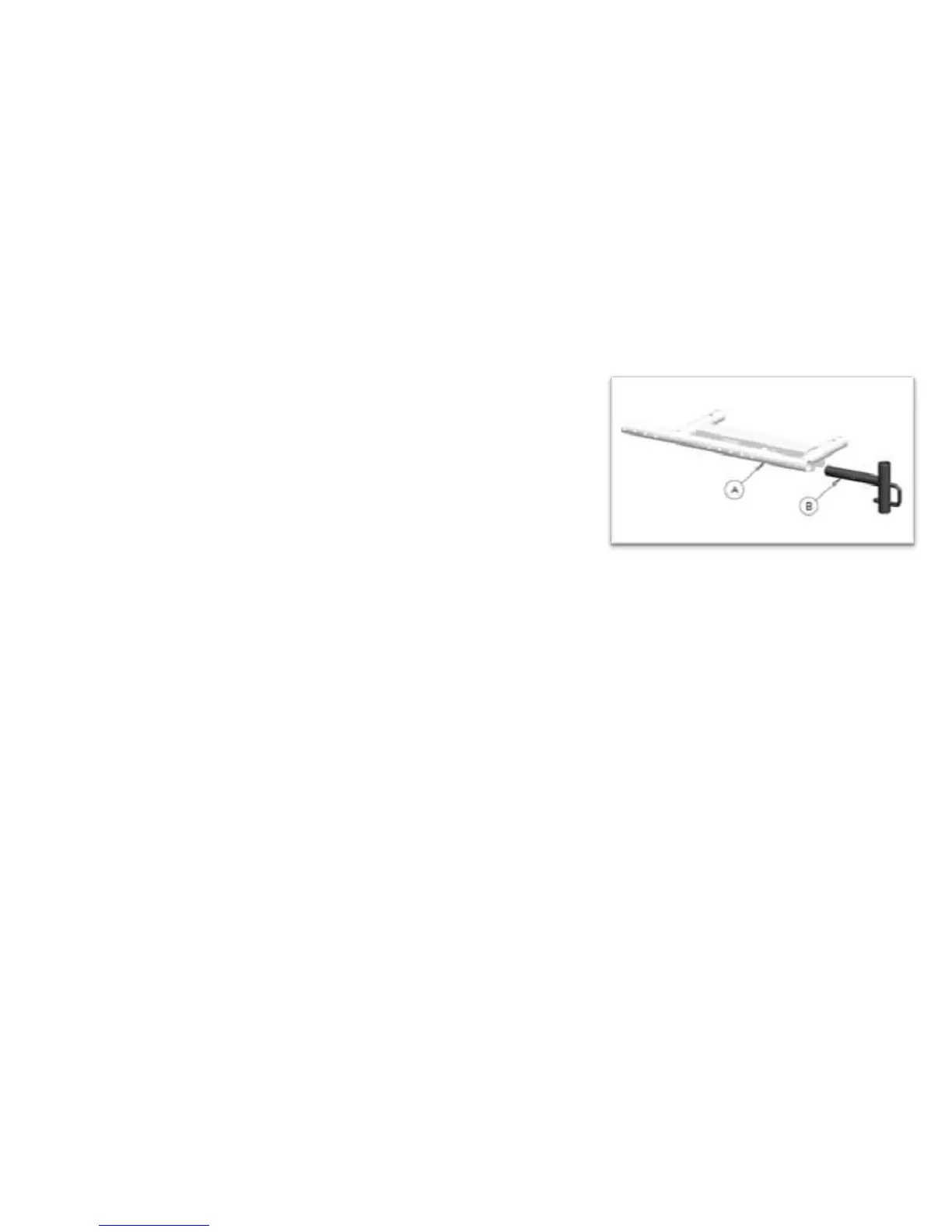

1. Seat Depth Adjustment Capella 45
a. To adjust, loosen and remove front screws holding the footrest hanger (B)
to the seat frame side tube (A).
b. Slide the footrest hanger (B) to the desired location using the pre-set holes
to achieve the required seat depth.
c. The hangers used come in two sizes. Short 15”-19” and Long 20”-23”.
Important Note – The adjustment on each side of the chair should be exactly
equal.
CUSHION INSTALLATION
a. Place cushion on seat pan with hook material side down. The pommel of
the cushion should be in front.
b. Press cushion into place.
