BACKREST AND STROLLER HANDLE

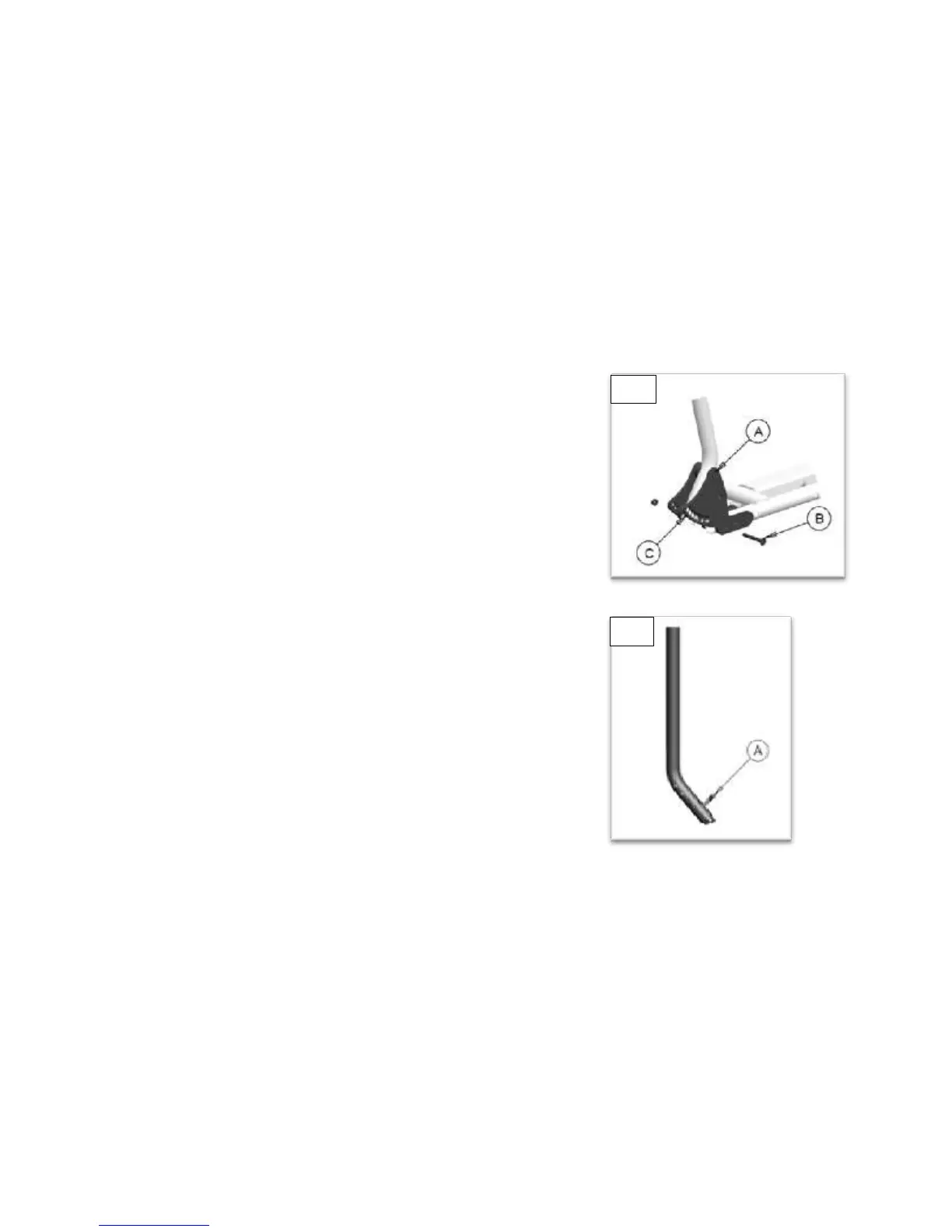

1. Backrest Angle Adjustment
a. Loosen rear bolt (A).
b. Loosen and remove angle adjustment bolt (B).
c. Set backrest at desired angle using pre-set holes in plate. Each hole is at 7
degrees with the second from the end as the 90 degrees position.
d. Replace and tighten the angle adjustment bolt (B).
e. Tighten rear bolt (A).
f. Repeat on other side of chair.
Important Note – The adjustment on each side of the chair should be exactly
equal.
2. Flip-Down Back Rest Function
a. To fold the back down, pull-up the back release pins (A) and push the
backrest forward.
b. b. To lock it back in position, push the release pins (A) sideways to allow
them to reposition and lift the backrest firmly until it locks in its original
position.
