REAR WHEEL AXLE MOUNT

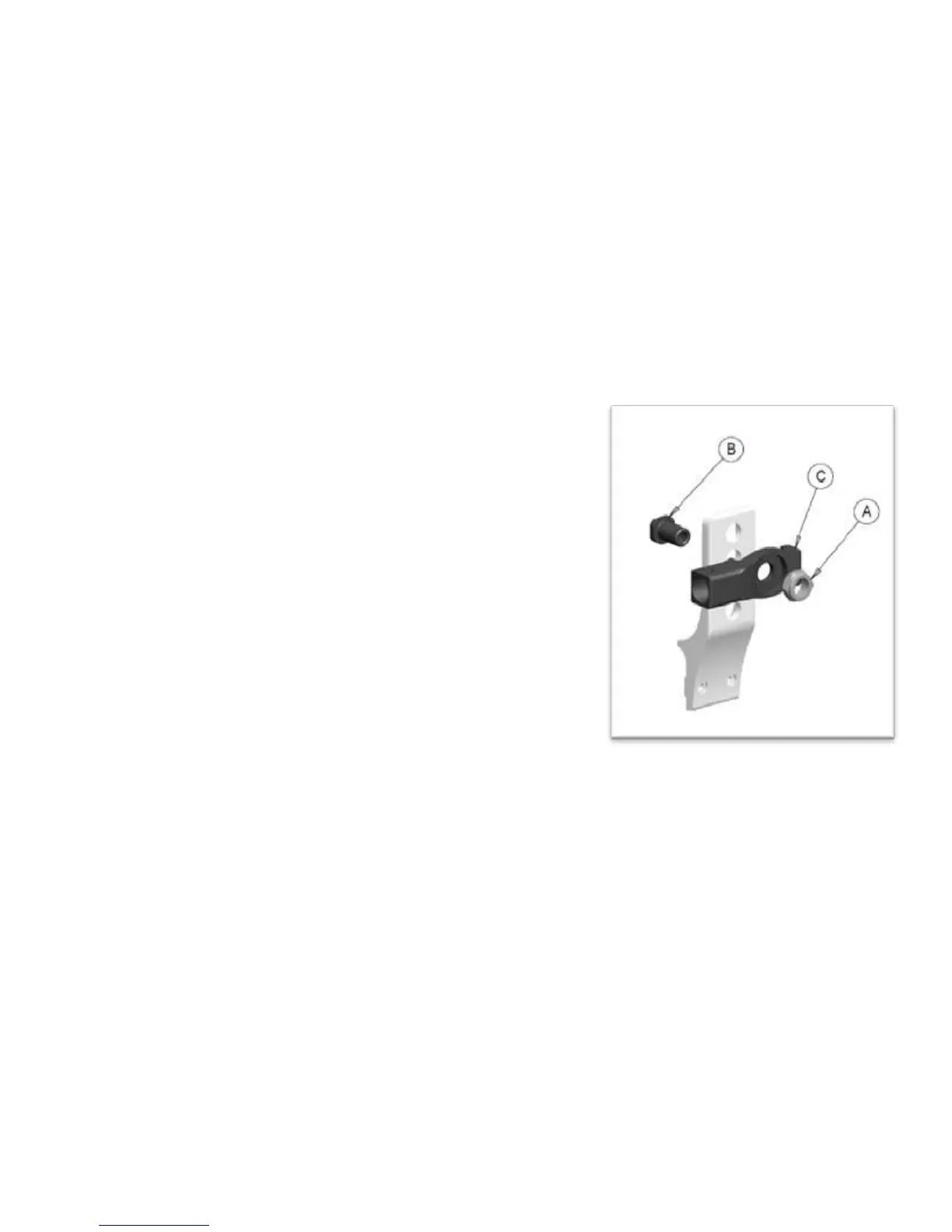

1. Axle Height Adjustment
a. Loosen and remove lock-nut (A) from axle receiver (B).
b. Set ant-tip bracket (C) at desired height using pre-set holes in rear axle
mounting bracket.
c. Replace and tighten lock-nut.
Important Note – The adjustment on each side of the chair should be exactly
equal.
Important Note – The adjustment should be done by an authorized dealer only.
Note – Use a torque setting of 120 in-lbs when tightening the lock-nut.
