DUAL SWINGAWAY AND HANGER
1. Installation

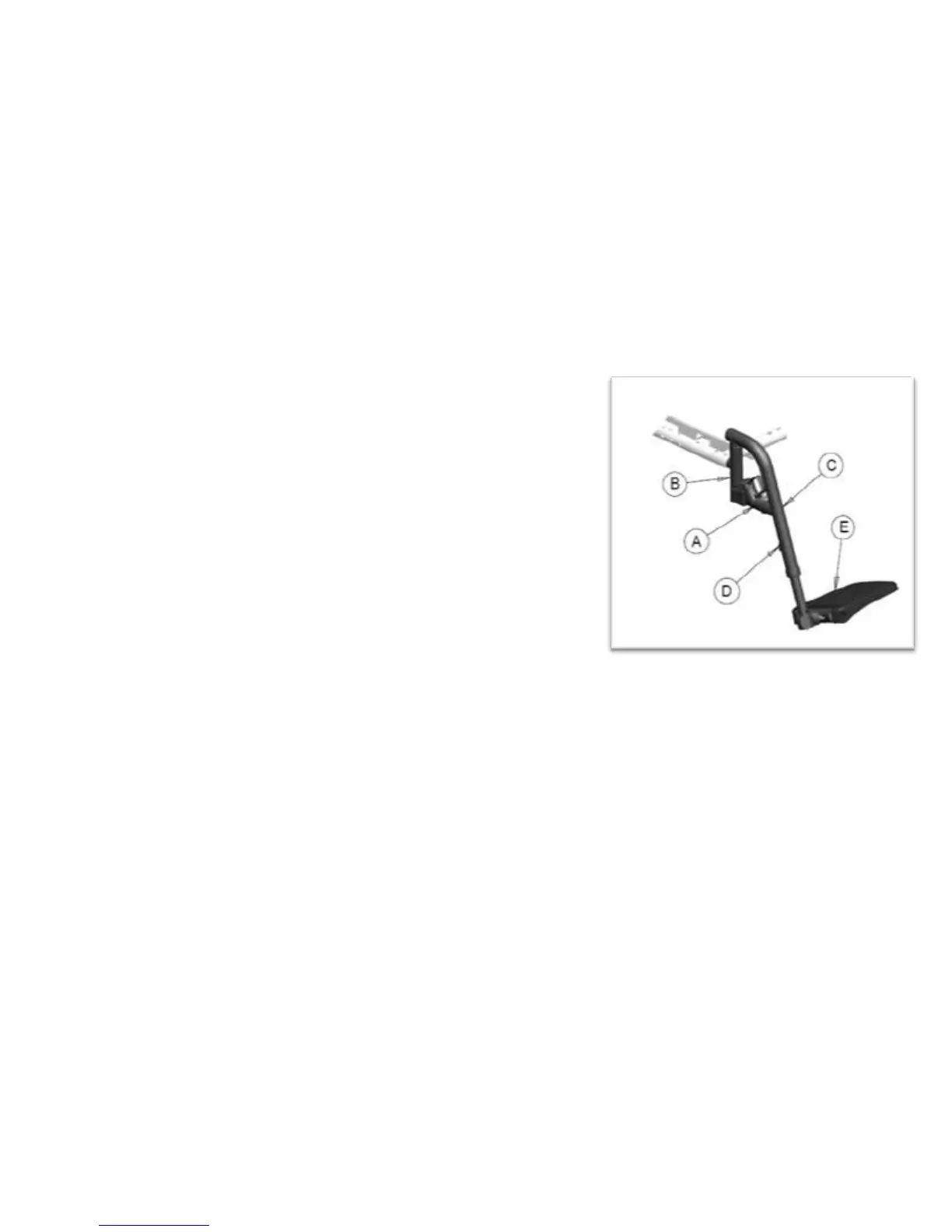

a. Position the center pivot of the swingaway footrest (C) onto the hanger (B)
with the swingaway footrest facing out from the wheelchair.
b. Swing the footrest inwards such that the swingaway latch (A) ‘clicks’ into
place onto the hanger block.
2. Removal
a. To remove the footrest, pull up onto the handle latch (A) releasing the
mechanism from the hanger and swing the footrest outwards or inwards.
b. Pull up on the footrest to remove from wheelchair.
3. Height Adjustment
a. Remove bolt (D) which holds the extension tube in place.
b. Slide the footrest extension tube up or down to the desired height. Note a
minimum of 2” should be kept between the footplate (E) and the floor.
c. Re-install and tighten the bolt (D) in place.
