WC CAPELLA ENGLISH CDN 540 REV10.DOCX 23 CAPELLA

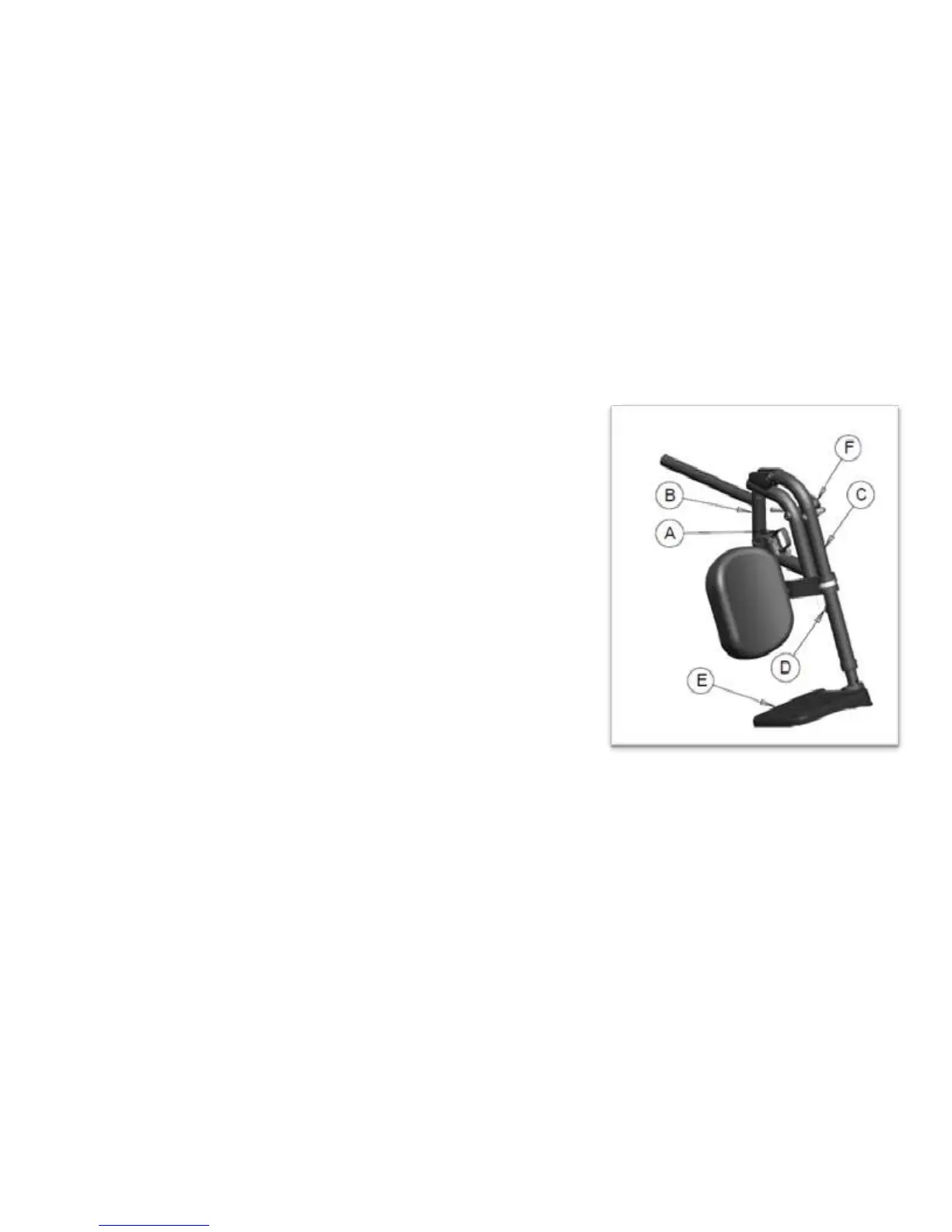

DUAL ELEVATING LEGREST AND HANGER
1. Installation
a. Position the center pivot of the elevating legrest (C) onto the hanger (B)
with the elevating footrest facing out from the wheelchair.
b. Swing the elevating legrest inwards such that the swingaway latch (A)
‘clicks’ into place onto the hanger block.
2. Removal
a. To remove the elevating legrest, pull up onto the handle latch (A) releasing
the mechanism from the hanger and swing the elevating legrest outwards
or inwards.
b. Pull up on legrest to remove from wheelchair.
3. Height Adjustment
a. Remove bolt (D) which holds the extension tube in place.
b. Slide the footrest extension tube up or down to the desired height. Note a
minimum of 2” should be kept between the footplate (E) and the floor.
c. Re-install and tighten the bolt (D) in place.
4. Elevation Adjustment
a. Turn the release knob (F) counter-clock wise to disengage the ball pin.
b. Move the legrest up or down to desired height. Listen for the “clicks” to
verify position.
c. Turn the release knob clock wise to lock the position.
