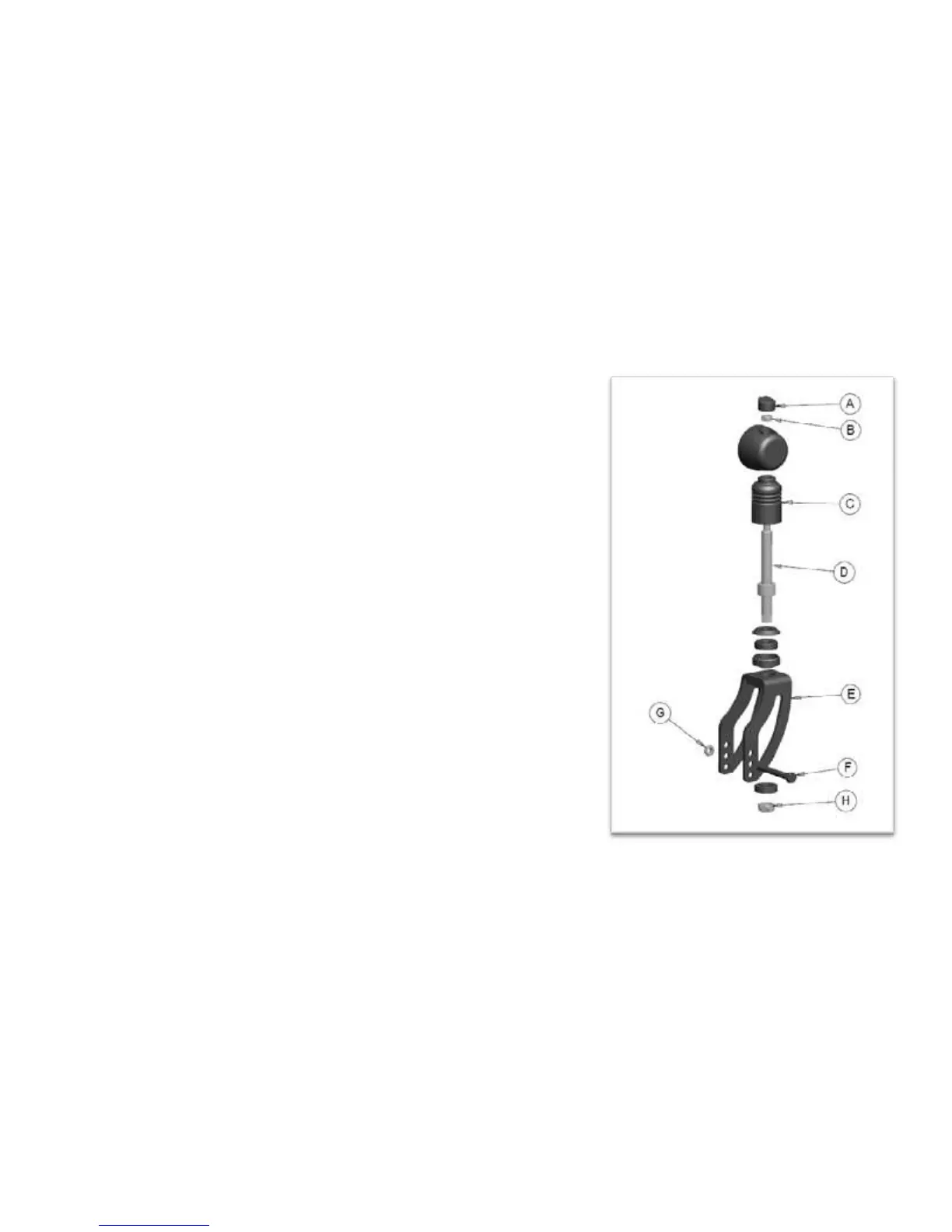

CASTER AND FORK ASSEMBLY
1. Replacing/ Installation Caster Fork Unit
a. Remove dust cover (A) from caster housing. Gently pry off cover using a
back and forth motion.
b. Remove nut (B) from the caster stem (D).
c. Remove stem (D) and fork as one unit from caster housing.
d. Change stem length (D) and spacer (C) if required.
e. Remove nut (H) to change fork (E) if required.
f. Reverse order to assemble back in place.
2. Caster Wheel Height Adjustment
a. Loosen and remove nut (G) from bolt (F).
b. Set axle at desired height using pre-set holes in the fork.
c. Replace and tighten nut (G).
d. Repeat on other side.
