WC CAPELLA ENGLISH CDN 540 REV10.DOCX 25 CAPELLA

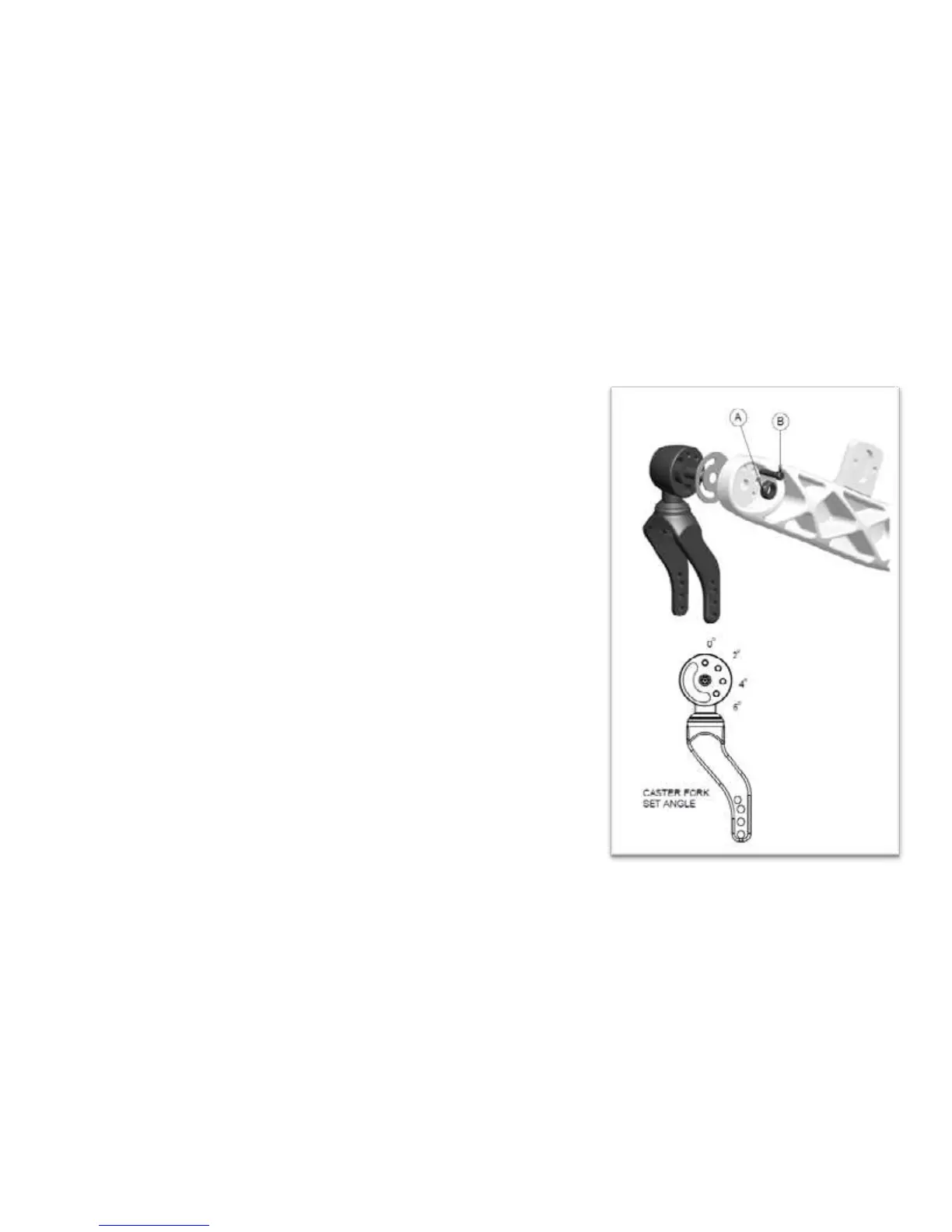

3. Caster Fork Angle Adjustment
a. Remove cap screw (B) from the hole in the main side rail casting.
b. Loosen main lock-nut (A) from stem in caster housing.
c. Rotate caster fork housing to desired angle by matching the holes.
d. Fork can be set at 0, 2, 4 or 6 degrees (See Fig.)
e. Replace cap screw (B) into matching hole and tighten.
f. Re-torque lock-nut (A) to 50 in-lbs to secure.
