WHEEL LOCKS

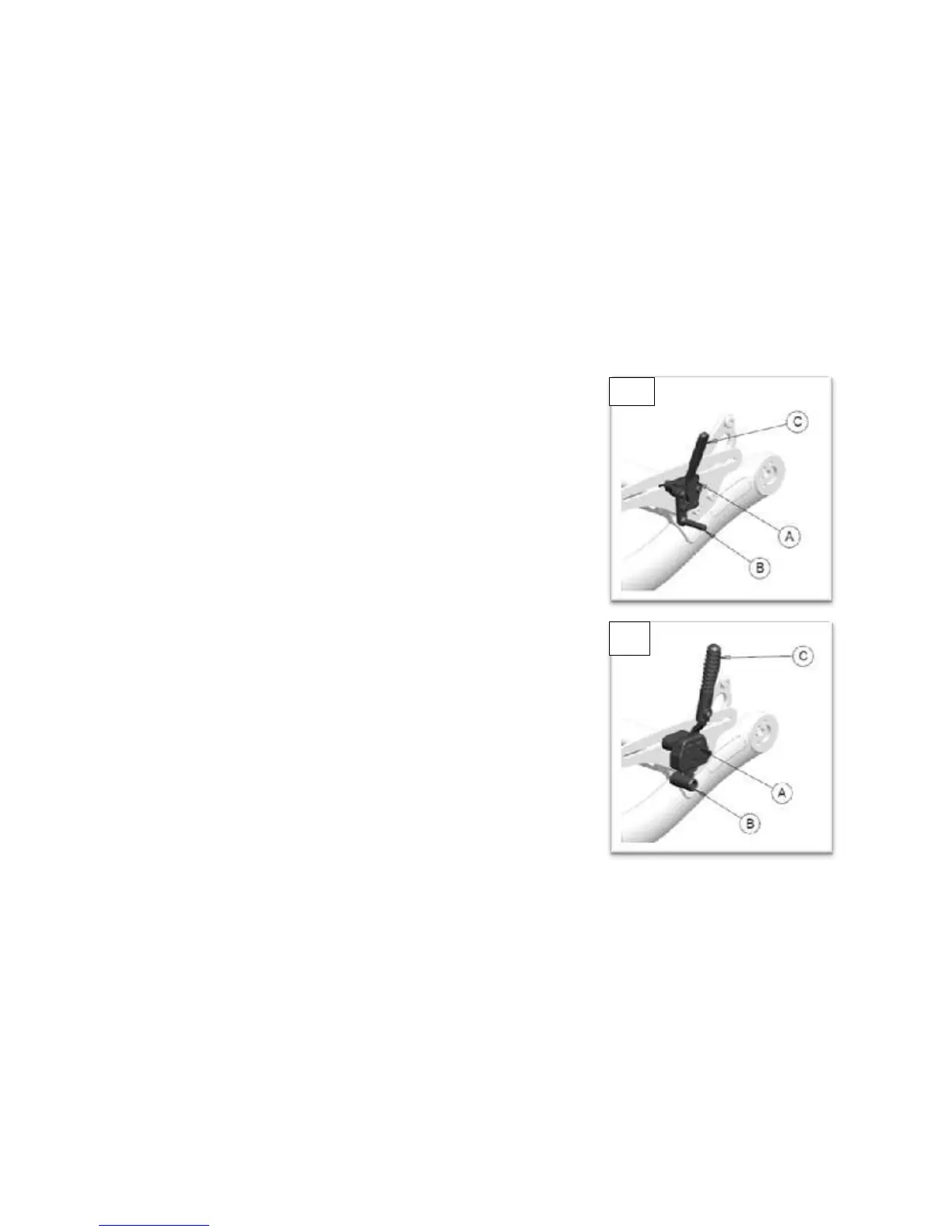

1. Manual Wheel Lock Function and Adjustment
a. To adjust, loosen the screws (A) but do not attempt to remove the screws.
b. Slide the assembly (in the activated position) towards the rear wheel tire
until the brake shoe (B) embeds into the tire preventing the wheel from
turning.
c. Tighten screws.
d. To engage wheel lock, push handle (C) forward for the Push to Lock or pull
the handle rearward for the Pull to lock version until the mechanism locks in
place.
2. Berner Wheel Lock Function and Adjustment
a. To adjust, loosen the screws (A) but do not attempt to remove the screws.
b. Slide the assembly (in the activated position) towards the rear wheel tire
until the brake shoe (B) embeds into the tire preventing the wheel from
turning.
c. Tighten screws.
d. To engage wheel lock, push handle (C) forward for the Push to Lock or pull
the handle rearward for the Pull to lock version until the mechanism locks in
place.
1
2
