TILT MECHANISM
The tilt mechanism positively locks the chair in place from 0° to 45°.

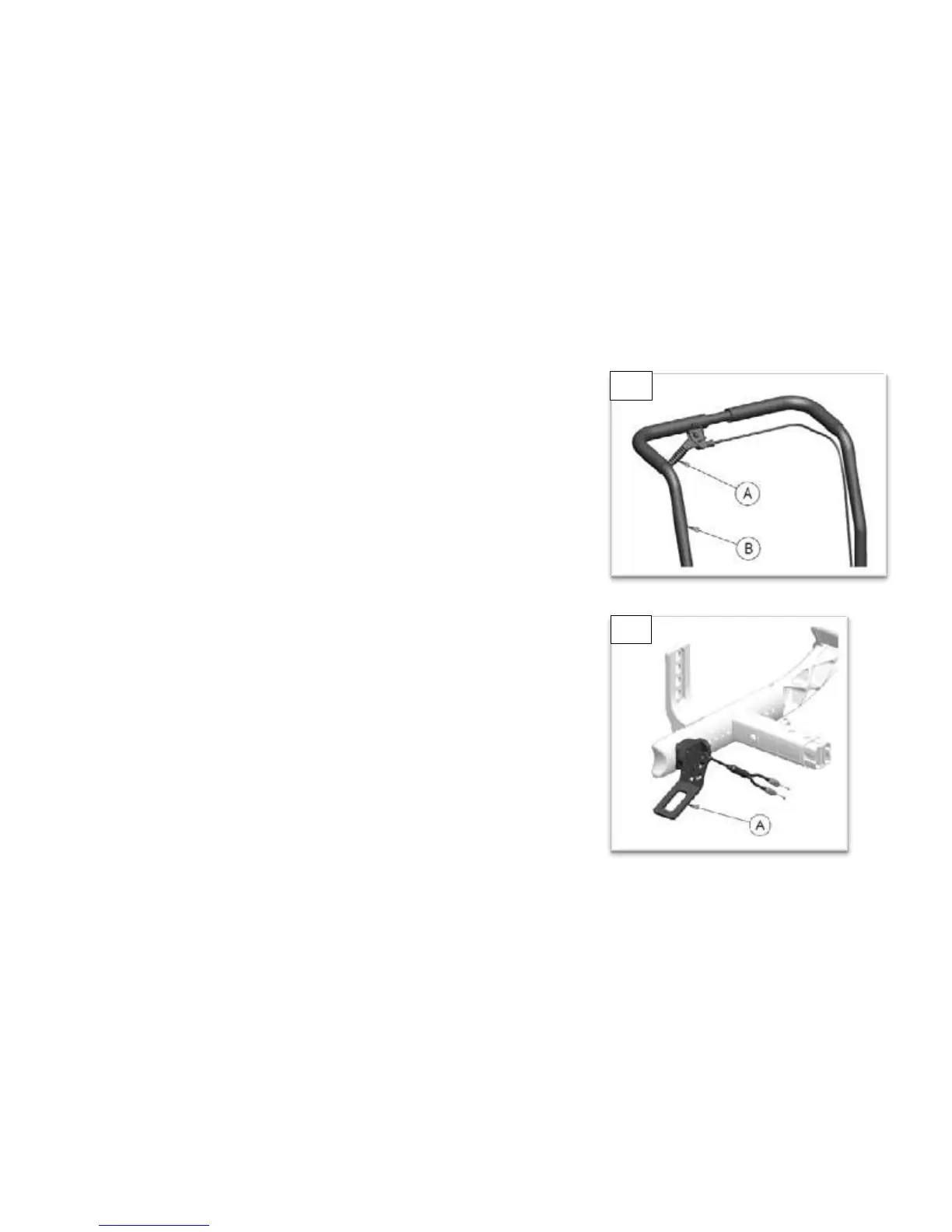

1. Trigger Handle Tilt Function
a. Depressing the trigger handle (A) will disengage gas cylinder.
b. Tilt the chair (B) to the desired angle and release the trigger handle.
c. A locking collar can be used on the gas cylinder rod to limit the tilt angle if
required.
2. Attendant Foot Release Tilt Function
a. Depressing attendant foot pedal (A) will disengage tilt gas cylinder.
b. Tilt the chair to the desired angle and release the foot pedal.
c. A locking collar can be used on the gas cylinder rod to limit the tilt angle if
required.
1
2
