User module »DP-HR-U-CON-Fiber-MC4«
135 · Target and user modules (DP-HR-U)
Enable the Generic HID mode (see page 175 f.) if you want to connect another USB
input device. In this mode, data of the USB input device remains unaltered when
transmitted to the active target module.
USB Devices: Connect any USB devices to these interfaces. The data stream of the
connected USB device is transmitted to a compatible target module with up to 16
Mbit/s.
LED Out: If you purchased and added the TradeSwitch feature to the matrix switch, con-
nect the optional TS-LED2 here (order number A6100041).
DisplayPort Out 3: Connect the third console monitor.
DisplayPort Out 4: Connect the fourth console monitor.

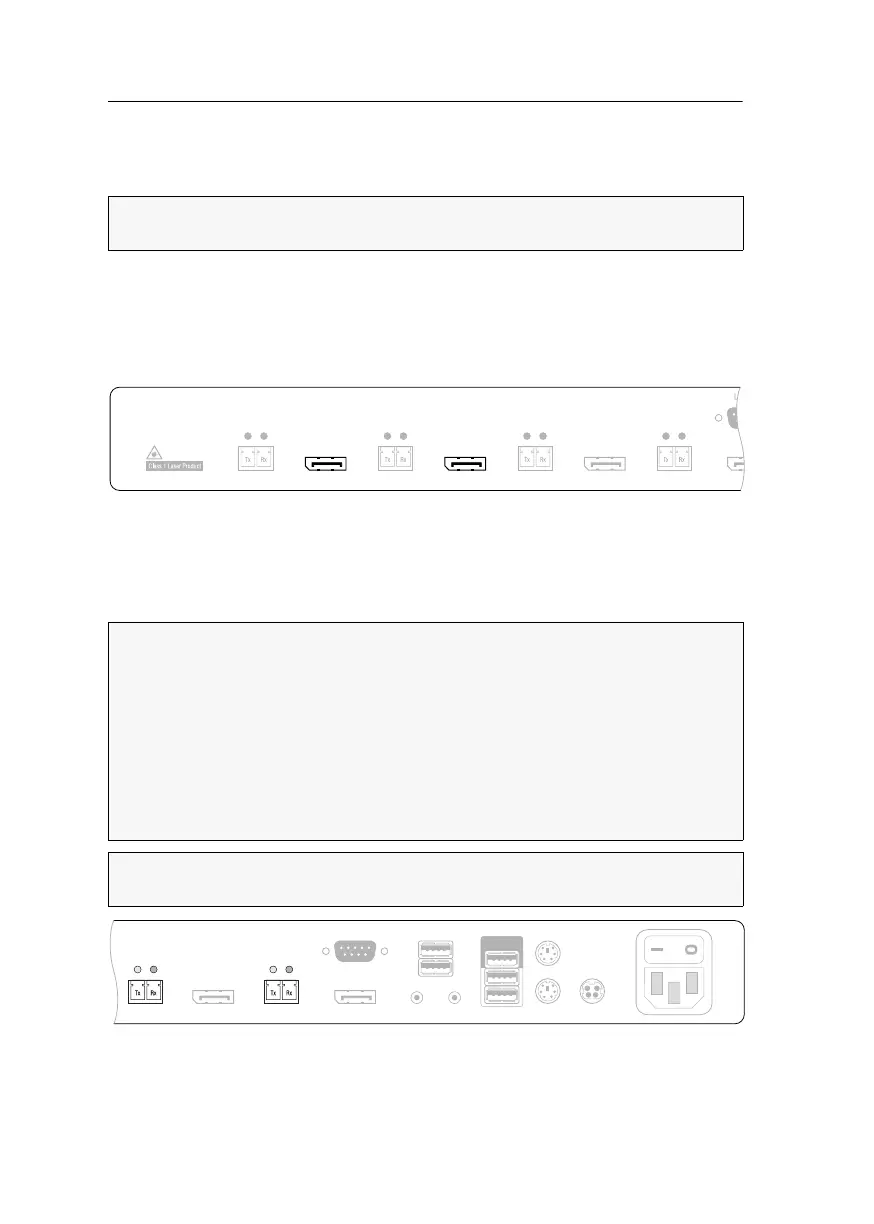

Connection to the matrix switch
IMPORTANT:
With enabled Generic HID mode, it is not possible to operate the OSD
with a keyboard connected to the
Generic socket.
IMPORTANT:
The devices use components with laser technology which comply
with laser class
1.
They meet the requirements in accordance to EN 60825-1:2014 as well as
U.S. CFR 1040.10 and 1040.11.
Mind the following instructions when dealing with laser beams:
Avoid direct eye exposure to beam on page 3
Always connect optical connections or cover them with protection caps on page 3
Only use G&D certified transmission modules on page 3
NOTE:
Use optical fibres with LC plugs to connect the devices. The cables are
available as accessories.
DisplayPort Out 4 DisplayPort Out 3 DisplayPort Out 2 Display
Transmission 4 Transmission 3 Transmission 2 Transmission 1
Transmission 1Transmission 2
Keyb./Mouse
Generic
Main Power
Red. PowerMicro In
Speaker
Mouse
Keyb.
DisplayPort Out 2
LED Out
DisplayPort Out 1
USB Devices
