G&D DP-HR-CPU User Manual

User module »DP-HR-U-CON-Fiber-MC4«
Target and user modules (DP-HR-U) · 136
Transmission 1|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Rx interface of a Dynamic Port provided at the matrix
switch.
Transmission 1|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Tx interface of the same Dynamic Port provided at the
matrix switch.
Transmission 2|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Rx interface of another Dynamic Port provided at the
matrix switch.
Transmission 2|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Tx interface of the same Dynamic Port provided at the
matrix switch.
Transmission 3|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Rx interface of a Dynamic Port provided at the matrix
switch.
Transmission 3|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Tx interface of the same Dynamic Port provided at the
matrix switch.
Transmission 4|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Rx interface of another Dynamic Port provided at the
matrix switch.
Transmission 4|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Tx interface of the same Dynamic Port provided at the
matrix switch.
Power supply
Main Power: Connect the supplied power cable.
Insert the cable’s Schuko plug in a power socket.
Red. Power: Connect the connection cable of a compatible power pack to provide the
user module with a second, redundant power supply.

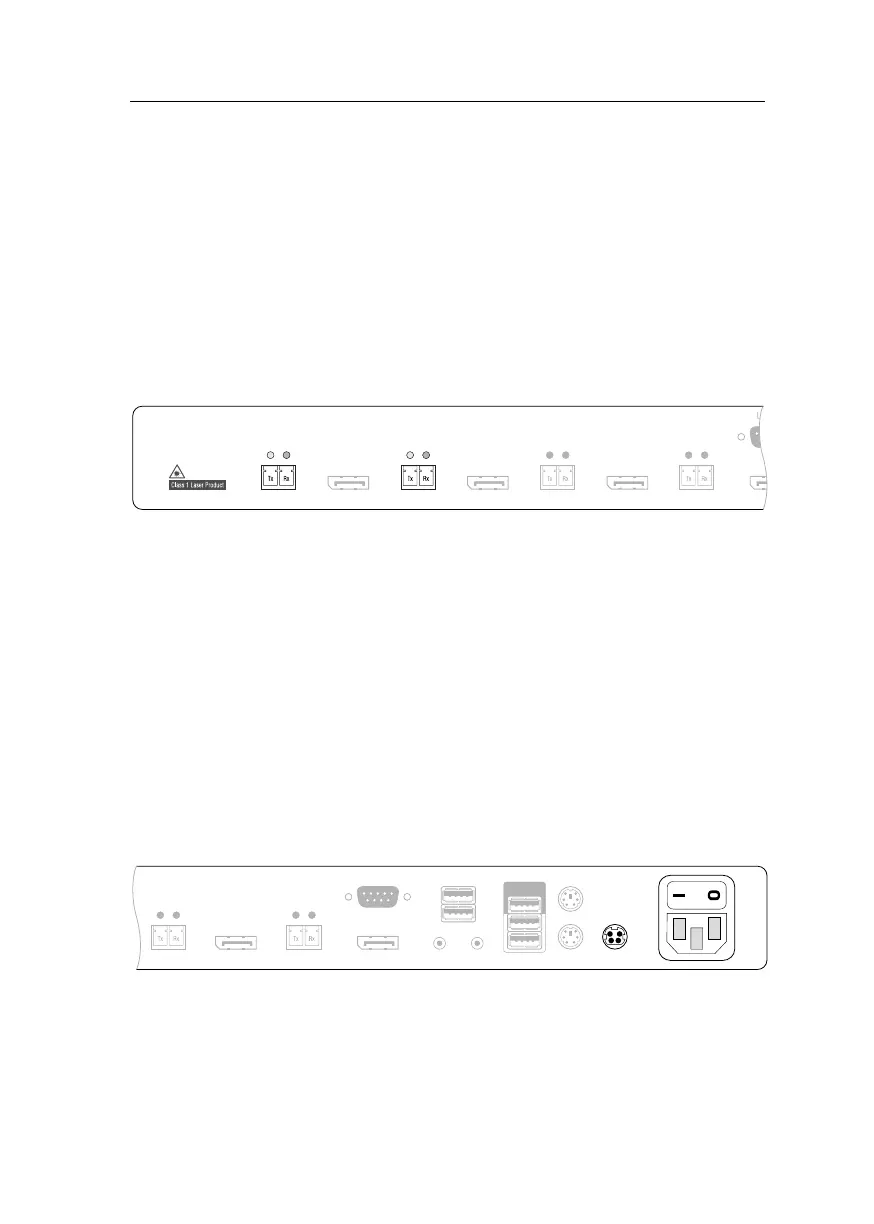

Transmission 4 Transmission 3
DisplayPort Out 4 DisplayPort Out 3 DisplayPort Out 2 Display
Transmission 2 Transmission 1
Keyb./Mouse
Generic
Main Power
Red. PowerMicro In
Speaker
Mouse
Keyb.
DisplayPort Out 2
LED Out
DisplayPort Out 1
Transmission 2 Transmission 1
USB Devices
